Tracks 225-237

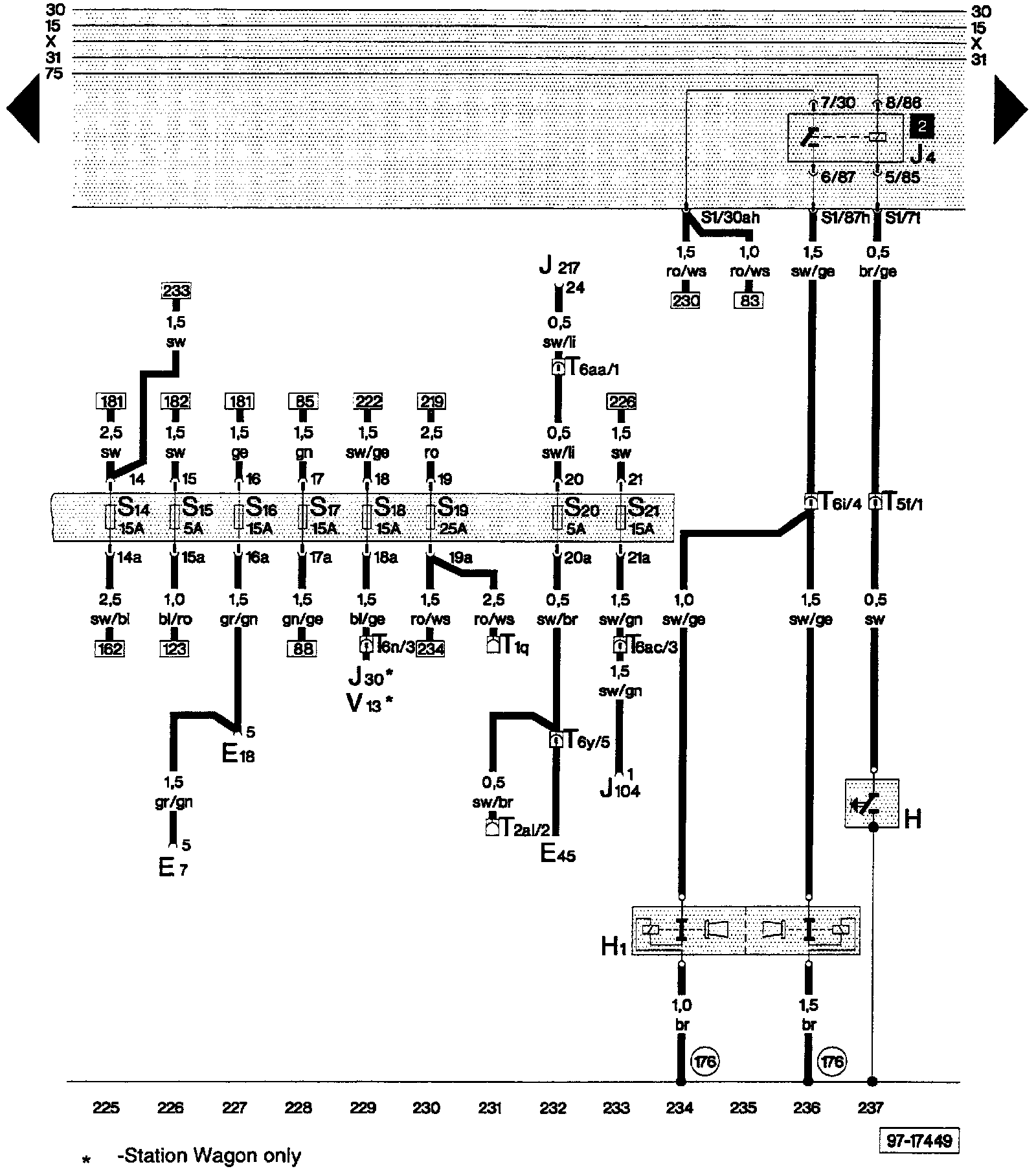

Diagrams By Track NumberFuse Panel, Dual Horns - Track 225-237:
Fuse colors
30 A - green
25 A - white
20 A - yellow
20 A - blue
15 A - red
5 A - beige
Track Continuations
Previous Diagram Tracks 214-224
Next Diagram Tracks 238-251
To Refer to
83 Tracks 79-90 Tracks 79-90
85 Tracks 79-90 Tracks 79-90
88 Tracks 79-90 Tracks 79-90
123 Tracks 120-129 Tracks 120-129
162 Tracks 159-172 Tracks 159-172
181 Tracks 173-186 Tracks 173-186
182 Tracks 173-186 Tracks 173-186
219 Tracks 214-224 Tracks 214-224
222 Tracks 214-224 Tracks 214-224
COMPONENTS
J104 - ABS Control Module (W/EDL)
E45 - Cruise Control Switch
H1 - Dual Horns
J4 - Dual Horn Relay
E7 - Fog Light Switch
S14 - Fuse
S15 - Fuse
S16 - Fuse
S17 - Fuse
S18 - Fuse
S19 - Fuse
S20 - Fuse
S21 - Fuse
H - Horn Button
E18 - Rear Fog Light Switch
J30 - Rear Window Wiper/Washer Relay
V13 - Rear Window Washer Pump
J217 - Transmission Control Module (TCM)
CONNECTORS
T1q - Single Connector, red, near central electric panel
T2al - Double Connector, in footwell, left front
T5f - 5-Pin Connector, black, behind steering column switch
T6i - 6-Pin Connector, brown, connector station 2
T6n - 6-Pin Connector, gray, connector station 1
T6y - 6-Pin Connector, black, behind steering column switch cover
T6aa - 6-Pin Connector, red, connector station 1
T6ac - 6-Pin Connector, blue, connector station 1
GROUND CONNECTIONS
NOTE: Grounds connections are indicated on the diagram by a numeric code inside a circle.
176 - Ground connection, in right headlight wiring harness
