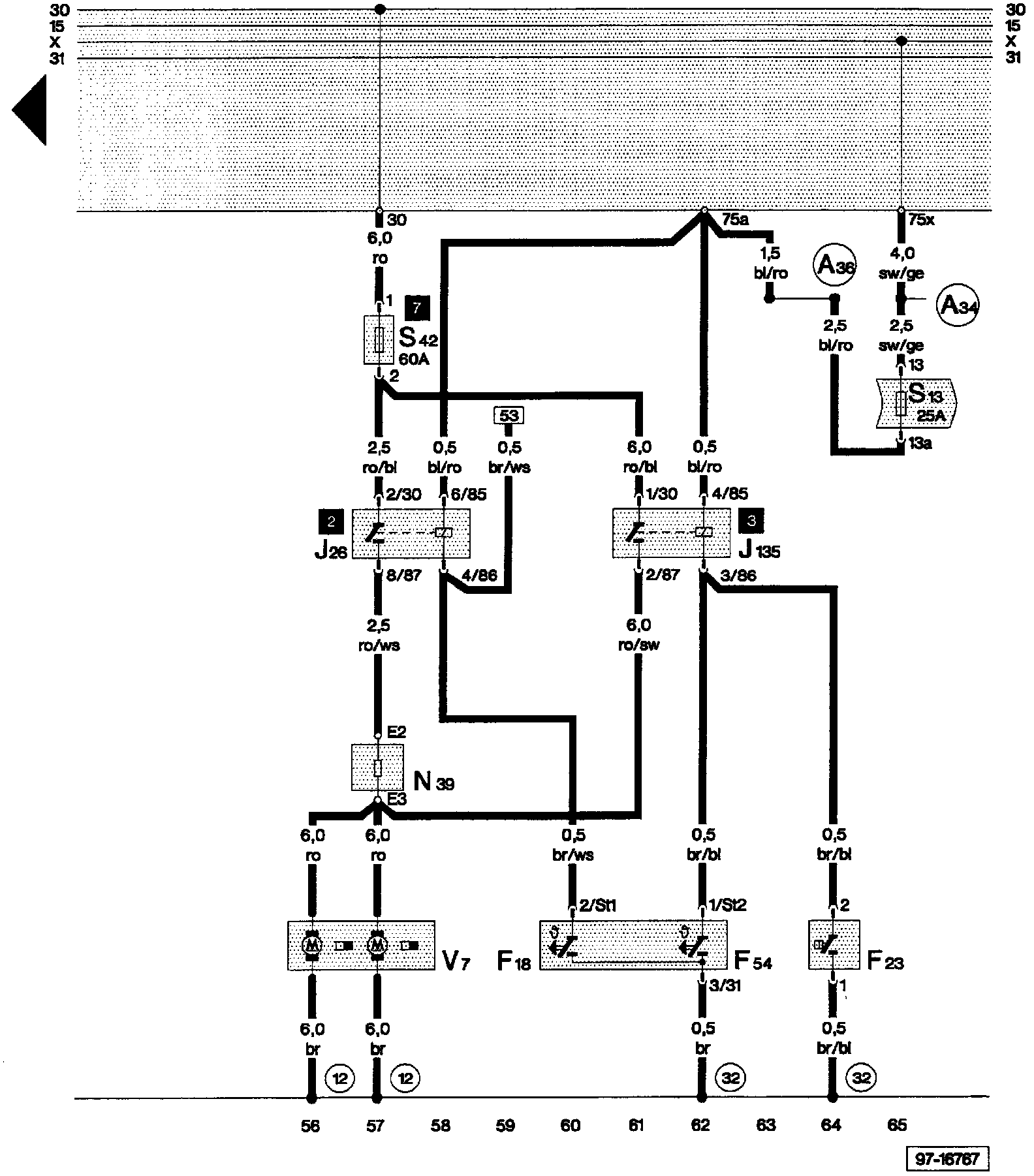

Tracks 56 - 65

Automatic Climate Control - Track 56-65:

COMPONENTS
F23 - A/C Refrigerant High Pressure Switch
F18 - Coolant Fan Control (FC) Thermal Switch
F54 - Coolant Fan Control (FC) Thermal Switch
J26 - Coolant Fan control (FC) Relay
N39 - Coolant Fan Control (FC) Series Resistance
S42 - Coolant Fan Fuse
V7 - Coolant Fan
S13 - Fuse
J135 - Third Speed Coolant Fan Control (FC) Relay


GROUND CONNECTIONS

NOTE: Grounds connections are indicated on the diagram by a numeric code inside a circle.

12 - Ground connection, in engine compartment, left
32 - Ground connection, behind instrument panel, left


HARNESS SPLICES

NOTE: Harness splices are points inside a wiring harness where two or more wires are crimped and/or soldered together. Harness splices are
indicated on the diagrams by an alphanumeric code inside a circle


A34 - Wire connection (75x), in instrument panel wiring harness
A36 - Wire connection (75a), in instrument panel wiring harness
