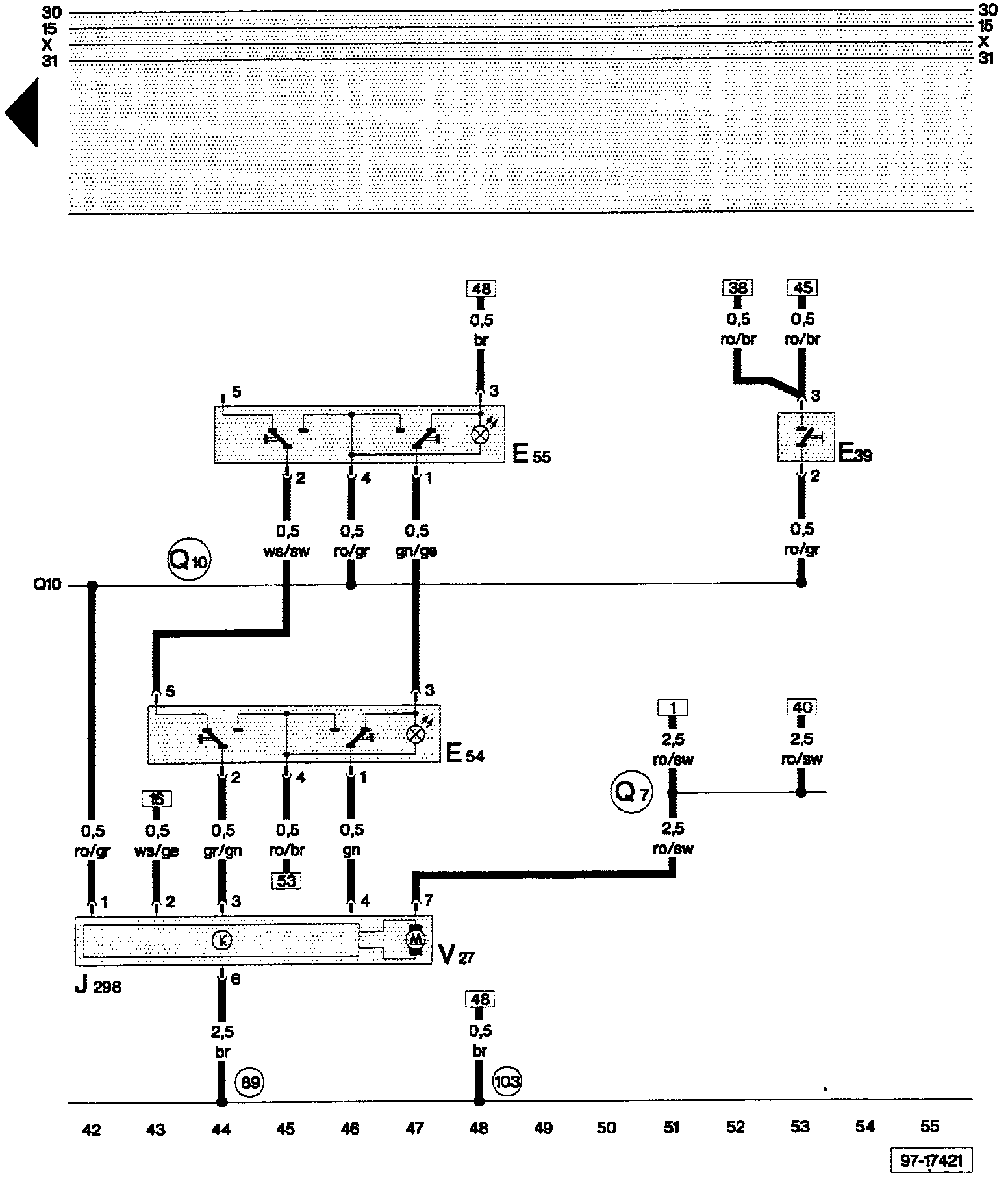

Power Windows - Track 42-55:

COMPONENTS
E54 - Right Rear Window Switch, (In PR Door)
E65 - Right Rear Window Switch, (In Console)
J298 - Right Rear Power Window Control Module
V27 - Right Rear Door Window Motor
E39 - Window Lockout Switch


GROUND CONNECTIONS

NOTE: Grounds connections are indicated on the diagram by a numeric code inside a circle.


89 - Ground connection -1-, in power window wiring harness
103 - Ground connection -2-, in power window/central locking system/door contact switch wiring harness


HARNESS SPLICES

NOTE: Harness splices are points inside a wiring harness where two or more wires are crimped and/or soldered together. Harness splices are
indicated on the diagrams by an alphanumeric code inside a circle


Q7 - Wire connection (alarm system A2), in power window/central locking system and door contact switch wiring harness
Q10 - Plus connection (87), in power window/central locking system and door contact switch wiring harness
