Home >> Audi >> 1996 >> A6 Wagon (4A5) V6-2.8L (AFC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Testing >> Diagnosis With Scan Tool, Address Word 01 >> Basic Setting >> Display Group Diagnostic Charts >> Display Group 023

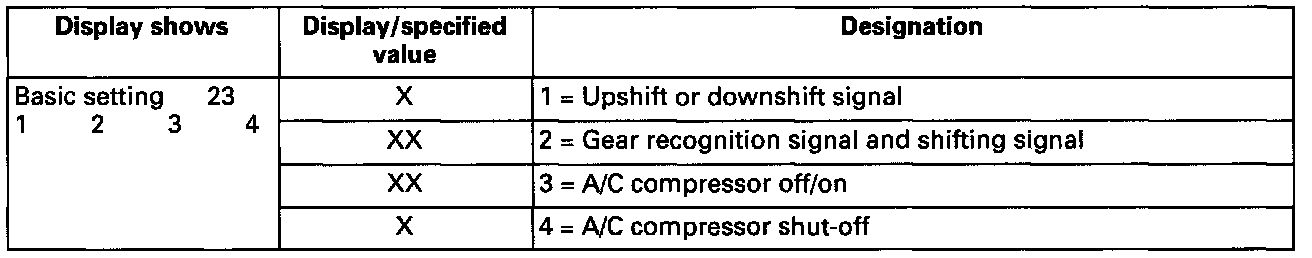

Display Group 023

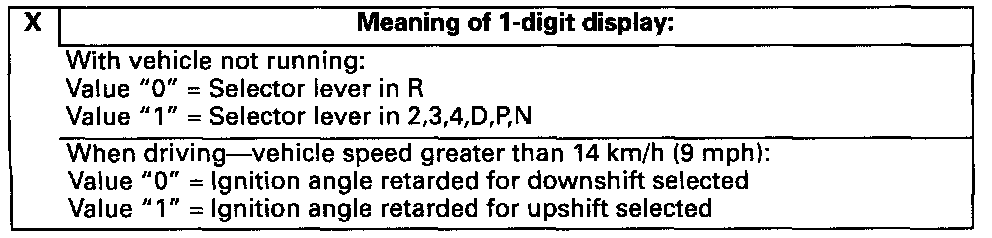

Notes on display field 1: The signal for upshift and downshift will only be output by the Transmission Control Module (TCM) for the automatic transmission 01V For vehicles without automatic transmission 01V, a "1" is always displayed.

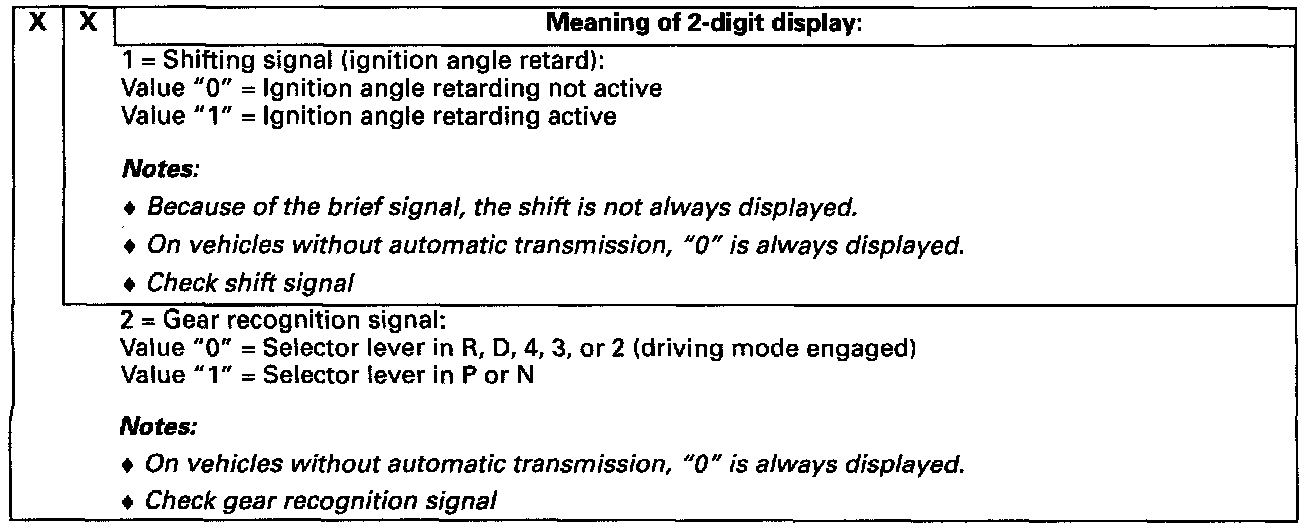

Note on display field 2:

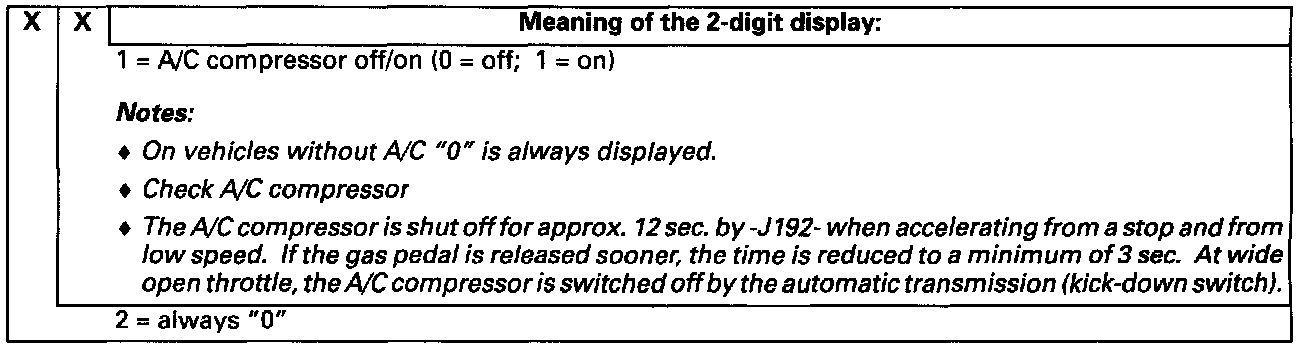

Note on display field 3:





Notes on display field 4:

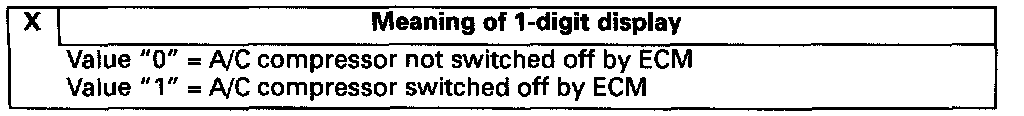

- If the A/C compressor is off display field 3; display field 4 can be used to recognize whether the compressor was switched off by the ECM.
- Meaning of the 1-digit display:
