Antitheft and Alarm Systems: Service and Repair

Interior Light Delay/Anti-Theft Alarm - Central Locking Motor, Replacement

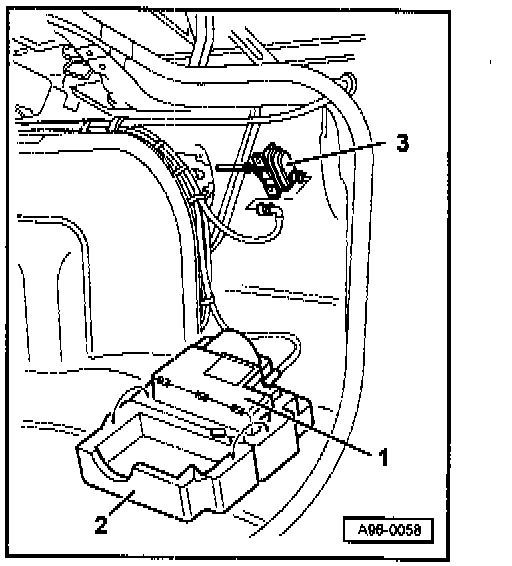

- Lift insulation -2-.
- Remove motor -1- (V94) from insulation and pull off hose.
- Fuel fill door, actuator -3-

WARNING: When all three connectors have been disconnected from motor V94, always ensure that the center 6-pin connector for the power supply is not reconnected until after the other two connectors.
