Front Power Seats, Removing and Installing

Front Power Seats, Removing And Installing







WARNING: Before starting work on seats, connect VAS 5094 airbag adapter.

NOTE:
- Slight changes may have to be made to removal and installation procedures, depending upon equipment installed in vehicle.
- For power seat, move seat fully up and back before disconnecting battery.
- Before disconnecting battery, determine radio code.

WARNING: Disconnect battery Ground (GND) strap before removing seat.

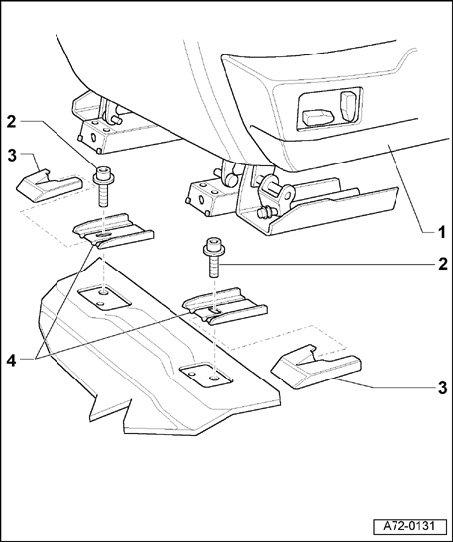

1 - Front seat
Removing:
- Remove left and right caps - 3 - by pushing down, then pulling toward front of vehicle.
- Remove bolts - 2 -.
- Carefully remove front seat - 1 - from vehicle.
2 - Bolts
- 25 Nm(18 ft.lb)
3 - Caps
4 - Seat rail
