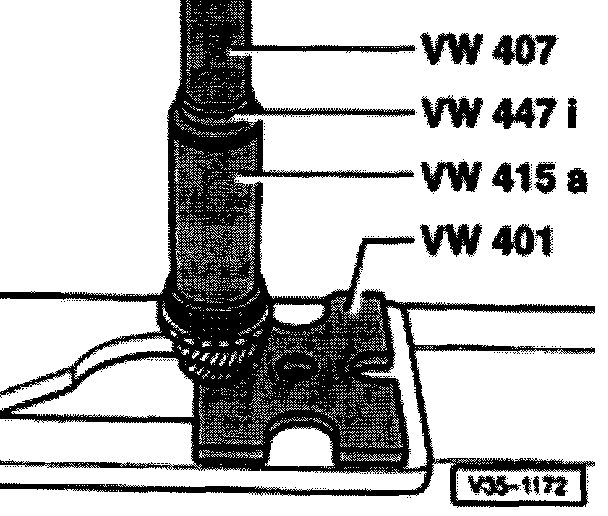

Fig. 17 Pressing on Synchronizer Hub For 3RD and 4TH Gears



Special tools and equipment

- VW401 thrust plate and VW402 thrust plate
- VW407 punch and VW408A punch
- VW415A tube and VW416B tube
- VW4471 thrust pad


Pressing on synchronizer hub for 3rd and 4th gears
