Panasonic `Concert' Radio - Coding
File this Technical Bulletin in Repair Manual No: W42 014 195 110Group: 01
Number: 97-09
Date: Sept 12, 1997
Subject:
New Panasonic Concert Radio, Coding
Model(s):
A4 with Concert Radio 1998 08.97-->
Beginning 08.97 production a new Panasonic "Concert" radio will be introduced along with a Panasonic CD changer as well.
The new "Concert" radio must be coded using either the VAG 1551 or 1552 Scan Tools for:
^ Radio configuration, if equipped with (antenna with remote power supply, CD changer or secondary display)
^ Sound system adjustment for optional Bose(R) sound system
^ Passive loudspeakers
^ Country identification
In addition, a diagnostic feature can be accessed using either the VAG 1551 or 1552 Scan Tools as well.
01-1, 01-2
01-3, 01-4
01-5, 01-6
01-7, 01-8
01-9, 01-10
01-11, 01-12
01-13, 01-14
01-15, 01-16
01-17, 01-18
01-19, 01-20
01-21, 01-22
01-23, 01-24
01-25, 01-26
01-27, 01-28
01-29, 01-30
01-31, 01-32
01-33, 01-34
01-35
01-35
The Repair Manual pages as shown are new and will be integrated with the next Repair Manual update.
Contents
Subject
Radio On Board Diagnostic (OBD)
- General Information
- Radio On Board Diagnostic, initiating program
- On Board Diagnostic (OBD) Functions
- Check DTC Memory (scan tool function 02)
- DTC Table for radio system
- Output Diagnostic Test Mode (scan tool function 03)
- Erase DTC Memory (scan tool function 05)
- End Output (scan tool function 06)
- Code Control Module (scan tool function 07)
- Radio Coding Table

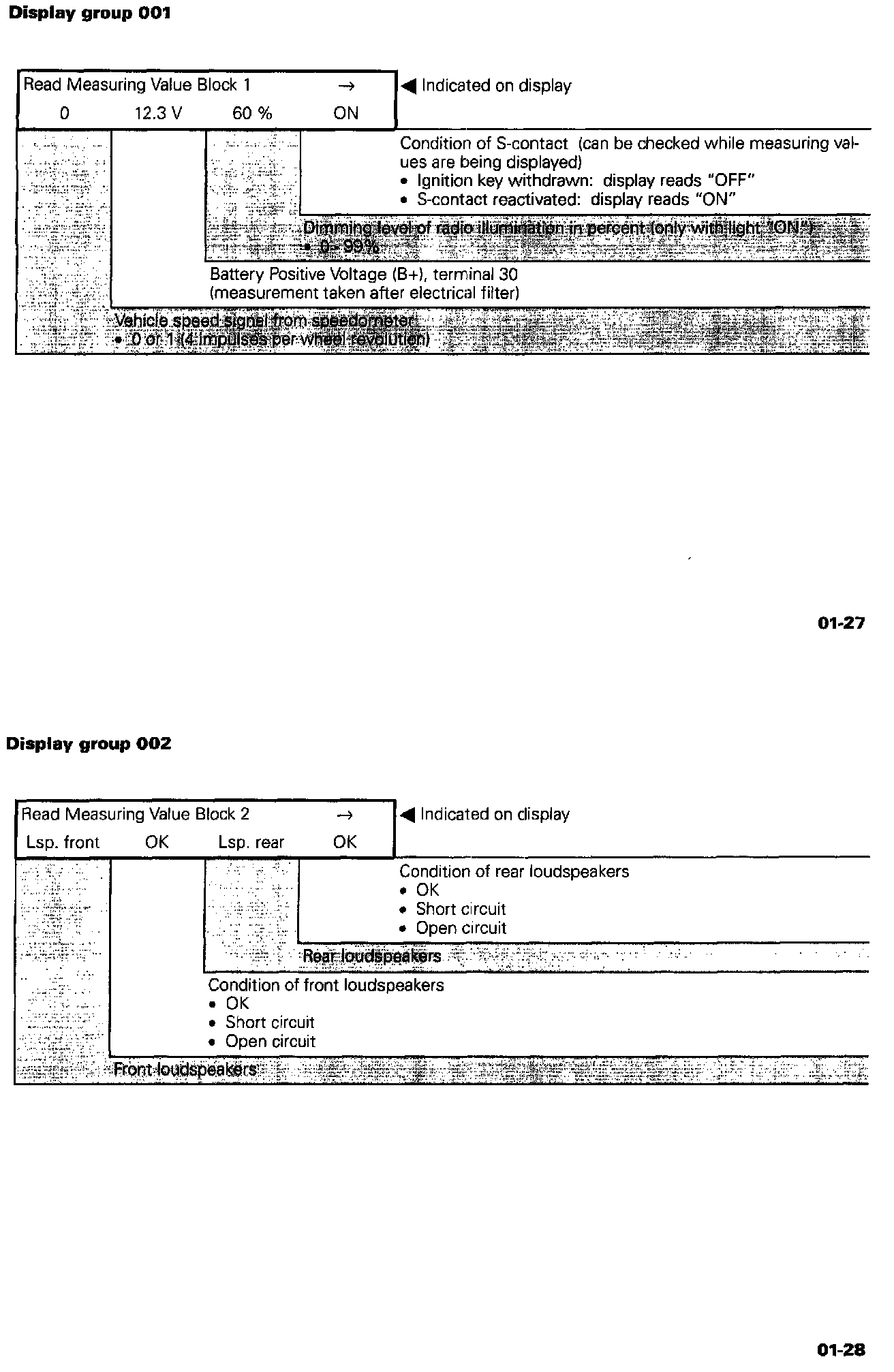

- Read Measuring Value Block (scan tool function 08)
