Test Step 15

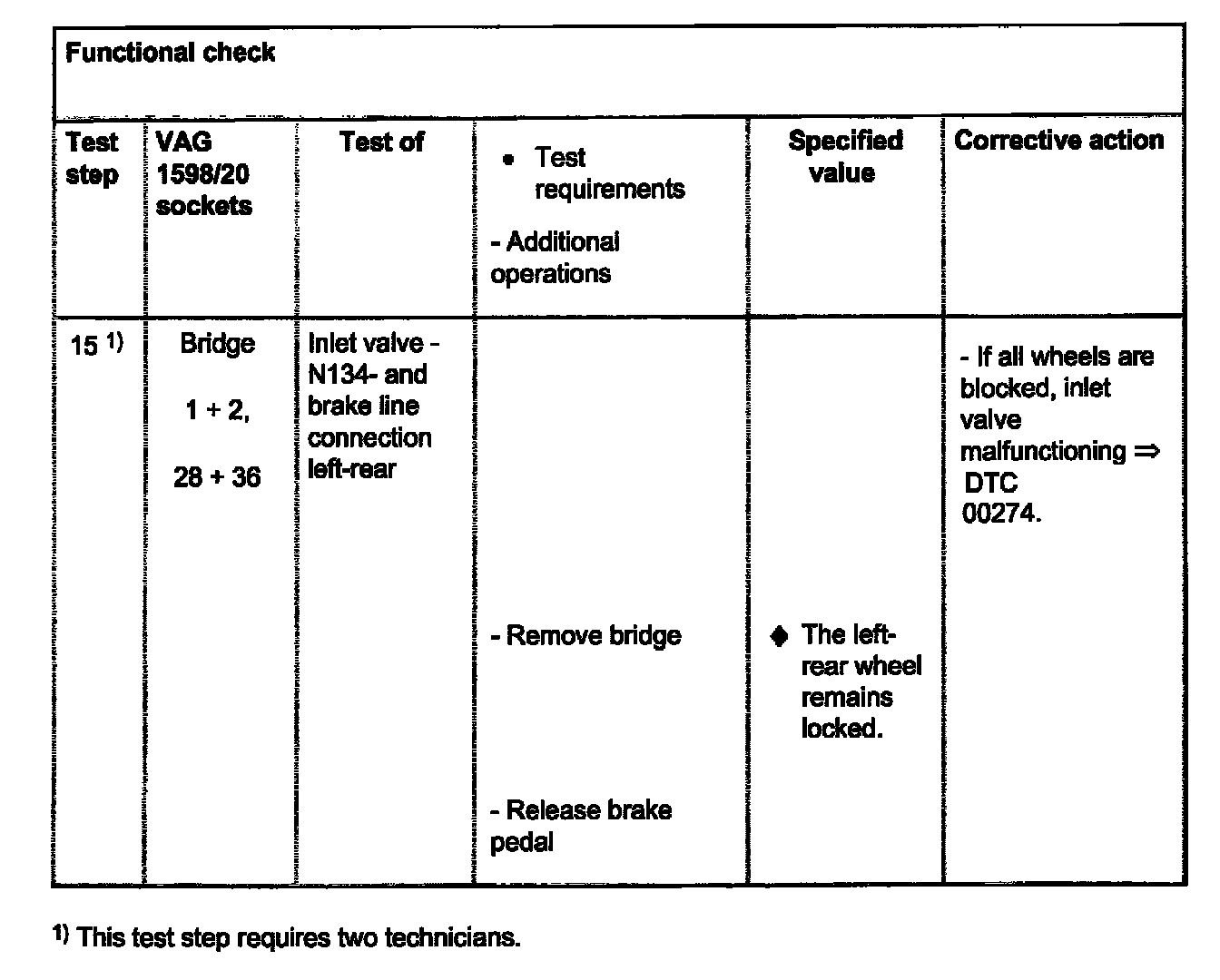

Functional Check

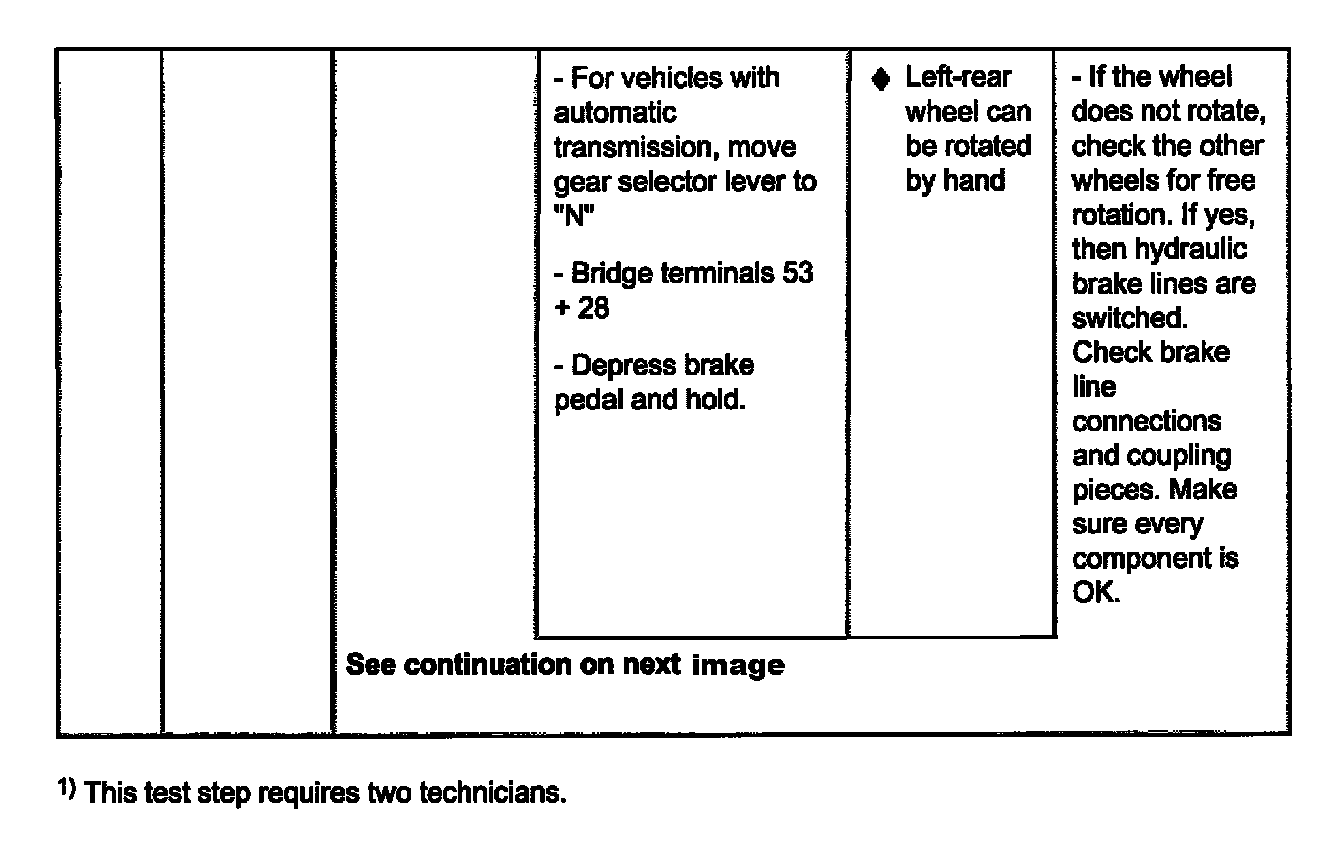

Part 1 of 3





Part 2 of 3





Part 3 of 3
1) This test step requires two technicians.
