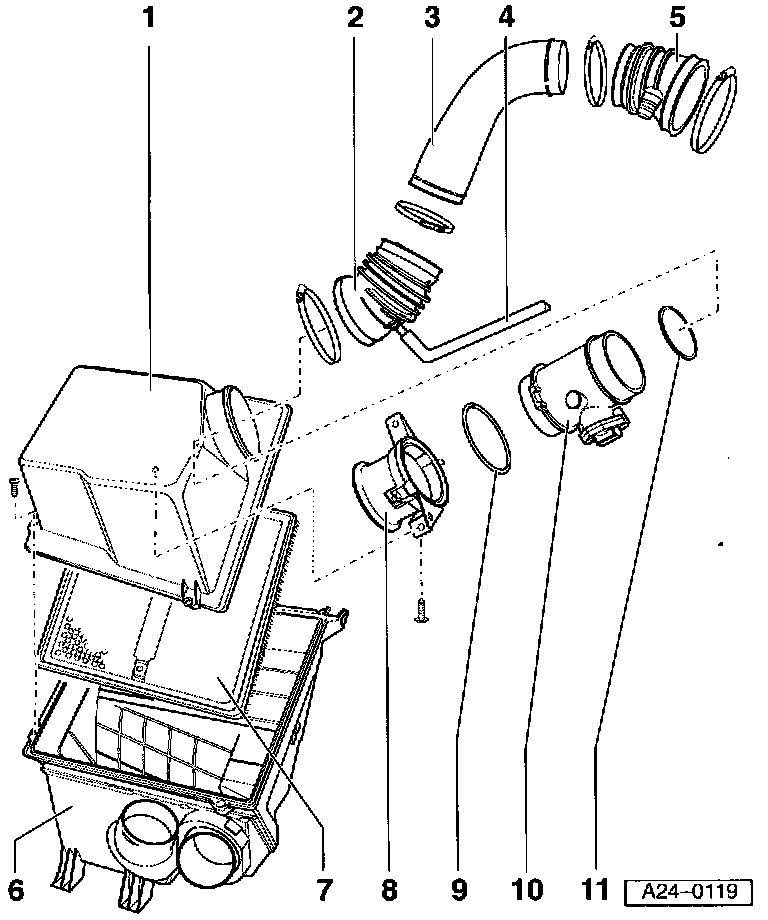

Intake Air System with Mass Air Flow (MAF) Sensor

1. Air Cleaner (ACL) housing, upper
2. Intake air connecting hose
3. Intake air duct
4. Hose for air valve for fuel injectors -N212-
5. Intake air connecting hose
6. Air Cleaner (ACL) housing, lower
7. Air Cleaner (ACL) element
8. Intake air duct
9. Seal
10. Mass Air Flow (MAF) sensor -G70-
11. Seal
