Transmission Shift Elements

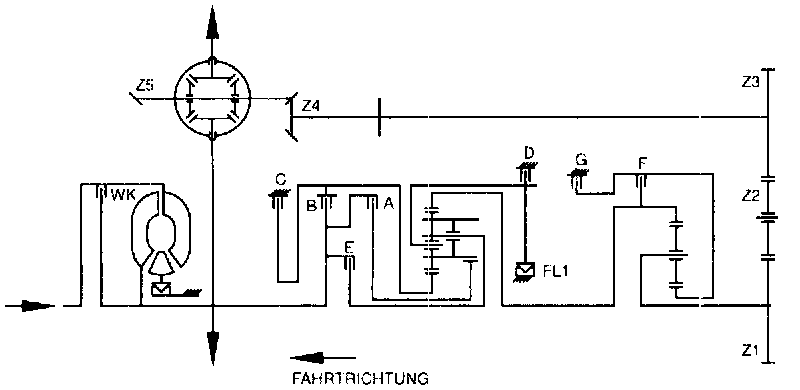

Transmission Diagram for all-wheel drive

Legend
A = Clutch A
B = Clutch B
C = Brake C
D = Brake D
E = Clutch E
F = Clutch F
G = Brake G
FL1 = Freewheel 1
WK = Converter Clutch
Z1 ... Z5 = Gears


Shift Element Positions

Solenoid Logic:

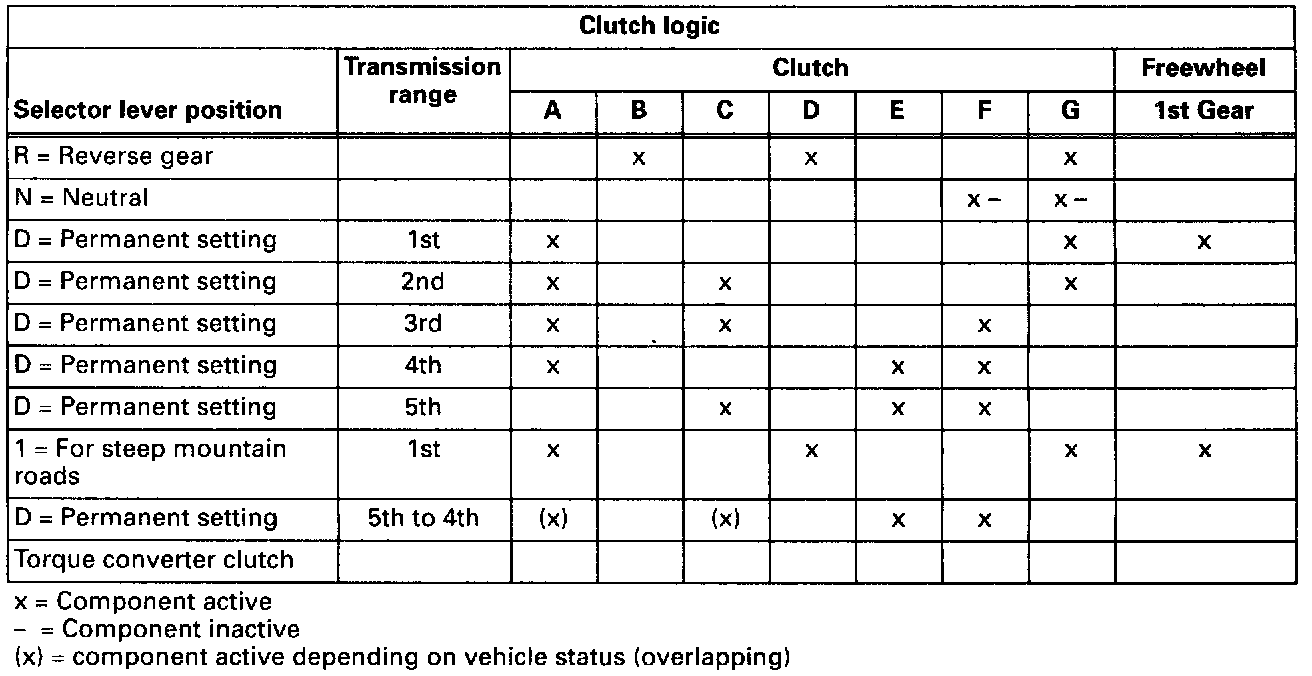

Clutch Logic:

NOTE:
^ Carry out the On Board Diagnostic program before repairing the transmission.
^ The following tables show which shifting elements are activated in the individual transmission ranges. If there are complaints regarding the performance of the transmission or recognized malfunctions, this information may be used to determine which shifting elements are not operating properly.
