Mirrors: Service and Repair

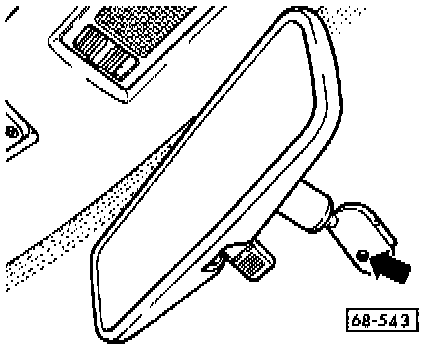

- Loosen set screw (arrow) using 2 mm hex-wrench.



Tightening torque: 2 Nm (18 in. lb)
- Remove inside rear-view mirror upward off from mounting plate.

Installing inside rear-view mirror mounting plate


CAUTION!
- Read and observe all CAUTIONS! and WARNINGS! on adhesive compound labels.
- Part numbers are listed here for reference only. Always check with your Parts department for the latest information.


Description of parts required Part number
Glass-to-metal bonding kit D 000 703


NOTES:
- Adhesive is workable at room temperature and is completely hardened after several hours.
- If reinstalling used mounting plate, first sand off old adhesive from bonding surface on mounting plate.

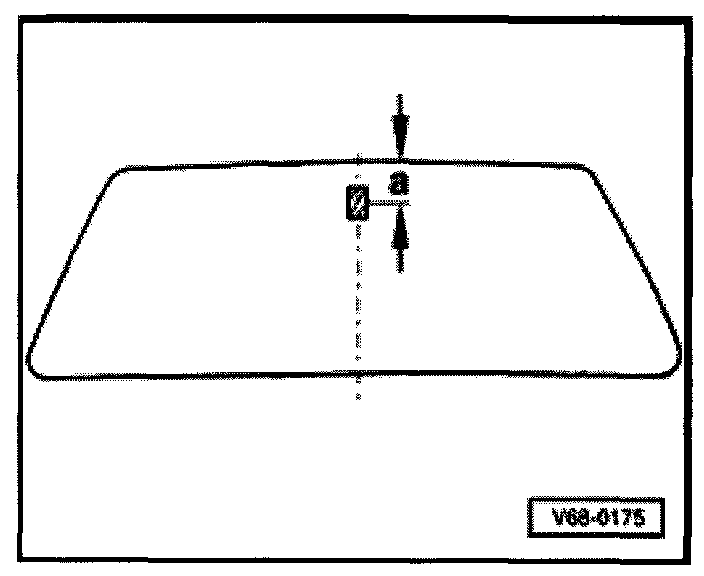

Dimension -a- for rear-view mirror: 130 mm (approx. 1-1/8 in.).




- Clean bonding surfaces on inside of windshield and on mounting plate.
- Spray on activator and wipe dry.
- Spray cleaned bonding surface on windshield again with activator and allow to dry for 1 to 2 minutes.
- Apply drop of metal adhesive to center of cleaned bonding surface of mounting plate.
- Press mounting plate to prepared bonding surface for 30 seconds.
- Attach rear-view mirror and secure with set screw.
- Remove excess activator.
