Auxiliary Relay Panel, Rear

Auxiliary Relay Panel, Rear

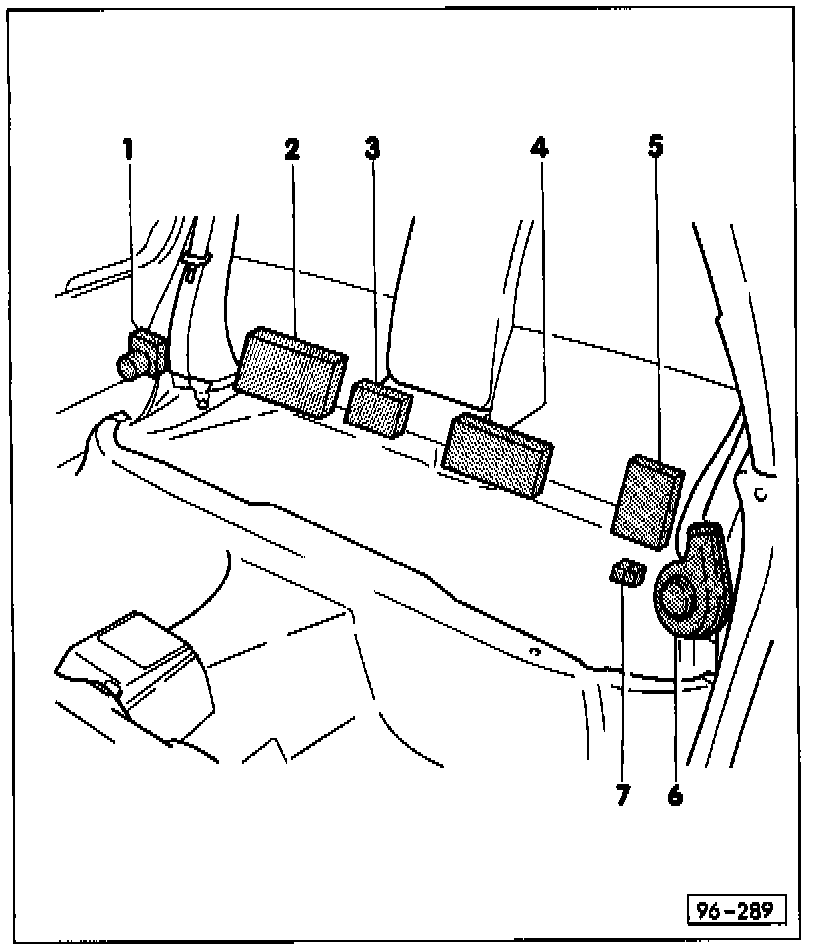

Rear auxiliary relay panel is located at #7


CAUTION: Before working on the electrical system: Determine the correct coding for the anti-theft radio. Disconnect the battery Ground (GND) strap.

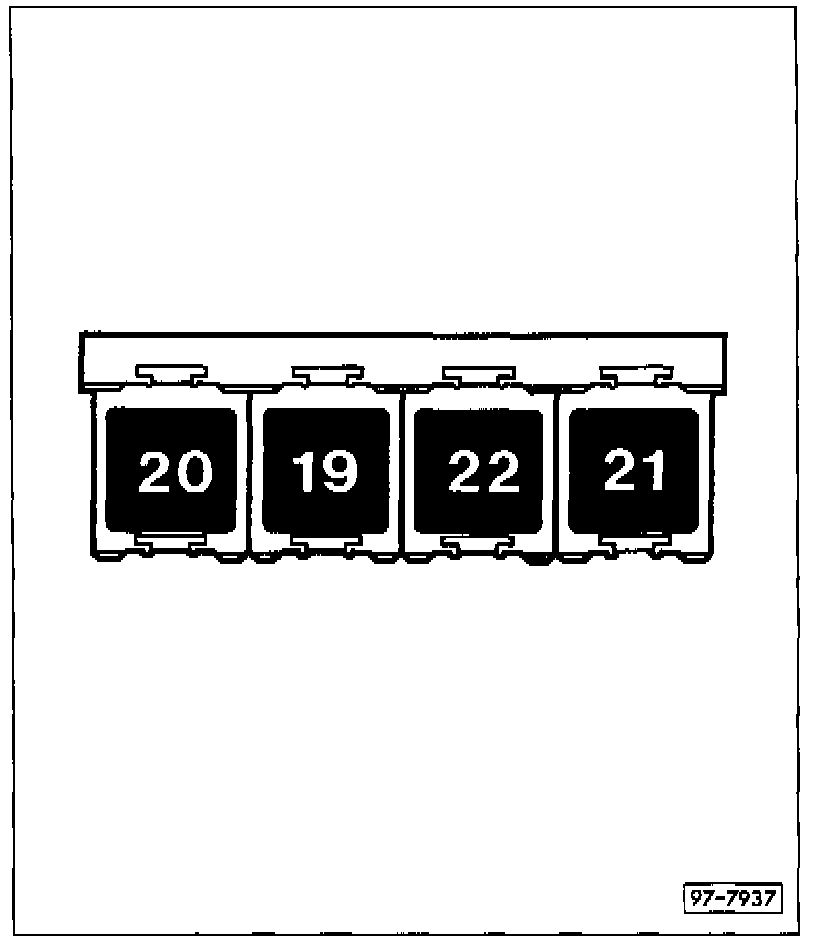

Relay identification






19 - Open
20 - Driver's power window opening relay -J289-
21 - Driver's power window closing relay -J290-
22 - Open
