Camshaft Position Sensor: Description and Operation

Camshaft Position Sensor G40:

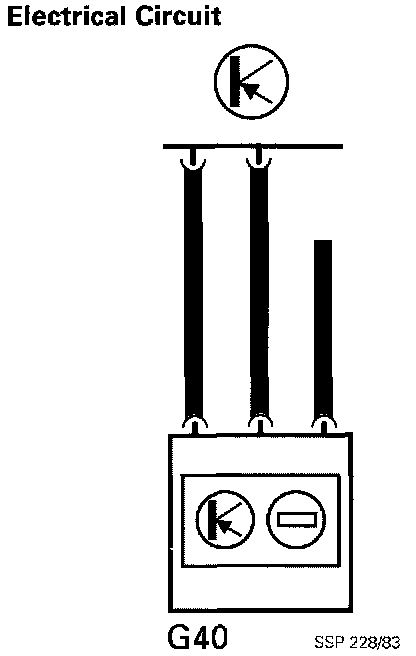

Electrical Circuit - Camshaft Position Sensor G40:

Camshaft Position Sensor G4O:
The camshaft Position sensor is used together with the signal for ignition timing sensor G4, to recognize the ignition - TDC of the third cylinder. The engine will not start if signal is lost.
