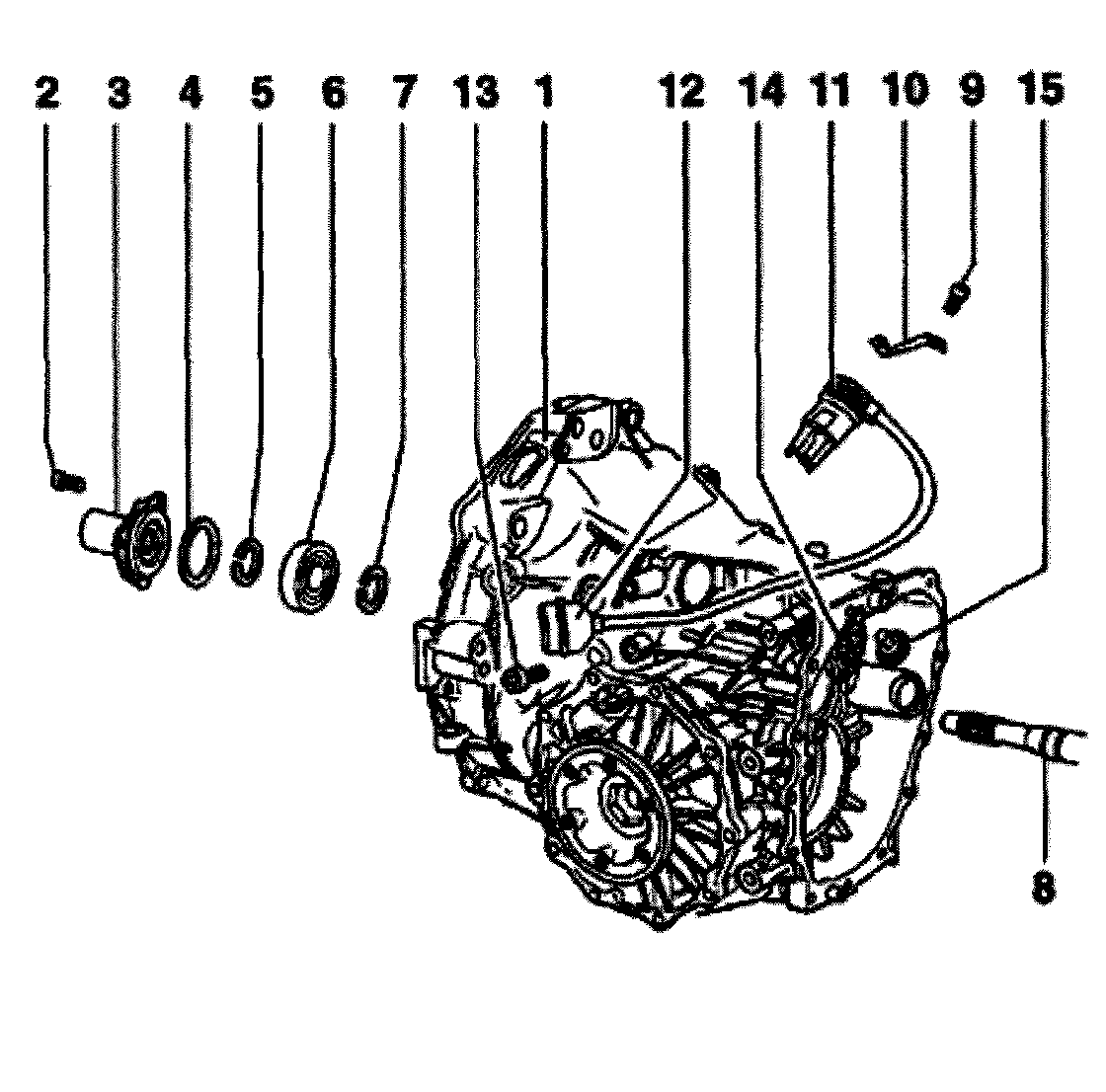

Input Shaft Bearing & Multi-Function Switch Remove & Install
1. Transmission housing
- With differential and flange shafts
- Removing and installing flange shafts, Refer to Seals and Gaskets, Service and Repair.
- Removing and installing differential, Refer to Differential, Manual Transaxle, Service and Repair.
- Removing and installing speedometer Vehicle Speed Sensor (VSS), Refer to Sensors and Switches - M/T, Service and Repair.
- Removing and installing speedometer drive gear, Refer to Speedometer Gear, M/T, Service and Repair.
- Breather installation position refer to Fig. 1
2. Torx bolt
- Always replace
- 35 Nm (26 ft. lbs.)
- Self-locking
3. Guide sleeve
- Installed with O-ring and seal for input shaft, Refer to Clutch, M/T, Service and Repair.
4. Dished washer
- Smaller diameter (convex side) faces guide sleeve
5. Circlip
- Determining thickness and input shaft, Refer to Input Shaft Adjusting.
6. Input shaft ball bearing
- Removing and installing, Refer to Input shaft ball bearing, multifunction switch, input shaft, drive pinion, shift rods, transmission cover and torsen differential cover, removing and installing.
7. Circlip
- Determining thickness and input shaft, adjusting, Refer to Input Shaft Adjusting.
8. Input shaft
- Removing and installing, Refer to Input Shaft, Drive Pinion, Hollow Shaft, Shift Rods, Transmission Cover and Torsen Differential Cover, Removing and Installing.
- Disassembling and assembling, Refer to Input Shaft Disassembling and Assembling.
- Adjusting, Refer to Input shaft, Adjusting.
- Servicing input shaft ball bearing, Refer to Input Shaft Disassembling and Assembling.
9. Socket-head bolt
- 25 Nm (18 ft. lbs.)
10. Locking plate
- For multifunction switch
11. Multi-function switch
12. Multi-function switch harness connector
13. Socket-head bolt
- 10 Nm (7 ft. lbs.)
14. Cover for shift rod
- Removing and installing, Refer to Transmission Selector Mechanism, Disassembling and Assembling.
15. Gear lock for 5th and reverse gear
- Removing and installing, Refer to Removing and installing gear lock for 5Th and reverse gear.
Fig. 1 Breather installation position
After pressing in, the breather must project 21 mm (0.827 inch) out of the housing
