Antenna For Radio/telephone/navigation (GPS) -R52-, Removing And Installing

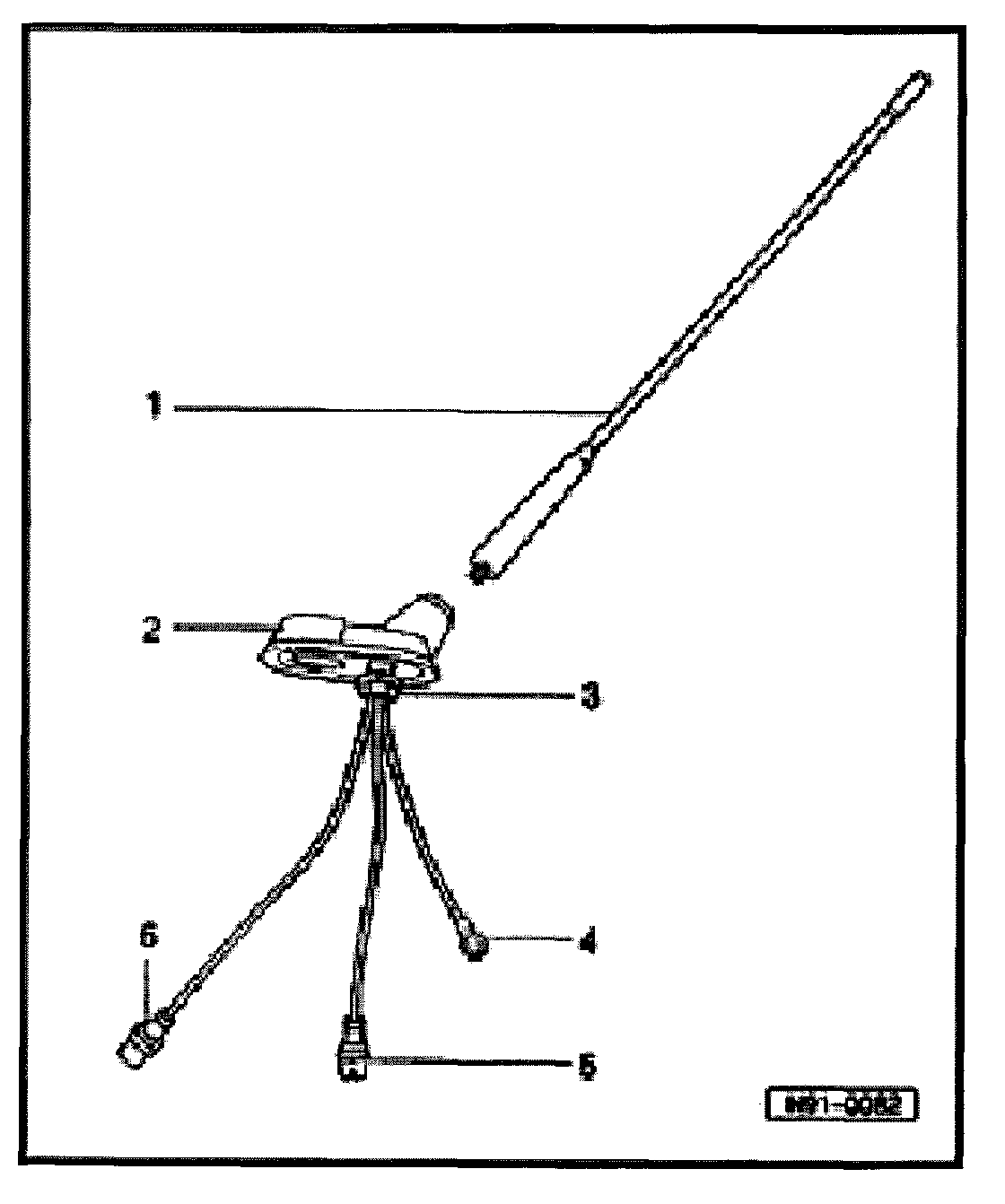

1 - Antenna rod
2 - Antenna foot
3 - Hex nut M14 with serrated washer
- Serrated washer is attached to hex nut with plastic ring
- Apply contact grease to inside of roof in area of serrated washer
4 - Connection for navigation system
The navigation connection must be threaded in, and is shorter than the telephone connection.
5 - Connection for telephone system
The telephone connection must be connected at wire to telephone system. This connection is shorter than the connection for the radio system.
6 - Connection for radio system
The radio connection is connected at wire to radio.

Removing
The antenna is secured to the roof at rear.
- Carefully pry out rear interior light from roof liner using screwdriver.
- Unbolt antenna -1-.
- Unbolt hex nut M14 with serrated washer -3-.
- Disconnect electrical harness connectors -4-, -5- and -6-.
- Remove antenna foot -2- upward.

Installing:
- Install in reverse order of removal.
