Seat Side Trim, Removing and Installing

Seat Side Trim, Removing And Installing

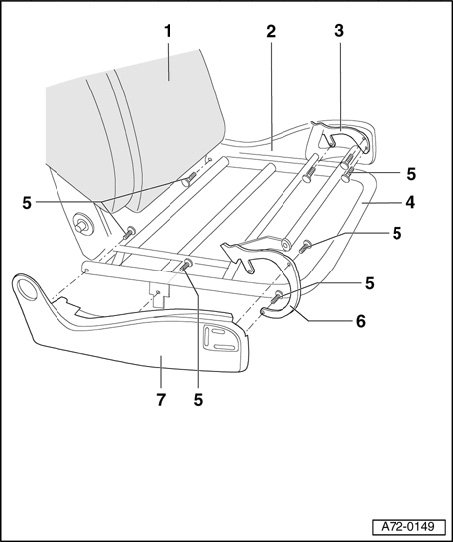

1 - Backrest
2 - Seat side trim, tunnel side

NOTE: It is not necessary to disconnect any wiring when removing seat side trim on tunnel side. Rest of removal is similar to removal of seat side trim on door sill side.

3 - Bracket for seat side trim, tunnel side
4 - Seat frame
5 - Bolts (4x per trim piece)
6 - Bracket for seat side trim, door sill side







7 - Seat side trim, door sill side

Removing
- Move seat fully down.
- Remove seat.
- Remove mounting trim.
- Remove seat bottom.
- Rotate belt buckle downward.
- Disconnect all connectors that run from circuit board to seat side trim on door sill side.
- Cut all cable ties on wiring harness using wire cutters.
- Unbolt bolts - 5 - (4x) on seat side trim.

Installing
- Attach trim on lower mount of backrest frame.
- Secure seat side trim with bolts - 4 - (4x).
