Evaluating Measured Value Blocks

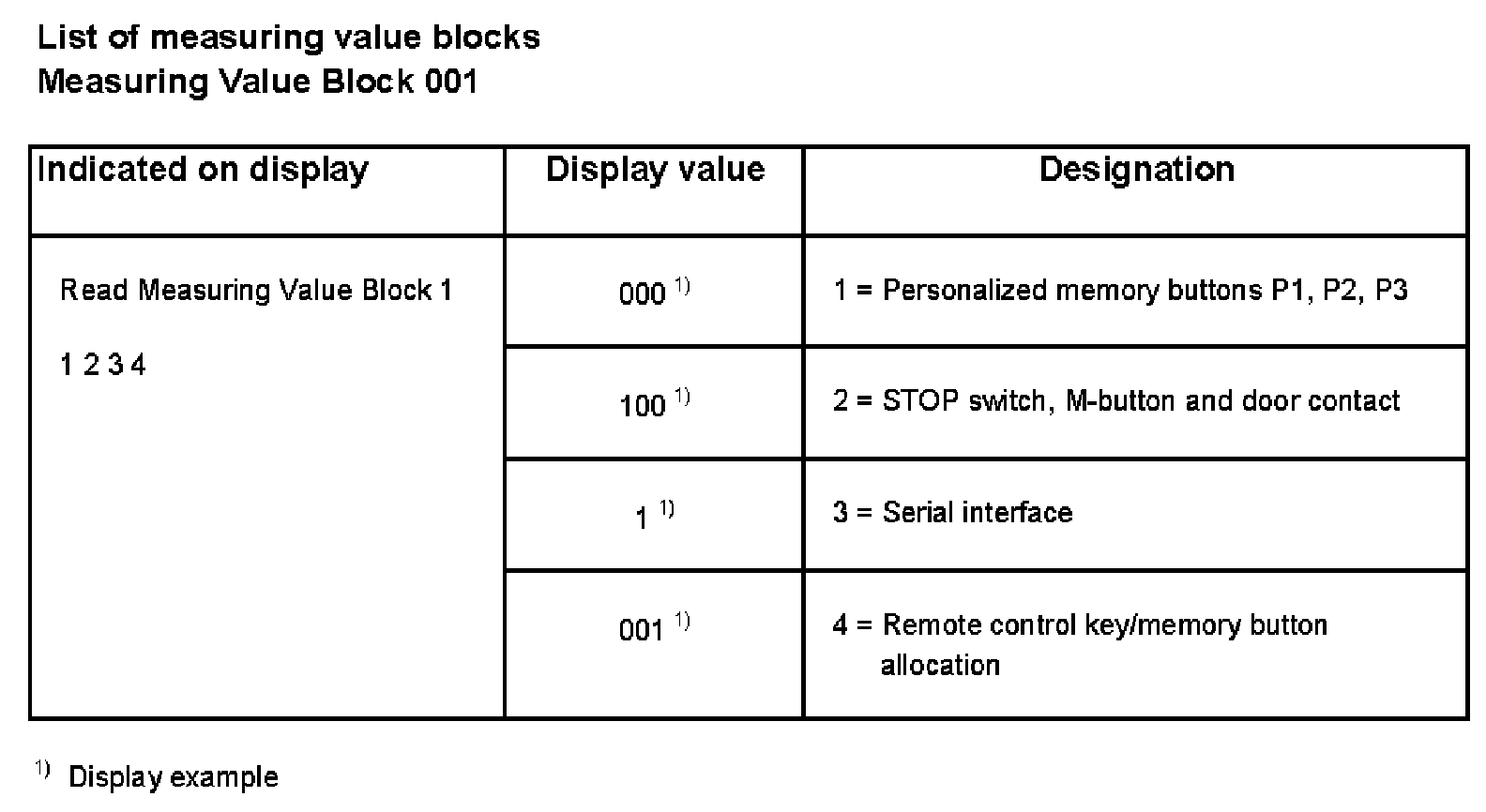

List Of Measuring Value Blocks

Measuring Value Block 001







Display value table







- Possible causes of trouble and fault elimination onward. Driver's Seat Adjustment W/Memory Control Module

2) Emergency off (STOP switch) causes all three positions to be switched to "0
"

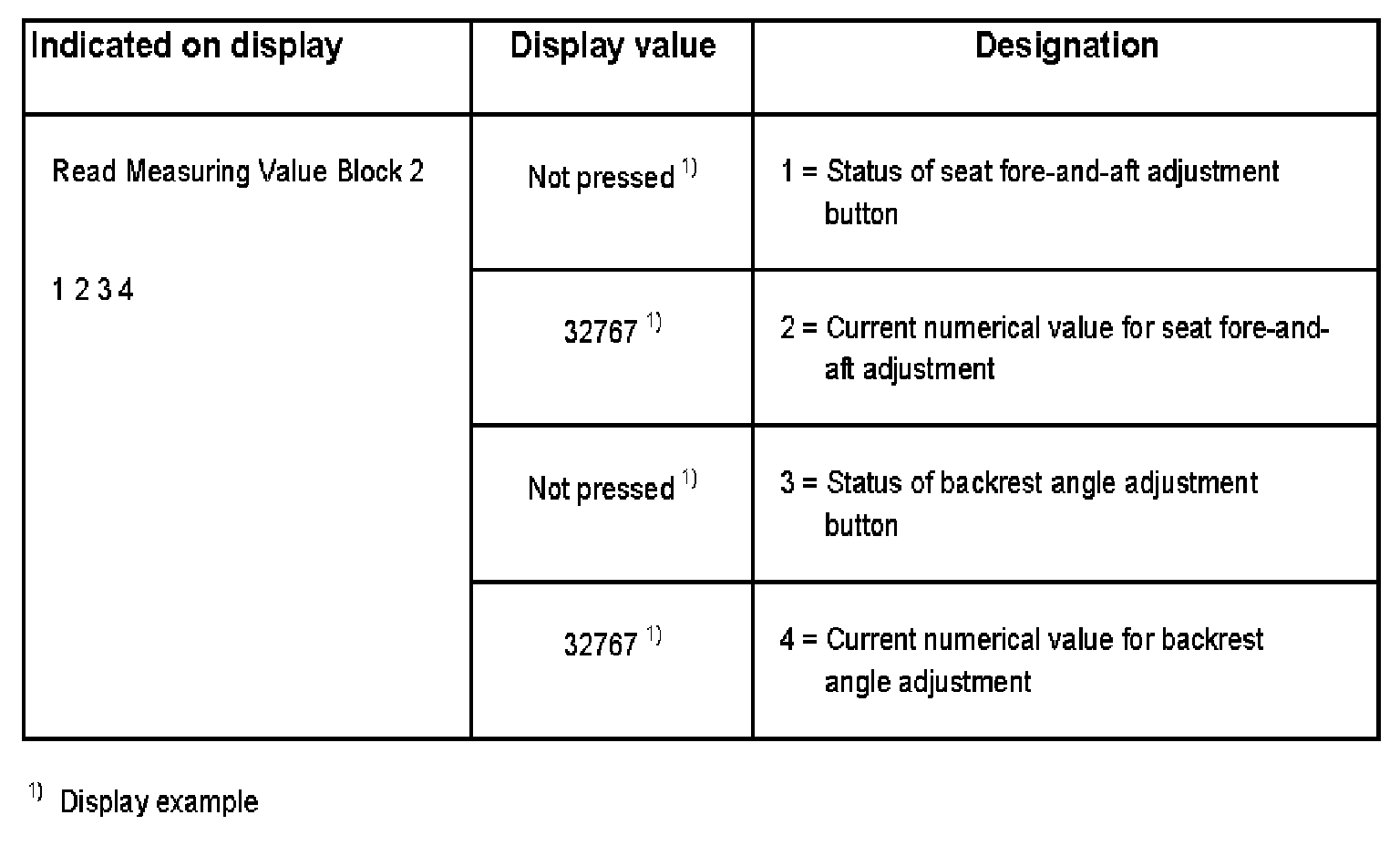

Measuring Value Block 002







Display value table







- Possible causes of trouble and fault elimination onward. Driver's Seat Adjustment W/Memory Control Module

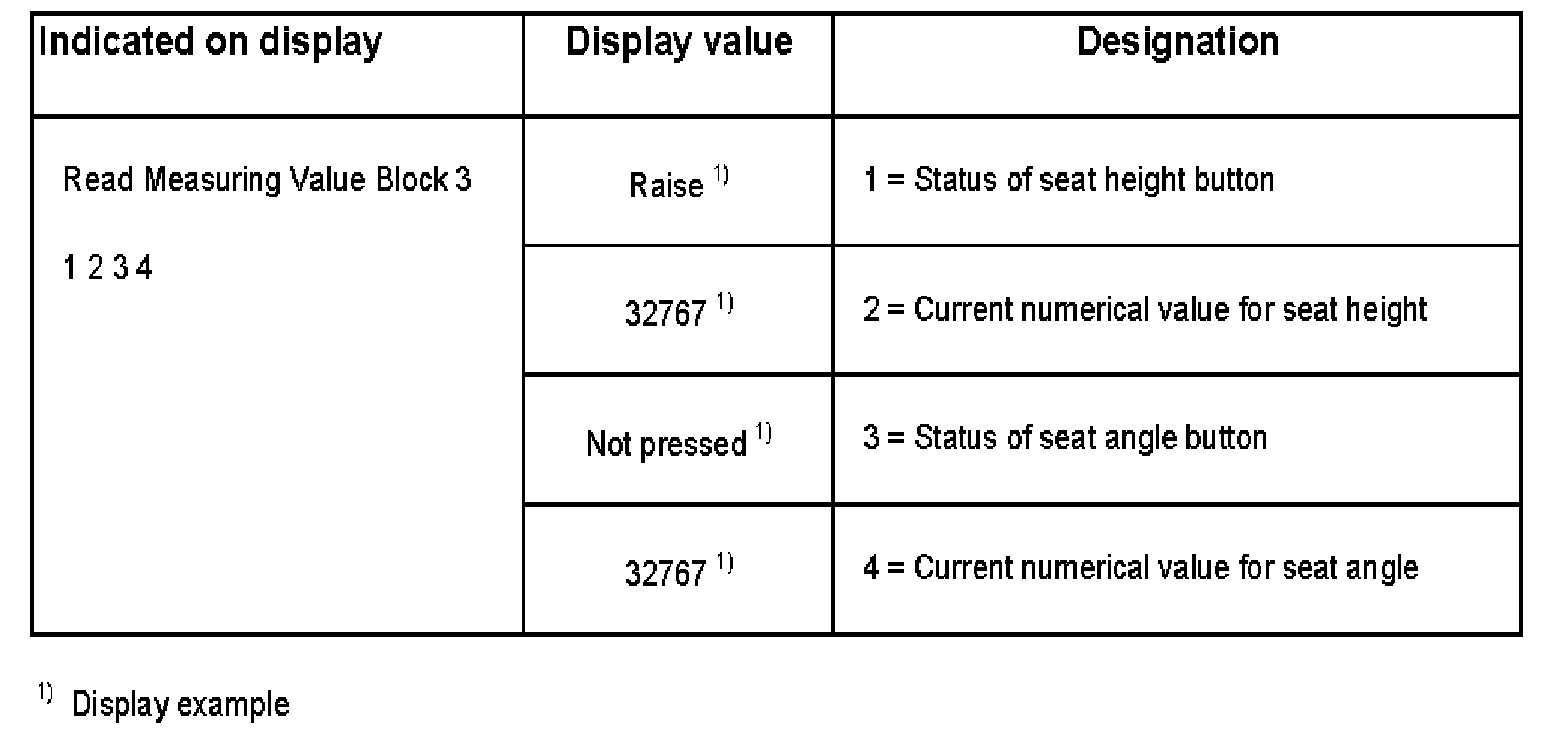

Measuring Value Block 003







Display value table







- Possible causes of trouble and fault elimination onward. Driver's Seat Adjustment W/Memory Control Module

Measuring Value Block 004







NOTE: Values apply to memory position 1.


Display value table







- Possible causes of trouble and fault elimination onward. Driver's Seat Adjustment W/Memory Control Module

Measuring Value Block 005







NOTE: Values apply to memory position 2.


Display value table







- Possible causes of trouble and fault elimination onward. Driver's Seat Adjustment W/Memory Control Module

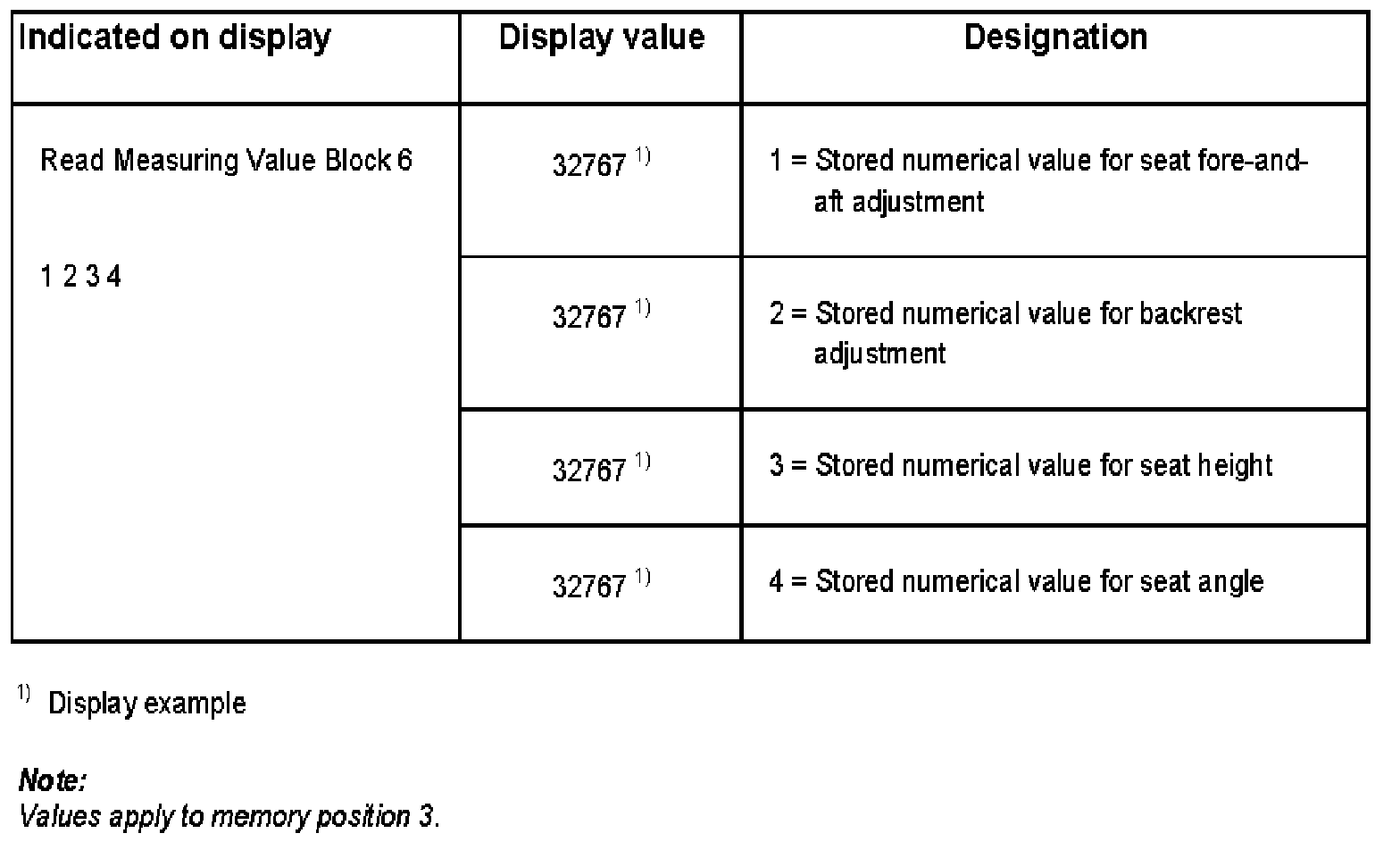

Measuring Value Block 006







NOTE: Values apply to memory position 3.


Display value table







- Possible causes of trouble and fault elimination onward. Driver's Seat Adjustment W/Memory Control Module
