Power Mirror Switch: Service and Repair

Switch For Mirror Adjustment, Removing and Installing

Vehicles with manual transmission:

Removing
- Lever off center console insert and shifter boot upward.

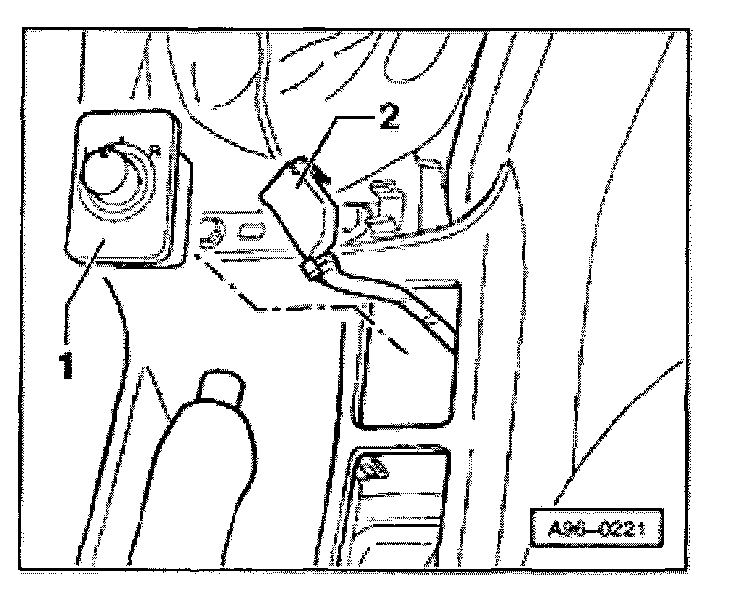

- Using hand, press mirror adjustment switch -1- from bottom upward and out, starting from center console.
- Disconnect electrical harness connector -2- at mirror adjustment switch -1-.

Installing
Installation is the reverse of removal.


NOTE: When installing, be sure that no retaining clips are missing at front and rear of mirror adjustment switch.


Vehicles with automatic transmission

Removing
- Pry center console insert upward and off.
- Carefully insert a screwdriver in the hole at right next to the two mounting bolts for the center console.







- Lever out mirror adjustment switch -1- by pressing lightly using a screwdriver, as soon as the screwdriver touches the lower section.
- Disconnect electrical harness connector -2- at mirror adjustment switch -1-.

Installing
Installation is the reverse of removal.


NOTE: When installing, be sure that no retaining clips are missing at front and rear of mirror adjustment switch.
