Radio System "Symphony With Bose Sound System"

Radio System "symphony With BOSE- Sound System" (Avant)

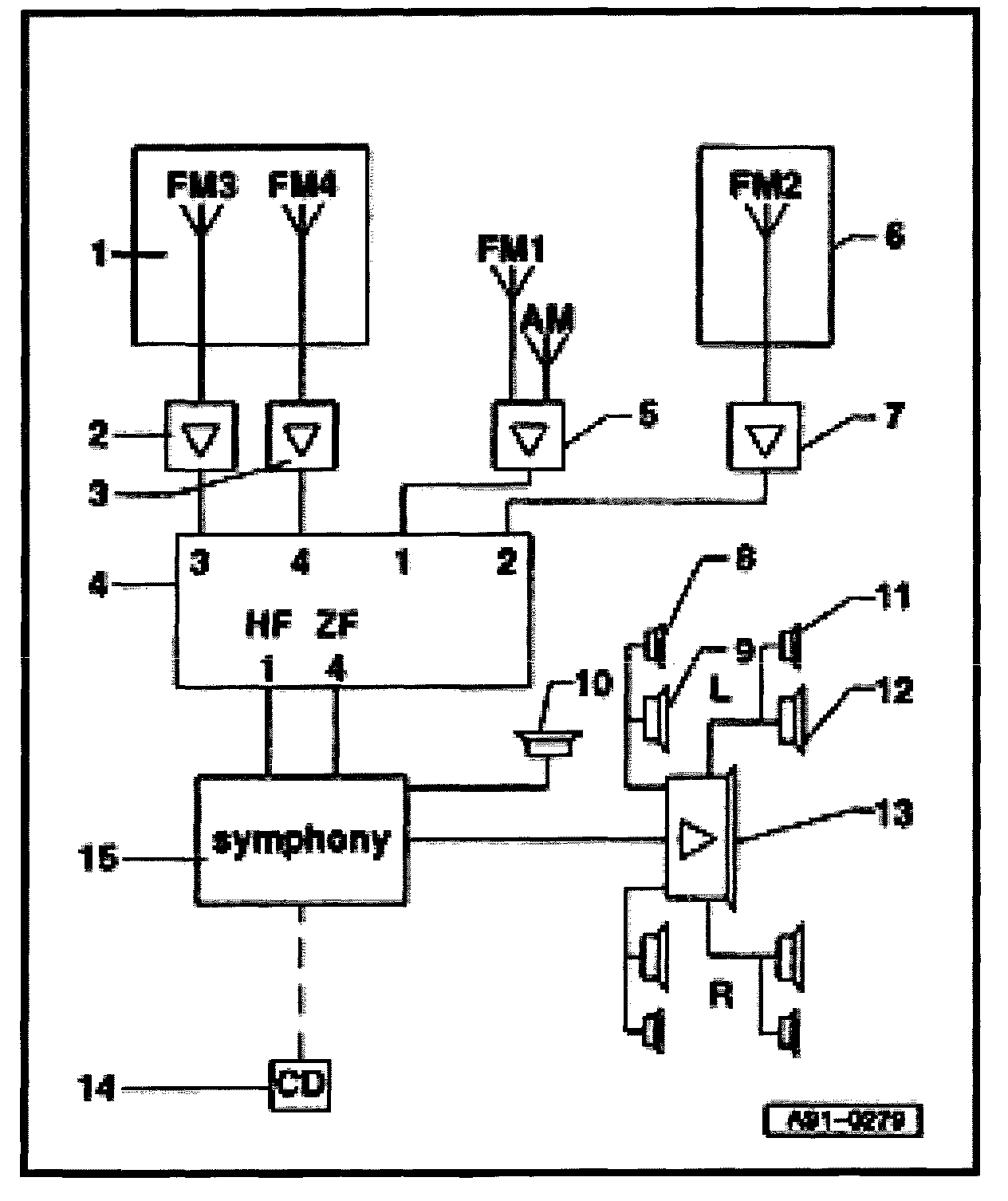

1 - Rear window antennas
2 - Antenna amplifier below rear lid trim (bottom left)
3 - Antenna amplifier below rear lid trim (bottom right)
4 - Control module for antenna selection beside roof antenna (right)
5 - roof antenna with amplifier
6 - Side window antenna (left)
7 - Antenna amplifier below side trim (left)
8 - Mid- range/treble speaker installed in front door trim (top)
9 - Bass speaker installed in front door trim (bottom)
10 - Hands-free speaker is installed in left B-pillar trim (only for telephone or navigation)
11 - Mid-range/treble speaker installed in rear door trim (top)
12 - Bass speaker installed in rear door trim (bottom)
13 - Bass-speaker (Subwoofer) with BOSE-end amplifier in luggage compartment right rear below side trim.
14 CD-changer - (optional) installed in luggage compartment (left rear)
15 - Radio "symphony"
