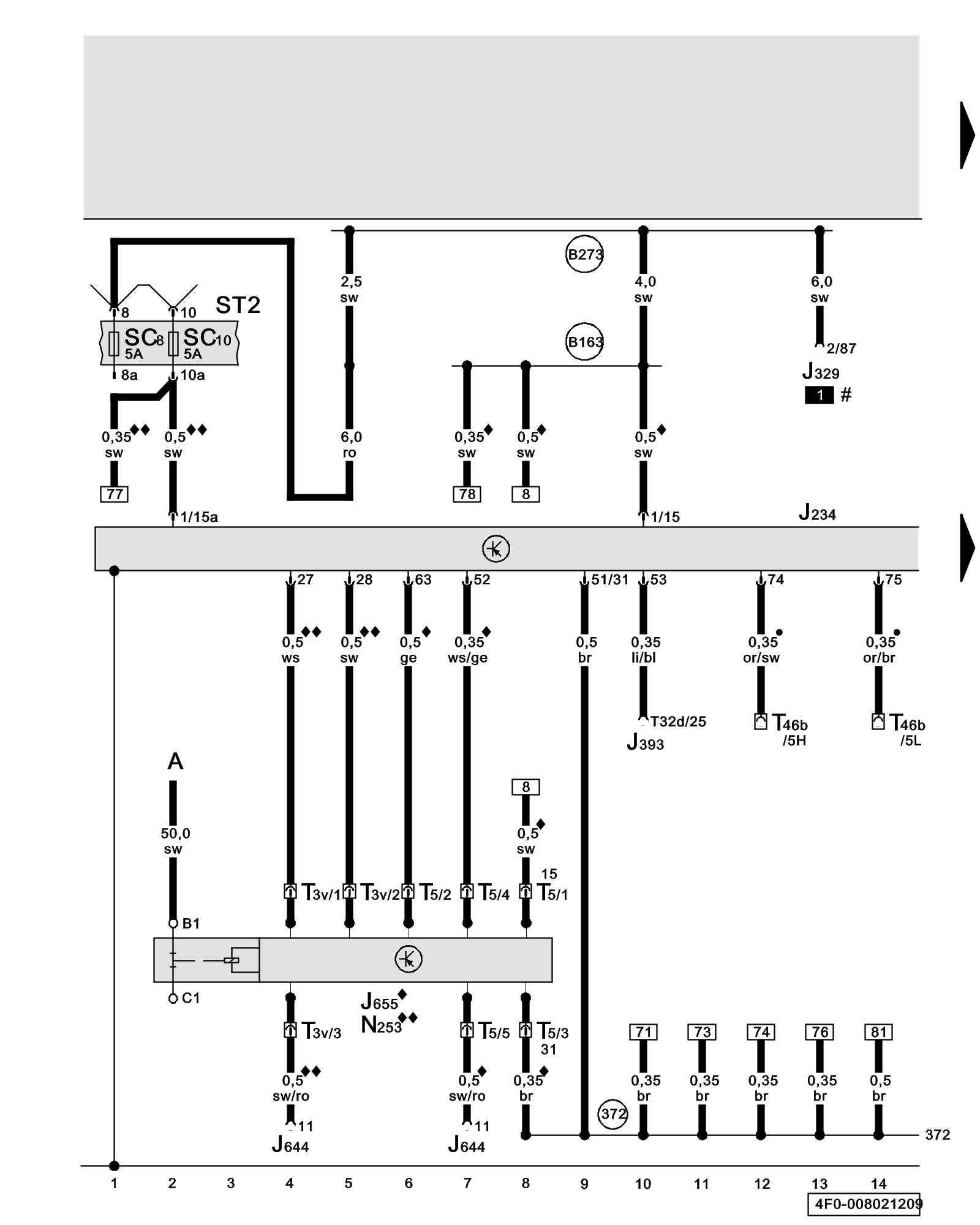

Diagram 8/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag Control Module, Battery Switch-Off Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

J234 - Airbag Control Module

J329 - Power Supply Relay (terminal 15)

J393 - Comfort System Central Control Module

J644 - Energy Management Control Module

J655 - Battery Switch-Off Relay

N253 - Battery Interrupt Igniter

SC8 - Fuse 8 (on fuse panel)

SC10 - Fuse 10 (on fuse panel)

T3v - 3-Pin Connector, yellow, on relay and fuse carrier luggage compartment, right

T5 - 5-Pin Connector, yellow, on relay and fuse carrier luggage compartment, right

T32d - 32-Pin Connector, white (Connector B), on comfort system central control module

T46b - 46-Pin Connector, right CAN separating connector

(372) - Ground Connection 7 (in main wiring harness)

(B163) - Plus Connection 1 (15) (in interior wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

- CAN-Bus (data wire)

# - 9-point relay carrier, behind driver's storage compartment

♦ - Through June 2004

♦♦ - From July 2004
