Dual-Mass Flywheel or Driveplate, Removing and Installing

A - Dual-mass flywheel

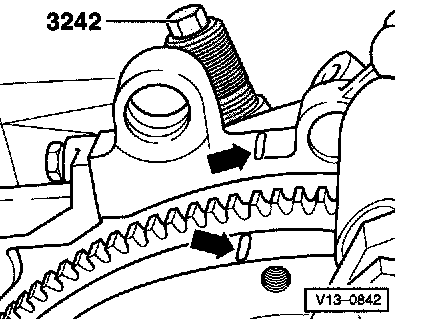

- With crankshaft at Top Dead Center (TDC), install 3242 crankshaft holder.





- Mark position of dual-mass flywheel and engine cylinder block (arrows).
- Remove bolts.

Note: Replacement dual-mass flywheels are not supplied with the pilot needle bearing installed. When replacing the flywheel, always install a new pilot needle bearing.

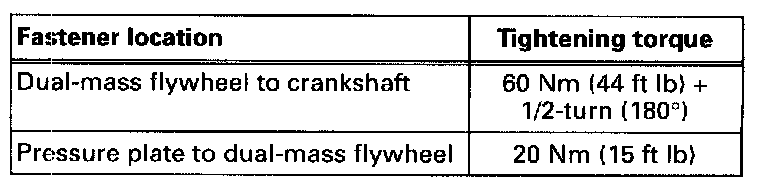

Note: Always replace dual-mass flywheel mounting bolts.

B - Drive plate
- Hold crankshaft in position using 3242 crankshaft holder.

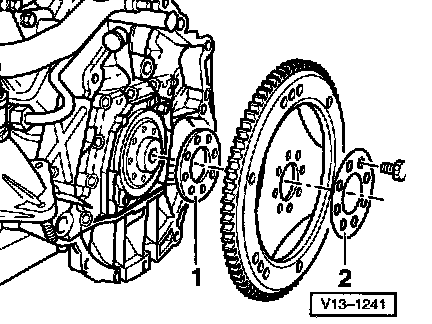

- Mark positions of shim -1- (in front of drive plate) and washer -2- (behind drive plate).





- Install drive plate together with washer -2- and shim -1-.
- Washer -2-: Part No. 035 105 303 A
- Shim -1-: 3.00 mm, Part No. 054 105 301
- Shim -1-: 4.00 mm, Part No. 054 105 202
- Always replace drive plate mounting bolts
- Drive plate to crankshaft bolts tightening torque: 60 Nm (44 ft. lbs.) + 1/4-turn (90°)

CAUTION: Part numbers are listed here for reference only. Always check with your Parts department for the latest information.

Note: Short engines and exchange engines are supplied without a bushing in the crankshaft. For vehicles equipped with an automatic transmission, install the bushing before installing the drive plate.

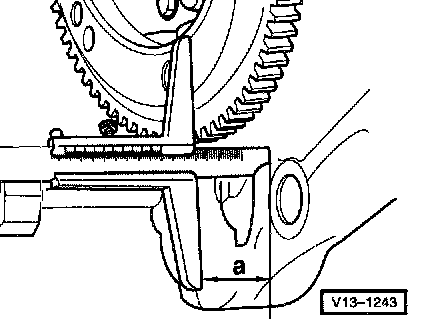

- Measure distance -a- at three points and calculate average value.
Dimension -a-: approximately 12.3 mm (0.484 inch).
- If necessary, install different shim.

Note: Before installing the engine, make sure the engine to transmission centering sleeves are installed in the engine block.
