From 98

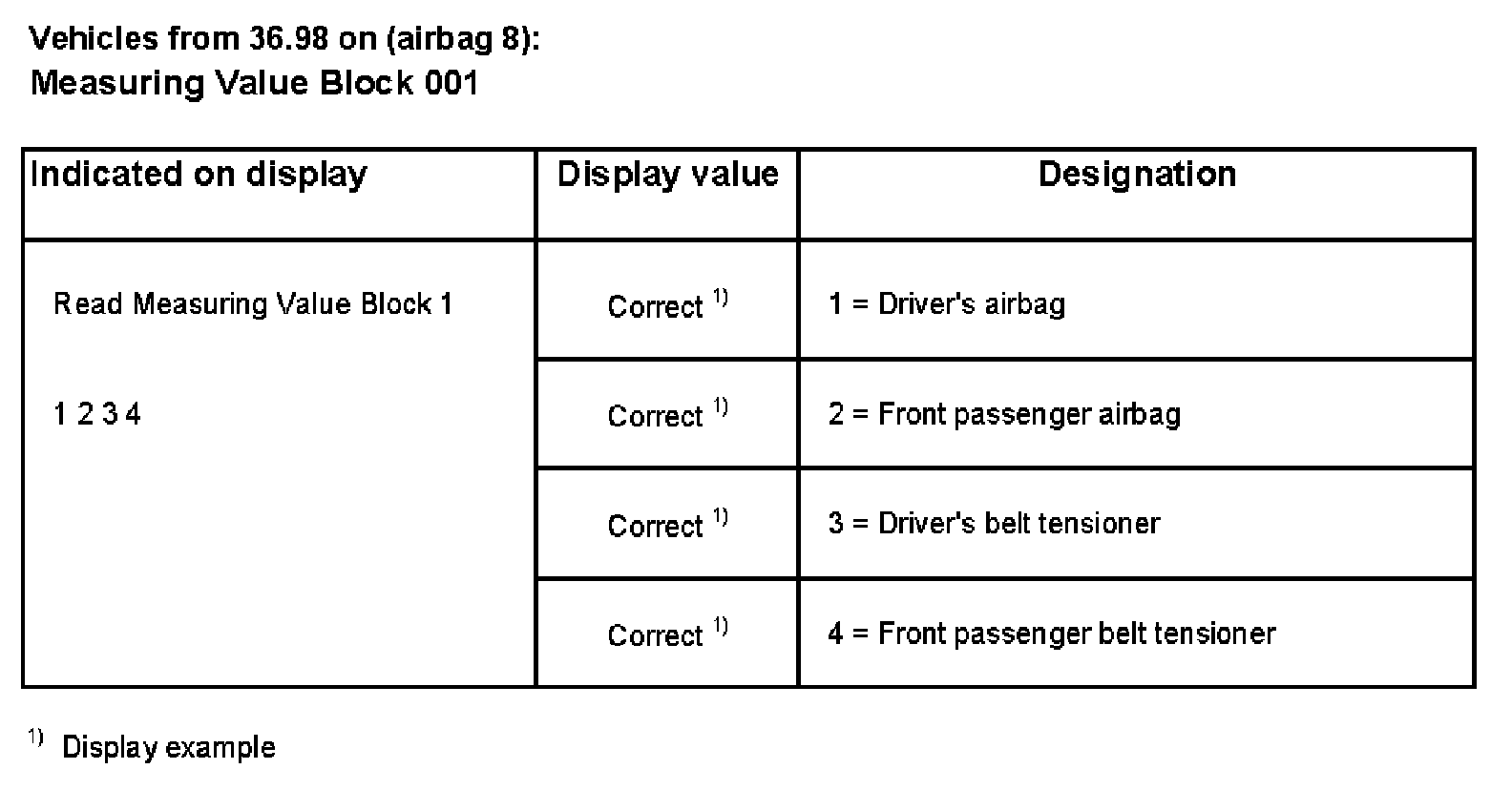

Vehicles From 36.98 On (Airbag 8):

Measuring Value Block 001







Display value table
Correct Resistance OK
Too low Resistance too low
Too high Resistance too high
To Ground Short to Ground
To positive Short to positive

- Possible causes of trouble and fault elimination onward. About Trouble Codes

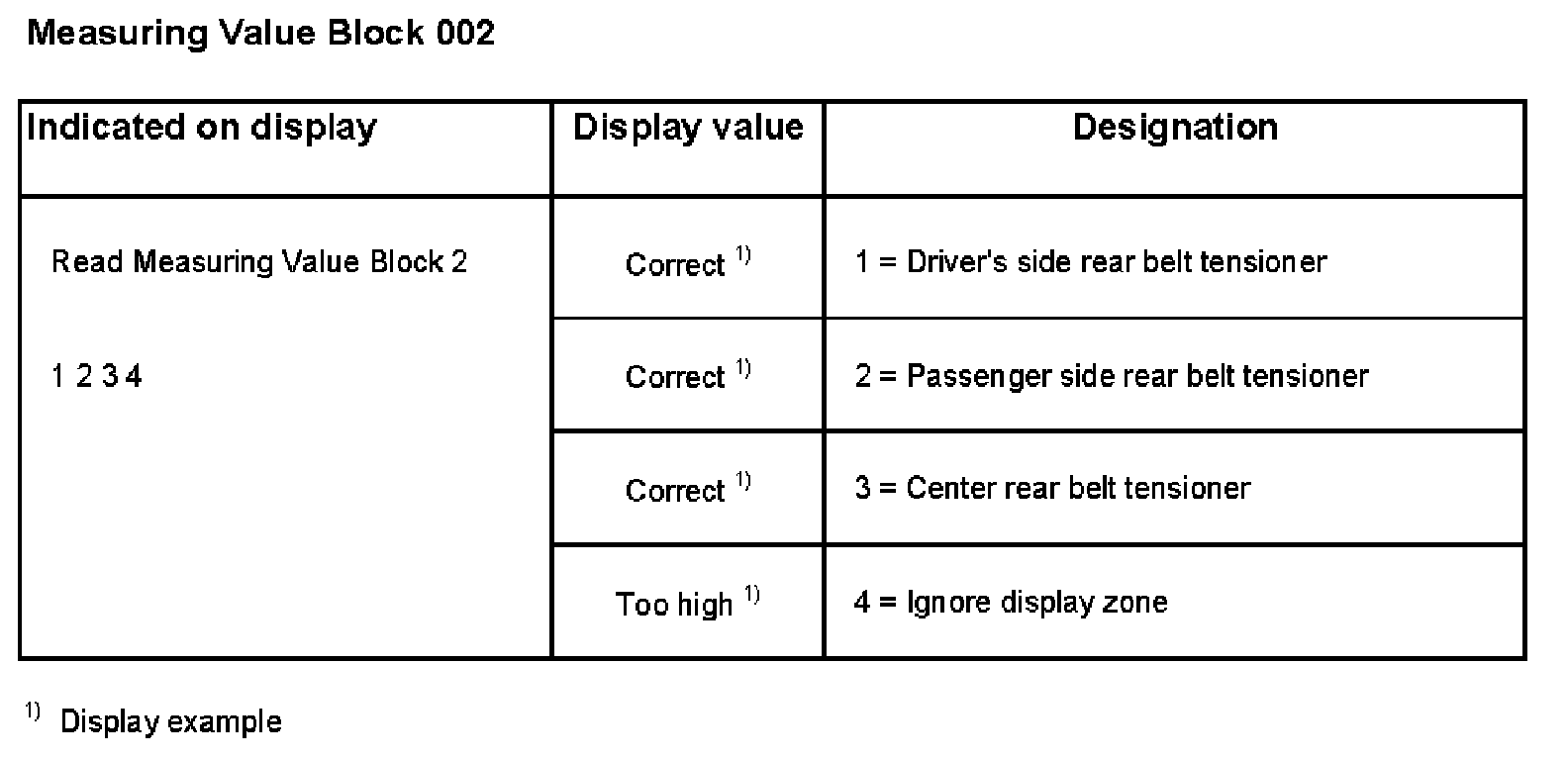

Measuring Value Block 002







Display value table
Correct Resistance OK
Too low Resistance too low
Too high 2) Resistance too high
To Ground Short to Ground
To positive Short to positive
2) May be displayed even if there is no belt tensioner fitted

- Possible causes of trouble and fault elimination onward. About Trouble Codes

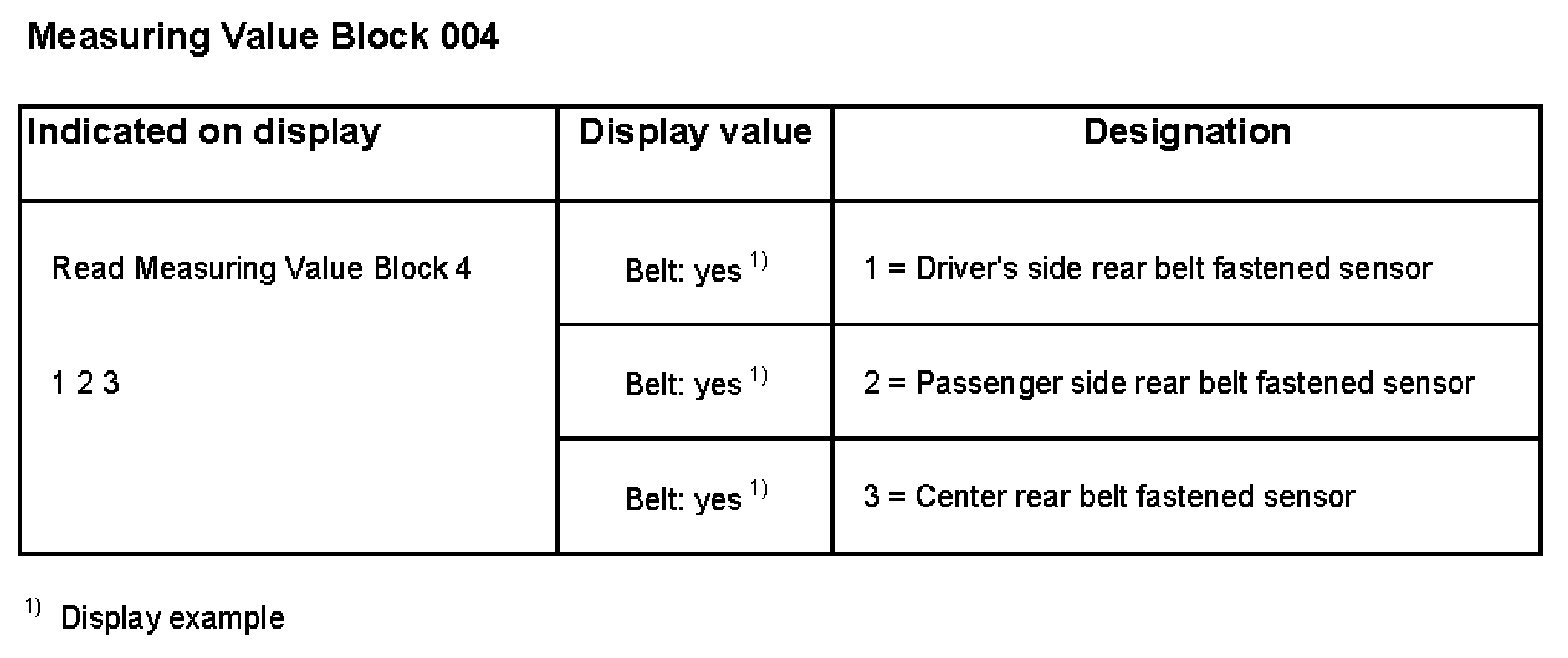

Measuring Value Block 004







Display value table
Belt: yes
Belt: no
Correct Resistance OK
Too low Resistance too low
Too high Resistance too high
To Ground Short to Ground
To positive Short to positive

- Possible causes of trouble and fault elimination onward. About Trouble Codes

Measuring Value Block 006







Display value table
Correct Resistance OK
Too low Resistance too low
Too high 2) Resistance too high
To Ground Short to Ground
To positive Short to positive
2) Displayed even if there are no rear side airbags fitted

- Possible causes of trouble and fault elimination onward. About Trouble Codes

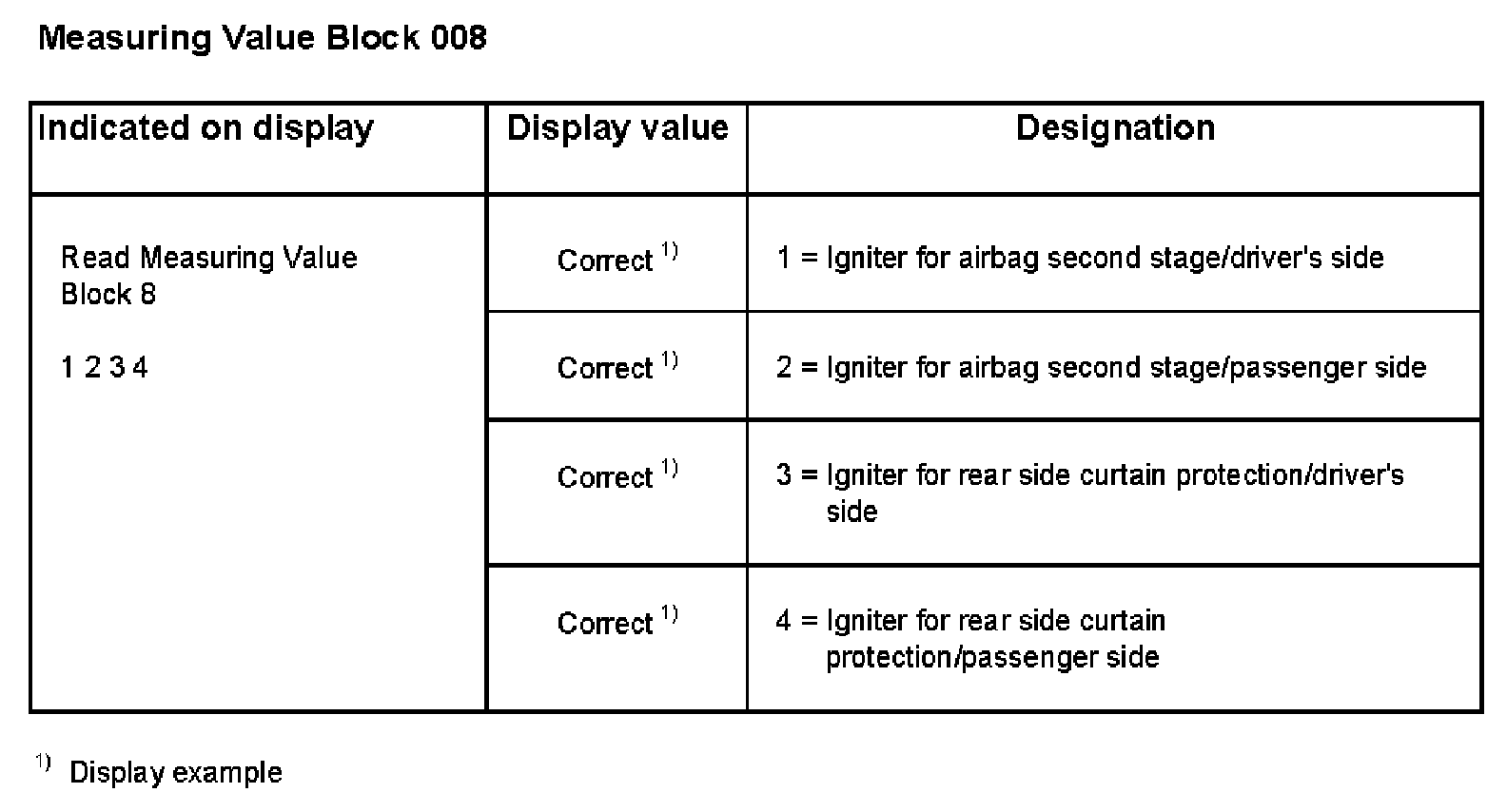

Measuring Value Block 008







Display value table
Correct Resistance OK
Too low Resistance too low
Too high 2) Resistance too high
To Ground Short to Ground
To positive Short to positive
2) May be displayed even if there is no second stage / side curtain protection

- Possible causes of trouble and fault elimination onward. About Trouble Codes
