Ignition Switch: Service and Repair
Ignition/Starter Switch, Removing and Installing
Removing
- Remove steering column switch.

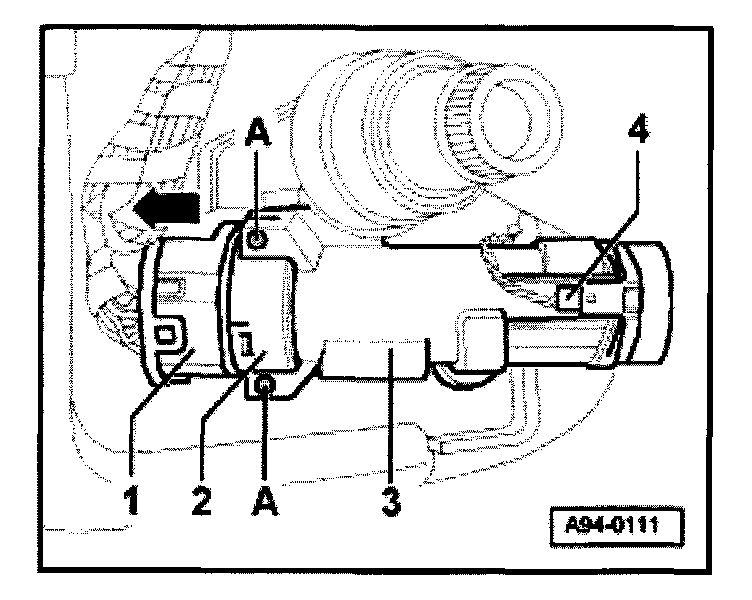

- Disconnect harness connector for induction coil -4-.
- Disconnect harness connector -1- at ignition/starter switch -2-.
- Remove sealing paint from both mounting screws -A-.
- Loosen mounting bolts -A- somewhat and pull ignition/starter switch -2- out of steering lock housing -3- in direction of arrow.
Installing
Installation is reverse of removal, noting the following:
NOTE: Make sure ignition/starter switch and lock cylinder are both in the same position, for example "ignition on" when installing.
- Secure mounting bolts -A- at steering lock housing with sealing paint.
