ATF Lines, Removing and Installing

5 Speed Automatic 01V

Special tools and equipment

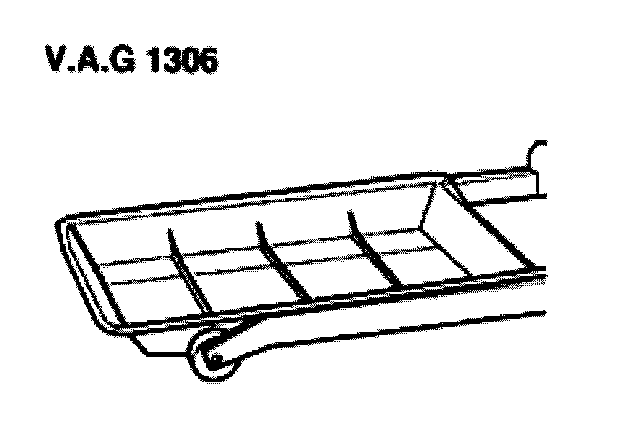

- VAG1306 drip tray

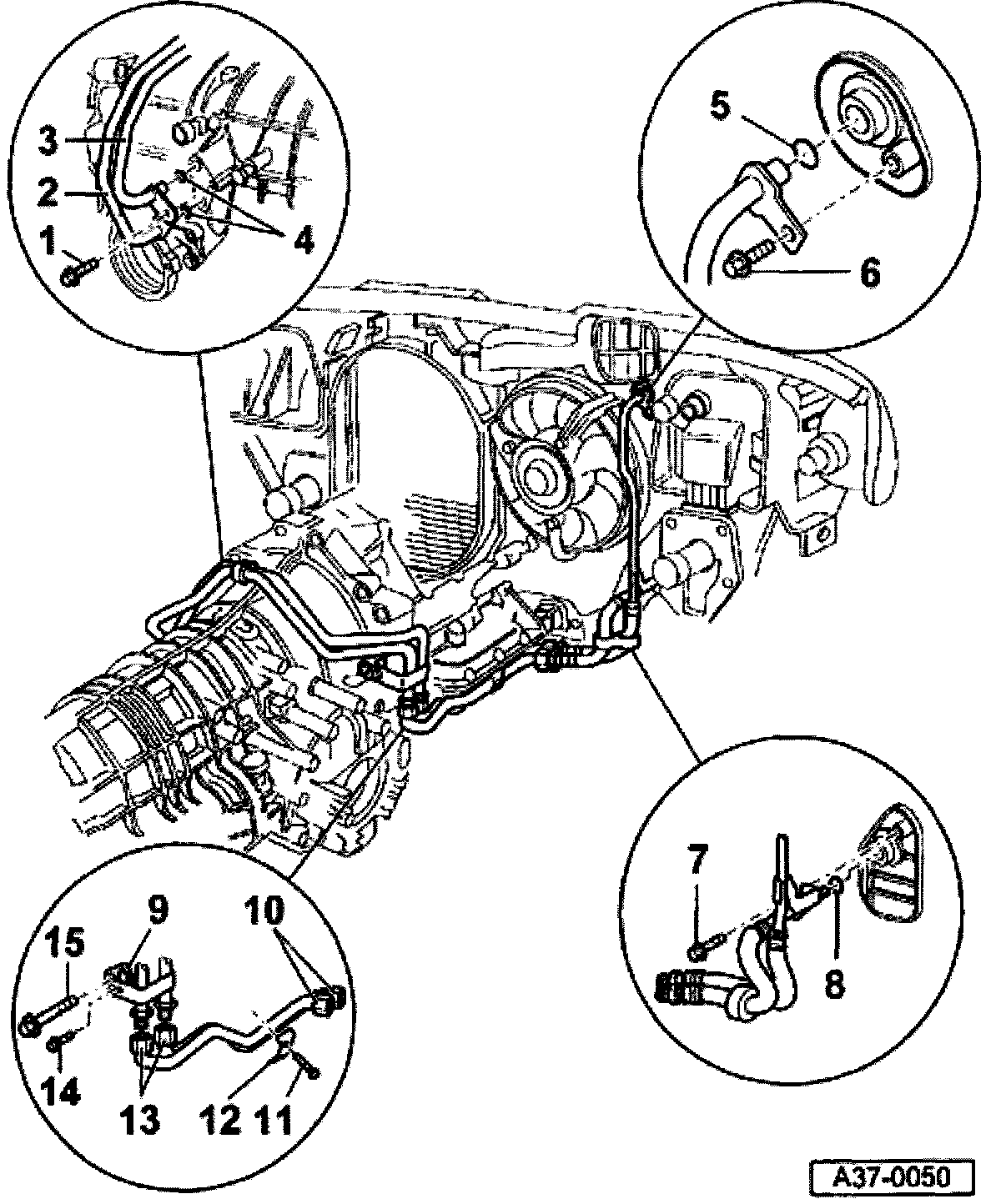

ATF lines, removing and installing, 6 cyl. Gas engines except 2.7 Liter 5V turbo





Notes: Place VAG1306 drip tray underneath.

1. Bolt-21 Nm
^ Insert line until impact by hand before tightening
2. Oil line from cooler
^ Note marking on transmission housing
3. Oil line to cooler
^ Note marking on transmission housing
4. O-ring
^ Apply ATF when inserting
^ Always replace
5. O-ring
^ Apply ATF when inserting
^ Always replace
6. Bolt-5 Nm
7. Bolt-5 Nm
8. O-ring
^ Apply ATF when inserting
^ Always replace
9. Bracket
10. Union nut, 25 Nm
11. Hex bolt, 5 Nm
12. Clamp
13. Union nut, 25 Nm
14. Hex bolt, 10 Nm
15. Hex bolt, 65 Nm


ATF lines, removing and installing, for 6 cyl. 2.7 Liter 5V turbo engines





Notes: Place VAG1306 drip tray underneath.

1. Bolt-21 Nm
^ Insert line until impact by hand before tightening
2. O-ring
^ Apply ATF when inserting
^ Always replace
3. Nut-5 Nm
4. Clamp
5. Union nut, 29 Nm
6. Union nut, 29 Nm
^ Note yellow markings for allocation of lines.
7. Nut -5 Nm
8. Clamp
9. Bolt-5 Nm
10. Union nut, 29 Nm
^ Note yellow markings for allocation of lines.
11. Union nut, 29 Nm
12. Clamp

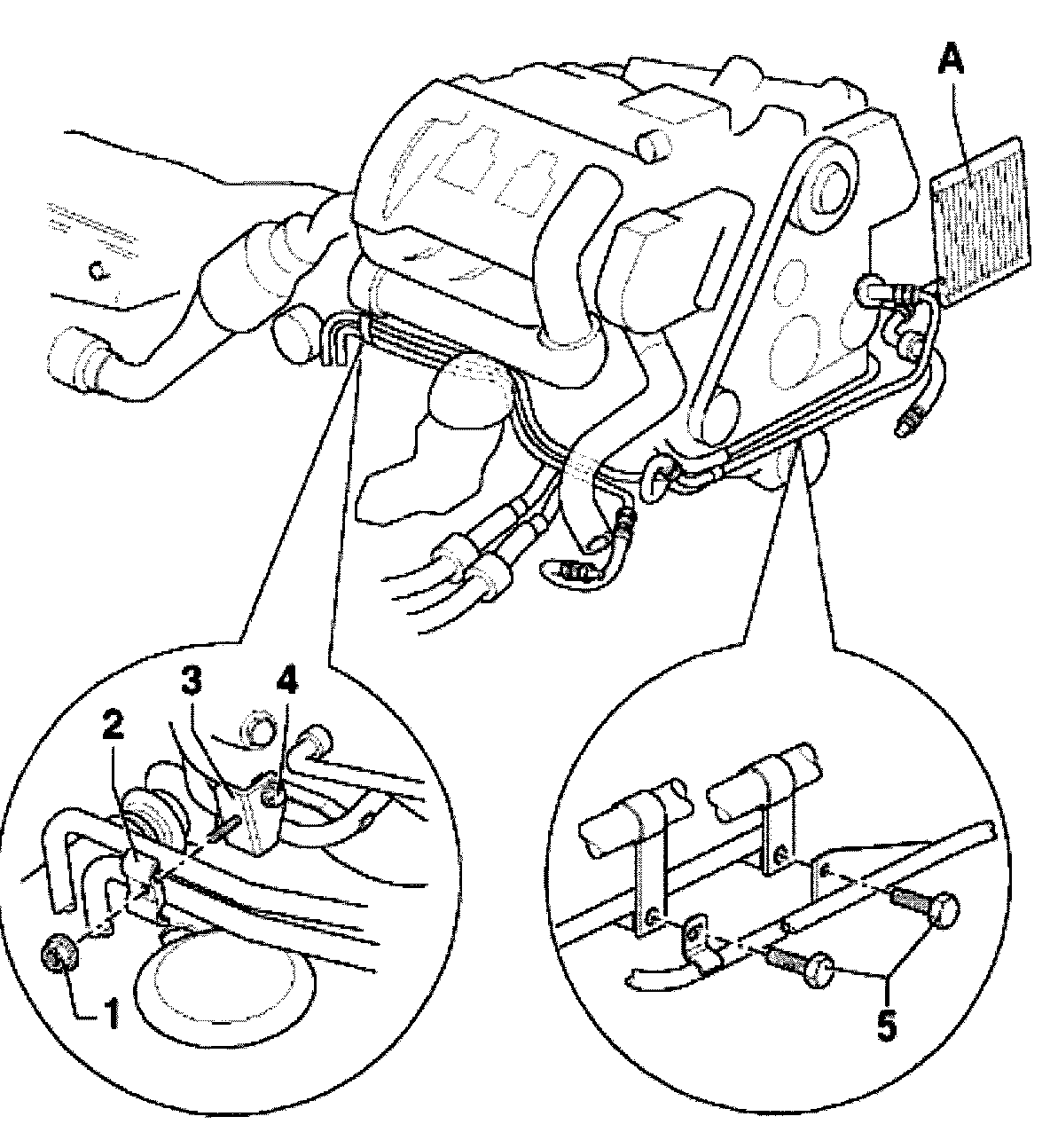

A- Auxiliary ATF cooler





1. Nut 9.5 Nm
2. Clamp
3. Bracket
4. Bolt 9.5 Nm
5. Bolt 22 Nm

- An extra ATF check must be performed after the auxiliary ATF cooler has been emptied or when it has been replaced.

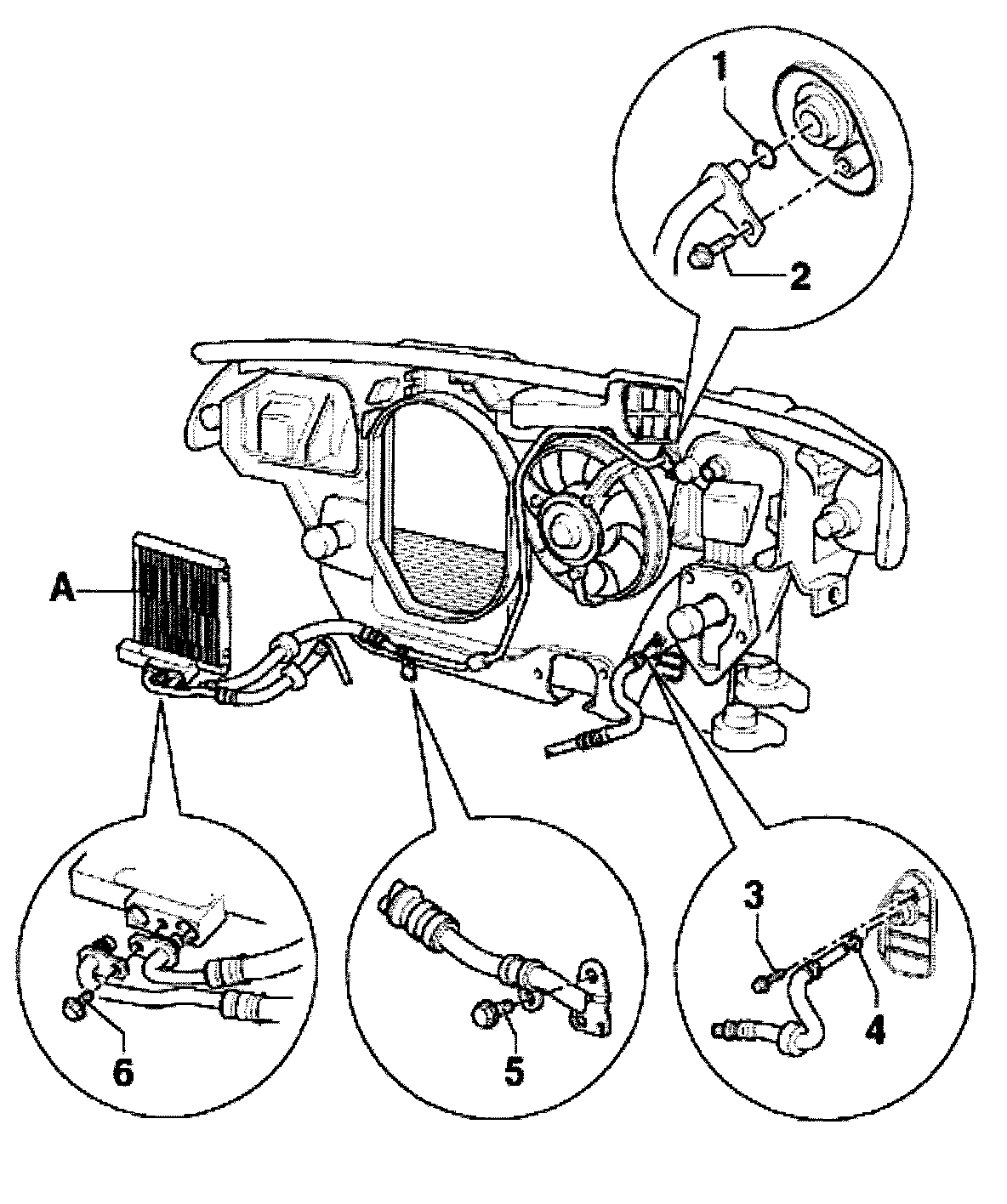

A -Auxiliary ATF cooler





- An extra ATF check must be performed after the auxiliary ATF cooler has been emptied or when it has been replaced

1. O-ring
^ Apply ATF when inserting
^ Always replace
2. Bolt-5 Nm
3. Bolt-5 Nm
4. O-ring
^ Apply ATF when inserting
^ Always replace
5. Bolt 10 Nm
6. Bolt 25 Nm
^ Insert line until impact by hand before tightening

ATF lines and ATF cooler, cleaning
Special tools and equipment

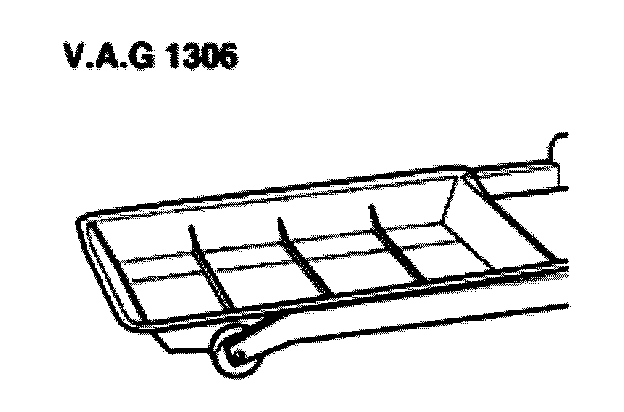

- VAG1306 drip tray
- Hose approximately 18 mm
- Compressed air gun, standard
- Protective goggles

Notes:
^ Always blow compressed air through oil cooler and ATF lines (max. 10 mbar) before installing a replacement transmission.
^ When installing ATF lines, insert into transmission or cooler by hand until impact first and then tighten bolts.

WARNING!: Wear protective glasses.

- Place VAG1306 drip tray underneath.

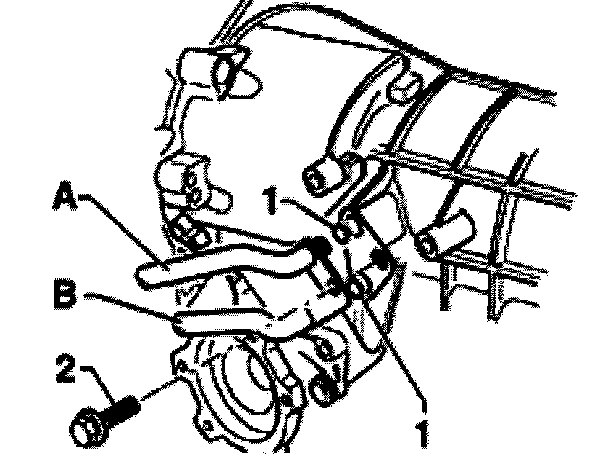

- Remove bolt-2-.
- Disconnect ATF lines from transmission.
- Slide hose, approximately 18 mm onto ATF line -A- and secure with hose clamp. Place the other end of the hose into an appropriate container.
- Blow through ATF line -B- with compressed air gun.
- Move hose from ATF line -A- to ATF line -B- and repeat procedure.
- Re-secure ATF lines.
- Then check ATF level and top off
