"Concert II" and "Symphony II" With "Bose Sound System"

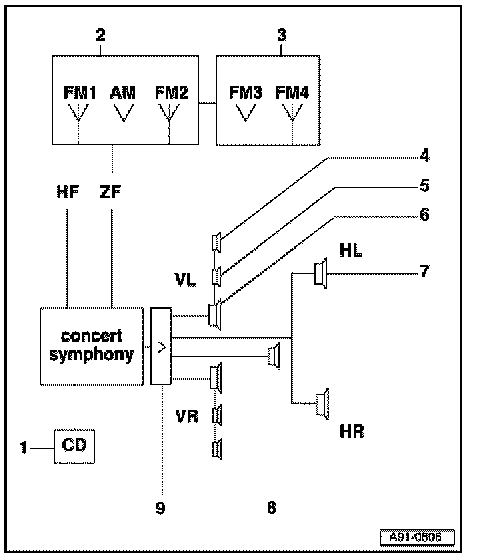

"Concert II" And "Symphony II" Radio System With "BOSE Sound System", Layout







1 - CD Changer Unit
- Optional
- In glove compartment
2 - Left Antenna Module -R108-
- Below the rear lid trim
3 - Right Antenna Module -R109-
- Below the rear lid trim
4 - Front treble speaker
- In front door (top)
5 - Mid-range/treble speaker, front
- In instrument panel
6 - Bass speaker, front
- In front door trim (bottom)
7 - Rear speaker
- In rear side trim (bottom)
- Speaker (active): Mid-range/bass with treble bridge
- BOSE-speakers: Mid-range/bass
8 - Center loudspeaker
- In instrument panel
9 - BOSE amplifier
- In luggage compartment right rear below side trim
