"Concert II" and "Symphony II" Radio Systems

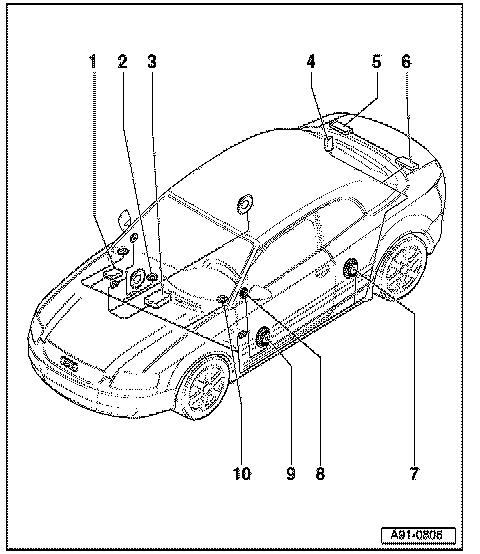

"Concert II" And "Symphony II" Radio Systems, Component Overview







1 - CD Changer
- Optional
- In glove compartment
- Check wire connection
2 - Center loudspeaker
- In instrument panel
3 - Radio
- In center console
- Radio "Concert II" removing and installing
- Radio "Symphony II" removing and installing
4 - Amplifier for the rear speaker or BOSE amplifier (only with "BOSE sound system")
- In rear right of luggage compartment below side trim
- Amplifier for the rear speakers or BOSE amplifier removing and installing
5 - Right Antenna Module -R109-
- Below the rear lid trim
6 - Left Antenna Module -R108-
- Below the rear lid trim
7 - Rear speaker
- In rear side trim (bottom)
- Speaker (active): Mid-range/bass with treble bridge
- BOSE-speakers: Mid-range/bass
8 - Treble speaker, front
- In front door (top)
9 - Bass speaker, front
- In front door trim (bottom)
10 - Mid-range/treble speaker, front
- In instrument panel
