"Up to 10/2004"

Seatbench, Removing And Installing-vehicles Up To 10.04

Removing

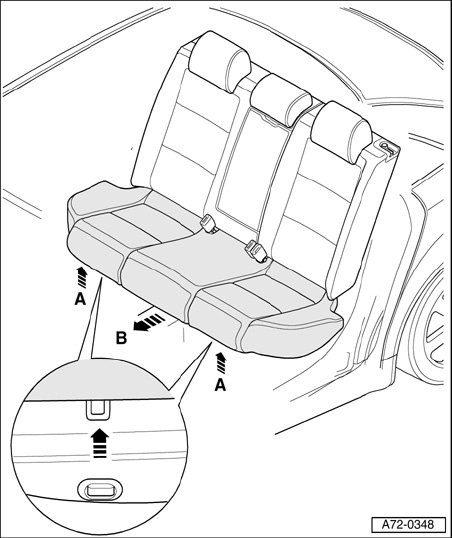

- Lift seatbench in - direction of arrow A - and pull forward in - direction of arrow B -.
- Remove electrical harness connector for side airbag from groove
- Remove seat bench from vehicle.

Installing
Installation is reverse of removal. Observe the following when doing so:

CAUTION: Mountings must be replaced after each removal of seatbench







Side airbag cable connector

CAUTION: Observe safety precautions for work on airbags.







Replacing mountings
- Remove used mounting from chassis cut-out.
- Insert new mounting grommet - 2 - into body cut-out until it clicks into place - 1 -.
