Diagram 317/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


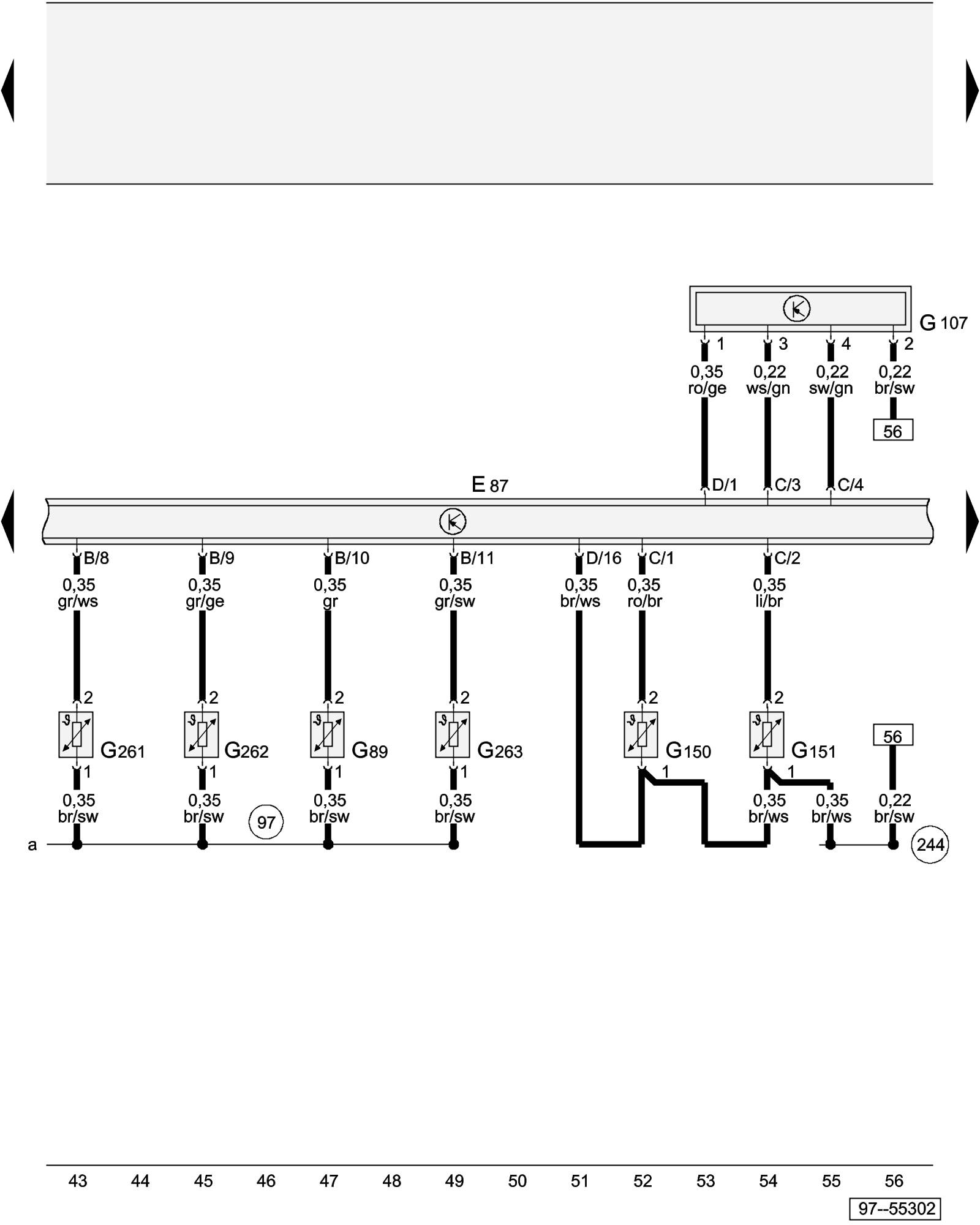

A/C Control Head, Vent Temperature Sensor, Sunlight Photo Sensor, Fresh Air Intake Duct Temperature Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E87 - A/C Control Head

G89 - Fresh Air Intake Duct Temperature Sensor Components Inside Passenger Compartment

G107 - Sunlight Photo Sensor Components Inside Passenger Compartment

G150 - Left Vent Temperature Sensor Components Inside Passenger Compartment

G151 - Right Vent Temperature Sensor Components Inside Passenger Compartment

G261 - Left Footwell Vent Temperature Sensor Components Inside Passenger Compartment

G262 - Right Footwell Vent Temperature Sensor Components Inside Passenger Compartment

G263 - Evaporator Vent Temperature Sensor Components Inside Passenger Compartment

(97) - Ground connection -1-, in A/C wiring harness

(244) - Ground connection (sensor Ground), in wiring harness Climatronic

Previous Diagram 317/4 (Tracks 29-42)

Next Diagram 317/6 (Tracks 57-70)
