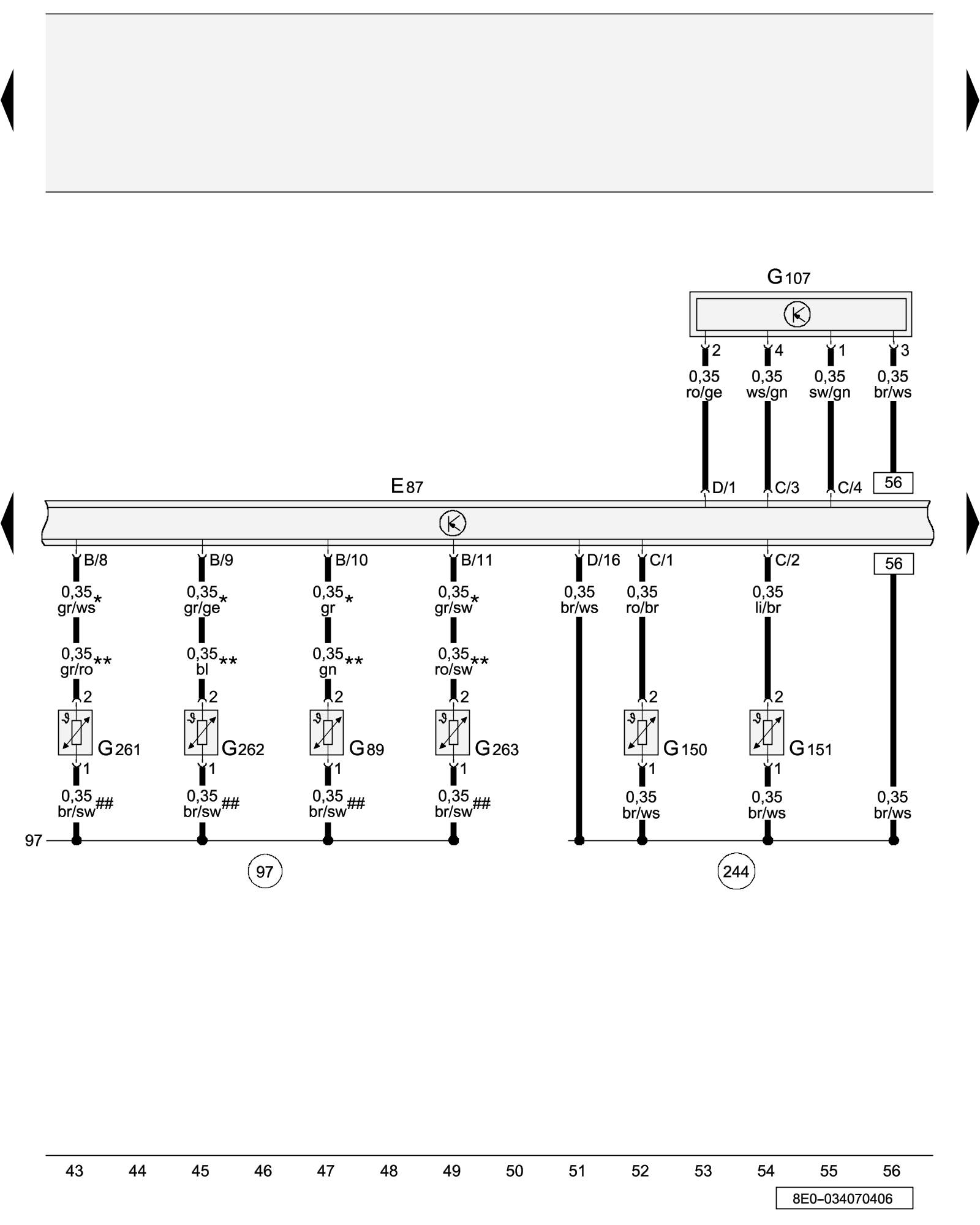

Diagram 34/5 (Tracks 43-56)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Sunlight Photo Sensor, Vent Temperature Sensor, Fresh Air Intake Duct Temperature Sensor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E87 - A/C Control Head

G89 - Fresh Air Intake Duct Temperature Sensor Components Inside Passenger Compartment

G107 - Sunlight Photo Sensor Components Inside Passenger Compartment

G150 - Left Vent Temperature Sensor Components Inside Passenger Compartment

G151 - Right Vent Temperature Sensor Components Inside Passenger Compartment

G261 - Left Footwell Vent Temperature Sensor Components Inside Passenger Compartment

G262 - Right Footwell Vent Temperature Sensor Components Inside Passenger Compartment

G263 - Evaporator Vent Temperature Sensor Components Inside Passenger Compartment

(97) - Ground Connection 1 (in A/C wiring harness)

(244) - Sensor Ground Connection (in Climatronic wiring harness)

* - discontinued (Phased in modification)

** - Phased in modification

## - wire color ws, Phased in modification
