Convenience System Overview

Components for convenience system

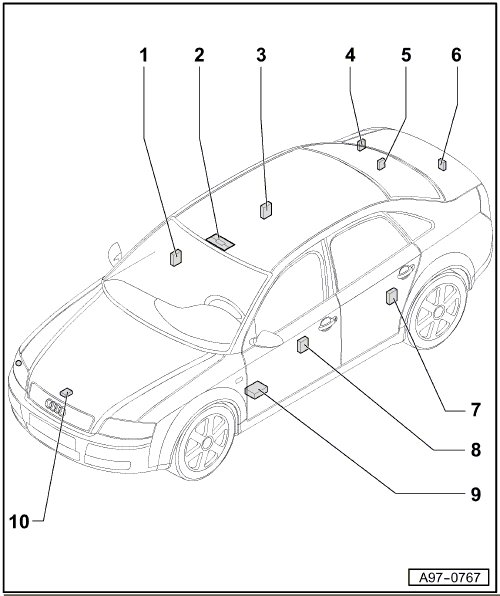

Convenience System Overview







1 - Door control unit, front passenger's side - J387 => [ Door control unit, front passenger's side - J387 ] See Image Below.

2 - Anti-theft alarm ultra-sonic sensor - G209 => [ Anti-theft alarm ultra-sonic sensor - G209 ] See Image Below.

3 - Door control unit, rear right - J389 => [ Door control unit, rear right - J389 ] See Image Below.

4 - Tank filler flap locking motor - V155 => [ Tank filler flap release motor - V155 ] See Image Below.

5 - Alarm horn - H12 => [ Alarm horn - H12 ] See Image Below.

6 - Trunk lid release motor - V139 => [ Trunk lid release motor - V139 ] See Image Below.

7 - Door control unit, rear left - J388 => [ Door control unit, rear left - J388 ] See Image Below.

8 - Door control unit, driver's side - J386 => [ Door control unit, driver's side - J386 ] See Image Below.

9 - Convenience system central control unit - J393 => [ Convenience system central control unit - J393 ] See Image Below.

10 - Hood contact switch - F266 => [ Hood contact switch - F266 ] See Image Below.

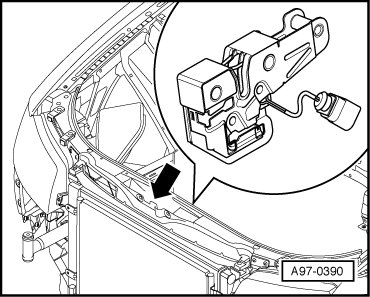

Hood contact switch - F266






• In lock carrier

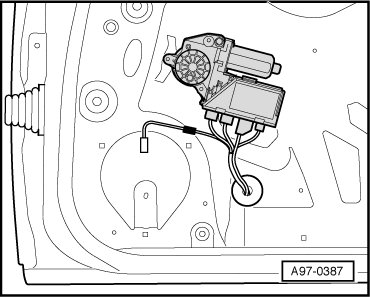

Door control unit, front passenger's side
- J387






• Integrated in electric window motor


Anti-theft alarm ultra-sonic sensor - G209






• Integrated in front interior light

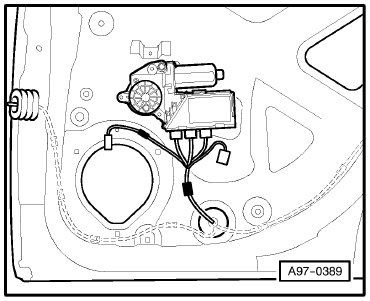

Door control unit, rear right - J389






• Integrated in electric window motor

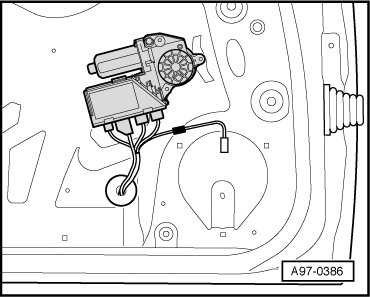

Door control unit, driver's side - J386






• Integrated in electric window motor

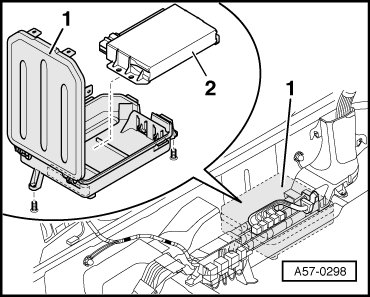

Convenience system central control unit - J393






• At sill panel, front left


Door control unit, rear left - J388






• Integrated in electric window motor

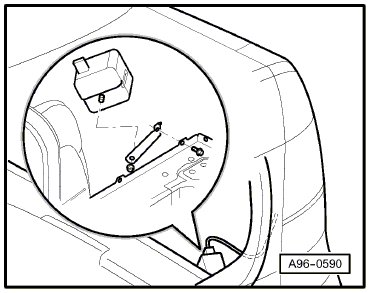

Alarm horn - H12






• In luggage compartment, right, behind side trim


Tank filler flap release motor - V155






• In luggage compartment, right, behind side trim

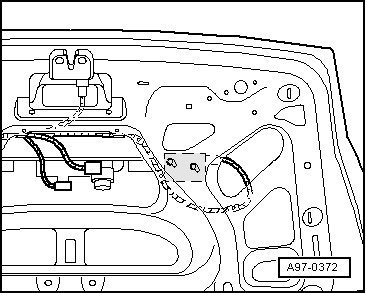

Trunk lid release motor - V139






• In luggage compartment, at lock carrier
