Over-Center Spring, Removing and Installing

Over-center spring, removing and installing
Special tools and workshop equipment required





^ T40025 Installation clamp

Removing
Remove driver's storage compartment:

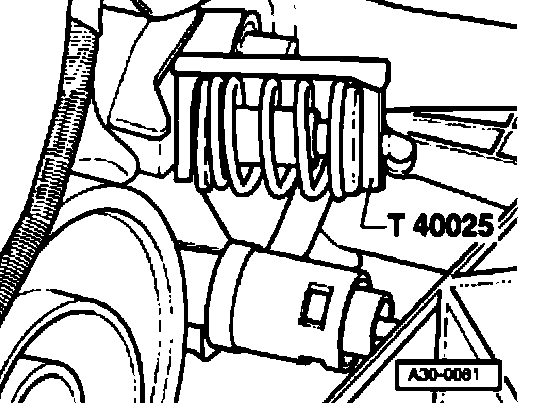

- Tension over-center spring with clutch pedal and press on installation clamp T40025.
- Bring clutch pedal to rest position and take out over-center with spring and installation clamp T40025 from below.

Installing
- Pull clutch pedal into passenger compartment.
Installation position over-center spring:
^ Black end over-center spring points toward clutch pedal.

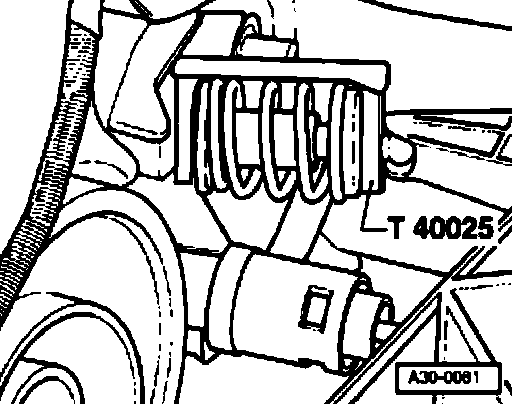

- Insert over-center spring with installation clamp T40025, depress clutch pedal and pull out installation clamp.
