Camshaft Position Sensor: Locations
Component Locations, Overview

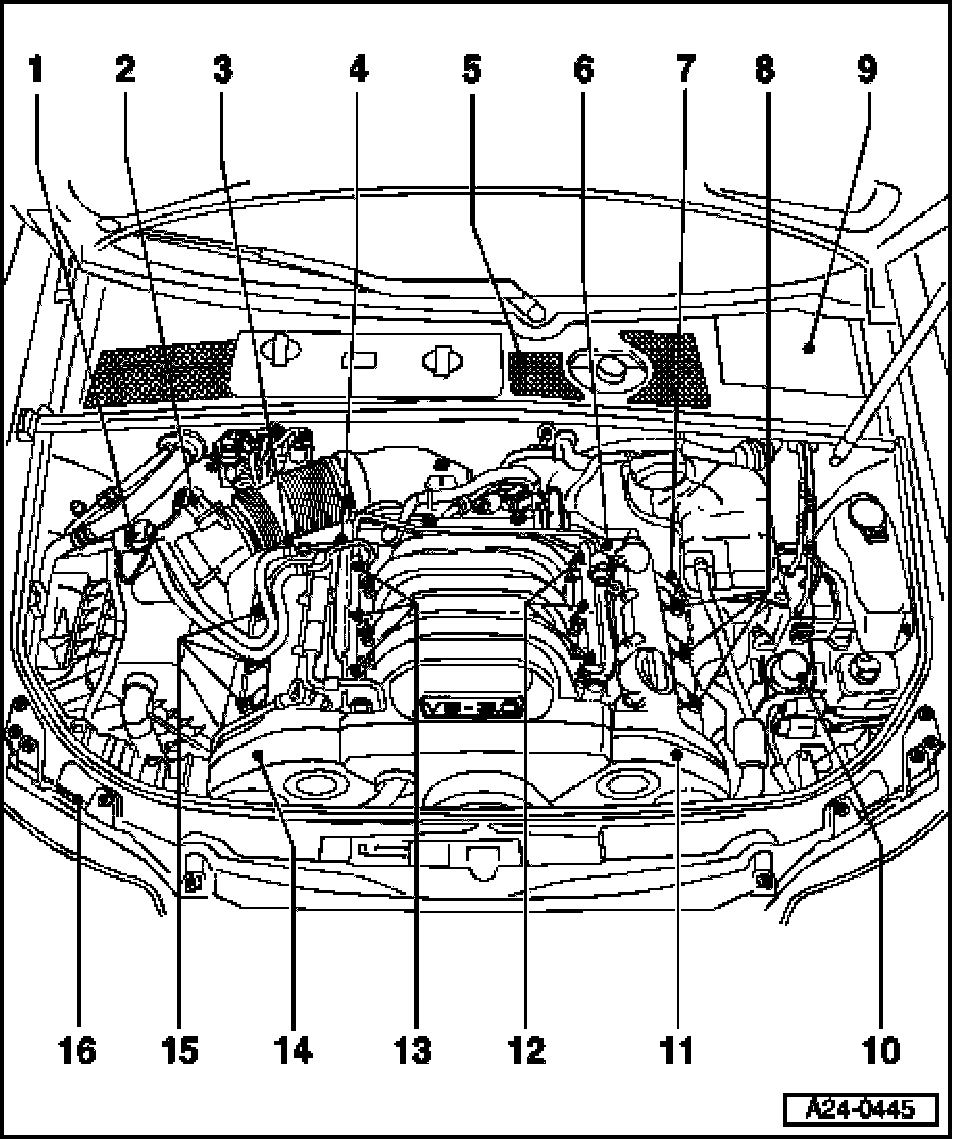

Component Location, Overview (Part 1):
Component Location, Overview (Part 2):
1 - Solenoid valve 1 for Evaporative emission (EVAP) canister purge regulator valve -N80-
2 - Mass air flow (MAF) sensor -G70-
- With intake air temperature (IAT) sensor -G42-
3 - Camshaft position (CMP) sensor 3 -G300-
- For exhaust camshaft
- Cylinder bank 1
4 - Camshaft Position (CMP) sensor -G40-
- For intake camshaft
- Cylinder bank 1
5 - Pressure sensor for brake booster pressure sensor -G294-
- For vehicles with automatic transmission
6 - Camshaft position (CMP) sensor -G163-
- For intake camshaft
- Cylinder bank 2
7 - Camshaft position (CMP) sensor 4 -G301-
- For exhaust camshaft
- Cylinder bank 2
8 - Ignition coils with output stage, bank 2
- Ignition Coil 4 with Power Output Stage -N292-
- Ignition Coil 5 with Power Output Stage -N323-
- Ignition Coil 6 with Power Output Stage -N324-
9 - Electronics box (plenum chamber)
- Location for Motronic engine control module (ECM) -J220-
- Location for Motronic engine control module (ECM) power supply relay -J271-
- Location for secondary air injection (AIR) pump relay -J299-.
- Location for fuse S130 for secondary air pump
- Location for brake booster relay -J569-
10 - Brake system vacuum pump -V192-
- For vehicles with automatic transmission
11 - Valve 2 for camshaft adjustment -N208-, Camshaft adjustment valve 2 (exhaust) -N319-
- Cylinder bank 2
12 - Injectors, bank 2
- Cylinder 4 Fuel Injector -N33-
- Cylinder 5 Fuel Injector -N83-
- Cylinder 6 Fuel Injector -N84-
13 - Injectors, bank 1
- Cylinder 1 Fuel Injector -N30-
- Cylinder 2 Fuel Injector -N31-
- Cylinder 3 Fuel Injector -N32-
14 - Valve 1 for camshaft adjustment -N205- Camshaft adjustment valve 1 (exhaust) -N318-
- Cylinder bank 1
15 - Ignition coils with output stage, bank 1
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
16 - Secondary air injection (AIR) pump motor -V101-
17 - Heated Oxygen Sensor (HO2S) -G39- before catalytic converter and Oxygen sensor (O2S) heater -Z19-
- Bank 1,sensor 1
- Constant Heated Oxygen Sensor (HO2S)
18 - Bracket for connectors
- For right side of vehicle
19 - Oxygen sensor (O2S) behind three way catalytic converter (TWC) -G130- behind catalytic converter and Oxygen Sensor (O2S) Heater 1 -Z29-
- Bank 1,sensor 2
20 - Engine coolant temperature (ECT) sensor -G62-
- For engine control module
- On coolant line behind cylinder head, bank 1
- With Engine coolant temperature (ECT) sensor -G2-
- If necessary, release cooling system pressure before removal
21 - Throttle valve control module -J338-
- With Throttle drive (power accelerator activation) -G186-, Angle sensor -1- for throttle drive (power accelerator activation) -G187- and Angle sensor -2- for throttle drive (power accelerator activation) -G188-
- Carry out adaptation on replacing
22 - Secondary air injection (AIR) solenoid valve -N112-
23 - Engine speed (RPM) sensor -G28-
- In gear case above ring gear
24 - Bracket for connectors
- For left side of vehicle
25 - Accelerator pedal position sensor -G79- and sensor -2- for accelerator pedal position -G185-
26 - Fuel pump (FP) relay -J17-
27 - Brake light switch -F- and brake pedal switch (cruise control/diesel direct fuel injection -F47-
28 - Clutch vacuum vent valve switch -F36-
29 - Instrument cluster:
- With exhaust Malfunction Indicator Lamp (MIL) -K83-.
- With Electronic Power Control (EPC) Warning Lamp -K132-.
30 - Oxygen Sensor (O2S) 2 Behind Three Way Catalytic Converter (TWC) -G131- behind catalytic converter and oxygen sensor (O2S) heater 2 -Z30-
- Bank 2, sensor 2
31 - Heated oxygen sensor (HO2S) before catalytic converter -G108- and oxygen sensor (O2S) 2 heater -Z28-
- Bank 2, sensor 1
- Constant heated oxygen sensor (HO2S)
32 - Fuel pressure regulator
33 - Knock sensor (KS) 2 -G66-
- Bank 2
- Under intake manifold
34 - Intake manifold change-over valve -N156-
35 - Knock sensor (KS) 1 -G61-
- Cylinder bank 1
- Under intake manifold
36 - Ground connection
- Right hand side engine support
37 - Not installed
