Secondary Air System Components, Removing and Installing

A - Secondary Air Injection (AIR) pump motor





^ Loosen bolt - 1 -, approximately two rotations engine compartment top (visible through the opening of the dip stick at bracket of intake manifold).

Notes: Diagram illustrates the bracket and Secondary Air Injection (AIR) pump on an uninstalled engine for photo/technical reasons.

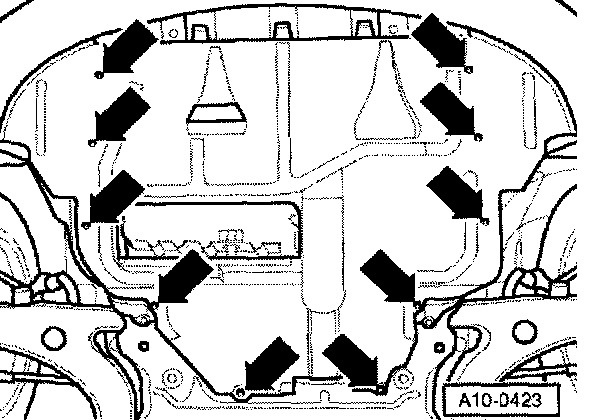

^ Remove center noise insulation.

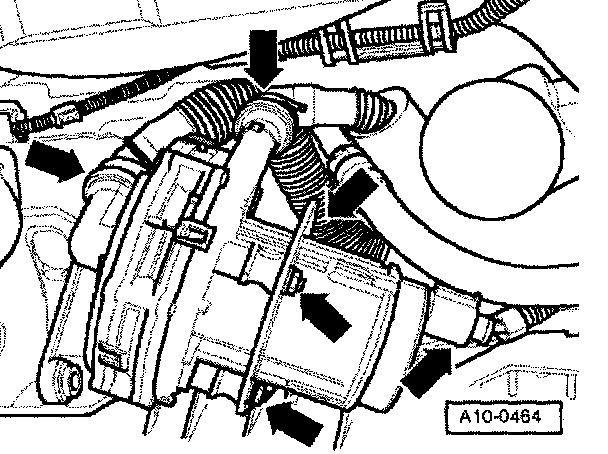

^ Disconnect connector and hoses at Secondary Air Injection (AIR) pump.

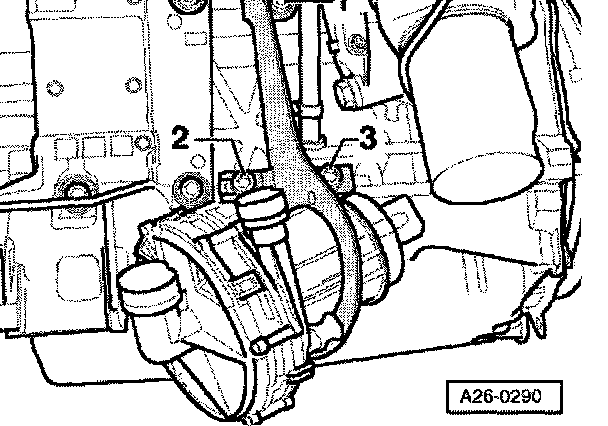

^ Remove bolts - 2 - and - 3 - of bracket for Secondary Air Injection (AIR) pump.
^ Swing bracket to side and remove Secondary Air Injection (AIR) pump downward.

B - Combination valve

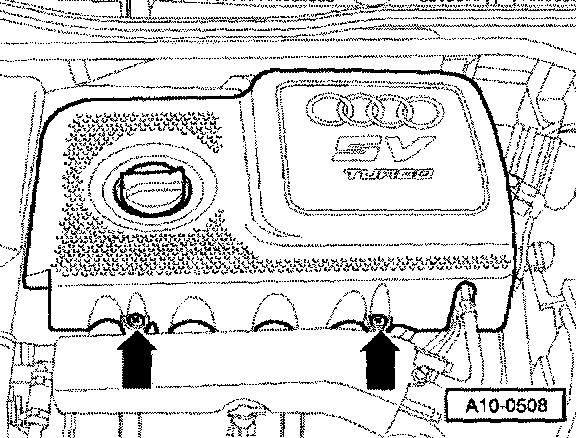

^ Remove engine cover.





^ Remove vacuum hose -1 - and connecting pipe - 2 - at combination valve.
^ Unscrew combination valve from bracket (arrows).
