A/C - Control Knob Covers Loose/Fall Off

87 08 17

2005612/4

December 8, 2008.

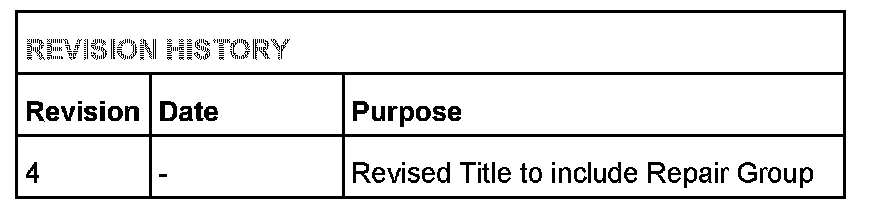

Supersedes Technical Service Bulletin Group 87 number 07-08 dated August 10, 2007 for reasons listed below.





Affected Vehicles

87 A/C control head, installing control knob covers





Condition

Figure 1:

Air conditioning (A/C) control knob covers come loose or fall off.

Technical Background

Production Solution

No change.

Service

Do not replace the control head for this condition.

1. Obtain a new cover for the affected switch.

- Part No.: 8N0 819 681C B98 with "OFF" symbol (B98= color code) (Figure 1, A)

- Part No.: 8N0 819 682C B98 with "FAN" symbol (B98= color code) (Figure 1, B)

2. With old cover removed, install new cover as follows:

a. Place cover on top of switch.

b. Align bottom of cover with switch and press firmly to snap into place.

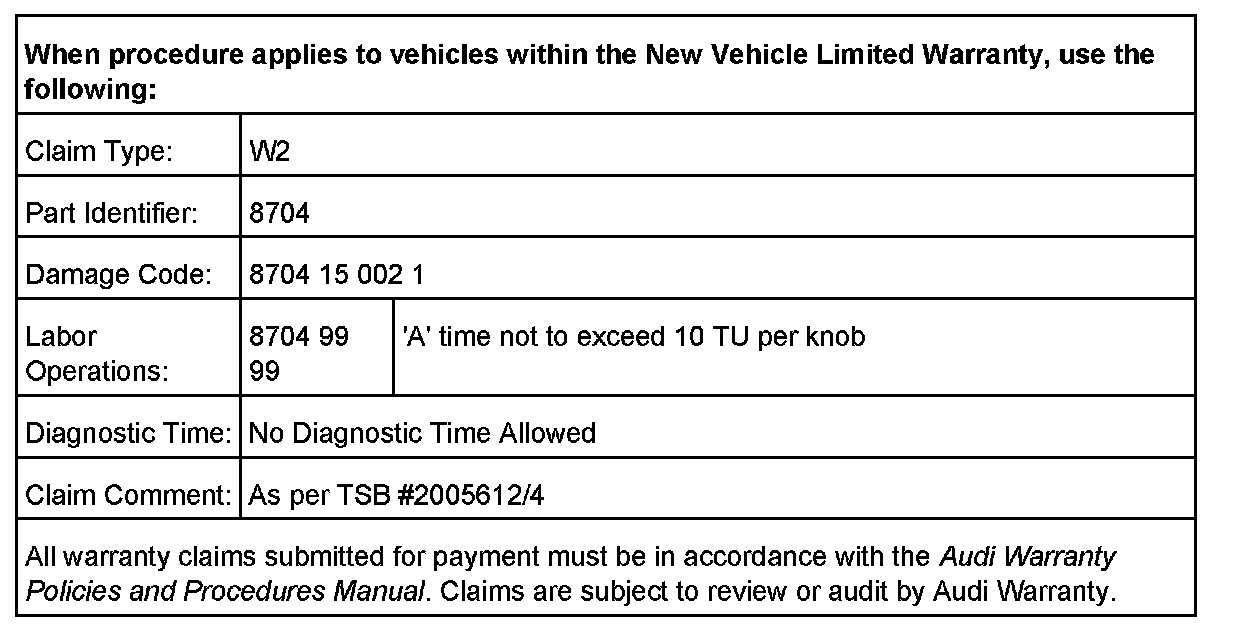

Warranty

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
