Relay Box: Service and Repair

Central Electric Unit And Relay Carrier, Removing And Installing

CAUTION: Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off.
- Disconnect the battery Ground (GND) strap.
- After reconnecting battery, re-code and check operation of anti-theft radio. Also check operation of clock and power windows according to Owner's Manual.


Removing
- Remove storage compartment on driver's side.

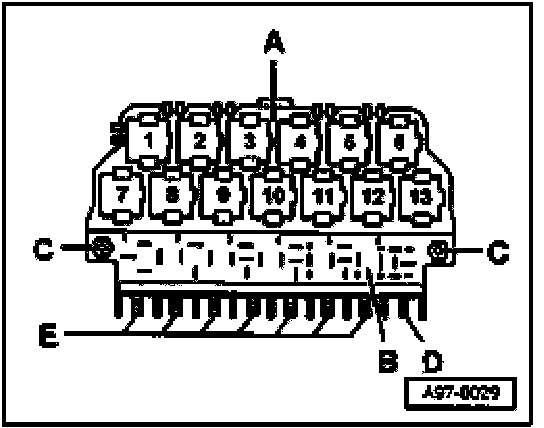

- Loosen bolts -C- and threaded connections -D- and -E-.
- Remove relays and control modules.
- Remove central electric unit -B- and relay carrier -A- from below.

Installing
- Install in reverse order of removal.

NOTE: Always refer to the applicable wiring diagram for identification of connections on central electric and relay carrier.
