Radiator Cooling Fan Motor: Service and Repair

Coolant fan motor, replacing
Special Tools and Equipment

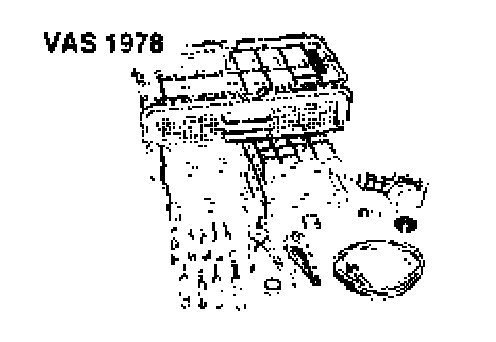

^ VAS1978 wiring harness repair kit

Note:
^ Coolant FC (Fan Control) Control Module and coolant fan motor are supplied as a replacement part without harness connector.
^ Repairs to wiring harnesses and connectors must only be performed using the VAS1978 wiring harness repair kit.





Detailed instructions on how to use VAS1978 are supplied with the repair kit.
The information also explains how to repair open circuits and faulty connectors.
