DTC 17135

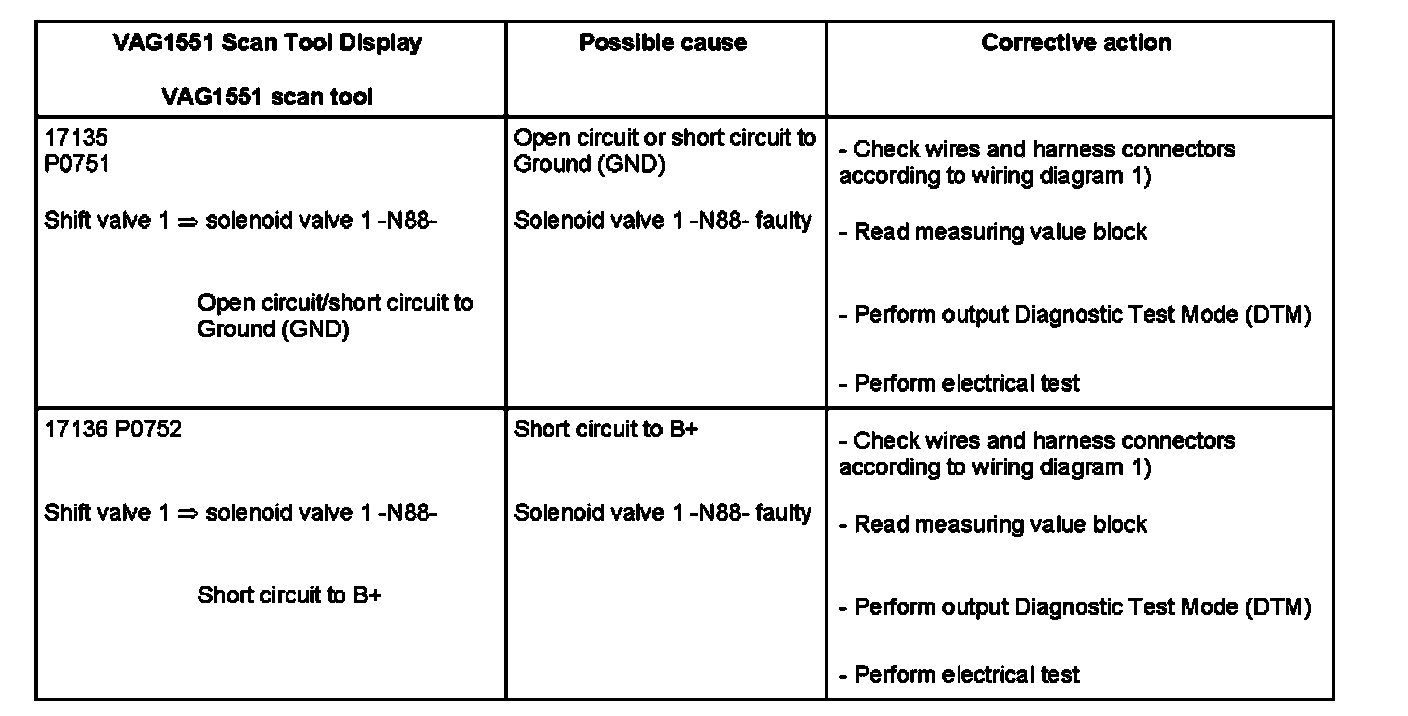

DTC 17135 / P0751








Note:
Notes and footnotes of DTCs 17135 / P0751 and 17136 / P0752 can be found on the next DTC.

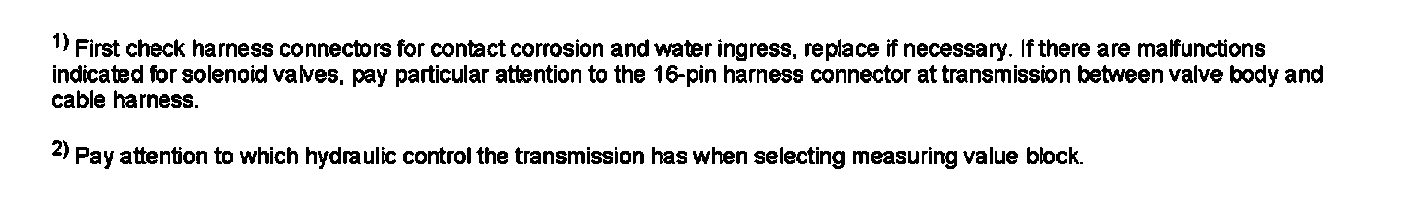

1) First check harness connectors for contact corrosion and water ingress, replace if necessary. If there are malfunctions indicated for solenoid valves, pay particular attention to the 16-pin harness connector at transmission between valve body and cable harness.

2) Pay attention to which hydraulic control the transmission has when selecting measuring value block. For a more detailed description; Refer to "Read measuring value block".

Note: For malfunction recognition of DTCs 17135 / P0751 and 17136 / P0752

^ Short circuit to B+ is already checked with ignition switched on. During operation, all malfunction types are recognized.
