01V, 5 Speed A/T

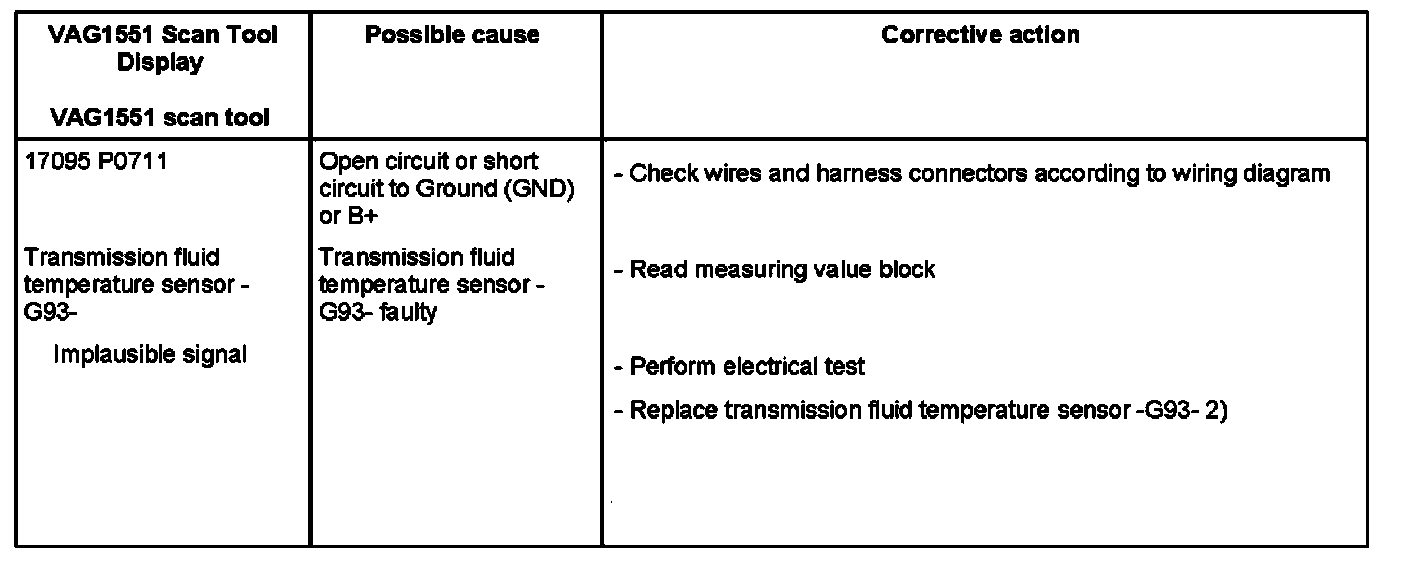

DTC 17095 / P0711








Note:

The footnotes and notes for DTC 17095 / P0711 can be found on the next DTC.

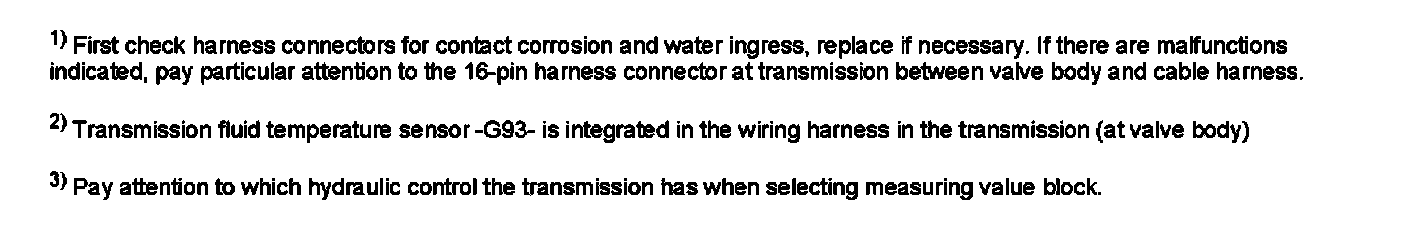

^ 1) First check harness connectors for contact corrosion and water ingress, replace if necessary. If there are malfunctions indicated, pay particular attention to the 16-pin harness connector at transmission between valve body and cable harness.
^ 2) Transmission fluid temperature sensor -G93- is integrated in the wiring harness in the transmission (at valve body) 3) Pay attention to which hydraulic control the transmission has when selecting measuring value block. For a more detailed description; Refer to "Read measuring value block".

Note:
For DTC 17095 / P0711:
^ Requirement for malfunction recognition: The transmission oil temperature does not increase after starting engine or makes temperature leaps.
