Mounting Bracket For Seat Cushion, Removing and Installing

Mounting Bracket For Seat Cushion, Removing And Installing

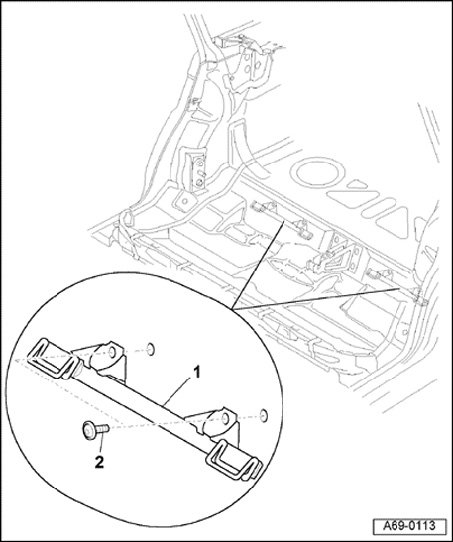

1 - Mounting bracket for seat cushion
- Remove rear seat bench.
- Remove screws - 4 - (2x).
2 - Bolts (4x)
- Tightening torque: 30 Nm (22 ft lb)

NOTE:
- Slide mounting tabs behind mounting bracket for seat cushion - 1 - when installing the solid backrest.
- When retrofitting mounting brackets for seat cushion, on some vehicles the mounting tabs must be flattened to approx. 3 mm using a vise.
- When installing, watch for freedom of movement of the lap belt with retractor, and if necessary, turn lap belt with retractor.
