Spring Cover, Removing and Installing

Spring Cover, Removing And Installing

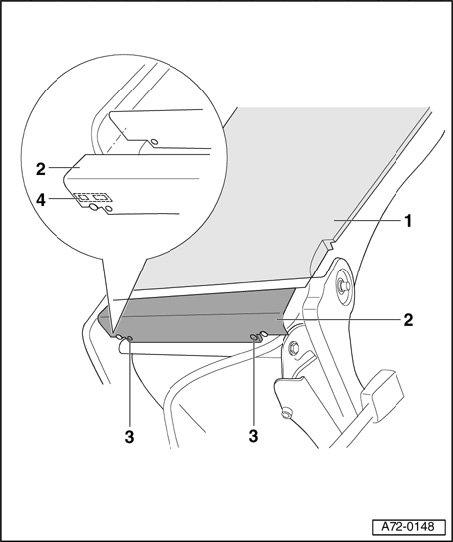

1 - Backrest
2 - Spring cover

Removing
- Move seat fully up.
- Unbolt two bolts - 3 - on left and right of spring cover - 2 -.
- Pull off spring cover - 2 - from right side of seat.
- Then pull spring cover toward right so that clip - 4 - releases from left of spring cover.
- Remove spring cover - 2 - from seat.







Installing
- Install left side of spring cover - 1 - with clip - 4 -.
- Push spring cover - 2 - onto right side until it engages.
- Tighten both bolts - 3 -.

3 - Bolts (2x)
4 - Clip
