Rear ABS Wheel Speed Sensor Rotor (AWD), Removing and Installing

ABS wheel speed sensor, removing and installing
Removing
- Switch off ignition.
- Lift rear bench seat out of locking mechanism.

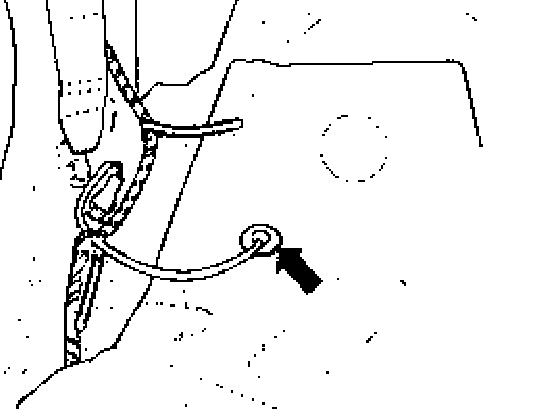

- Disconnect ABS wheel speed sensor harness connectors and push out grommet (arrow).
- Raise vehicle.
- Pull ABS wheel speed sensor out of wheel bearing housing.
- Disconnect ABS wheel speed sensor wiring from retainers.
- Remove ABS wheel speed sensor wiring downward together with grommet.
When installing pay particular attention to the following points:
- Replace clamping sleeve.
- Connect ABS wheel speed sensor wiring and snap grommets in retainers.
