Trim Section and Switch-Panel Trim, Removing

Trim Section And Switch-panel Trim, Removing

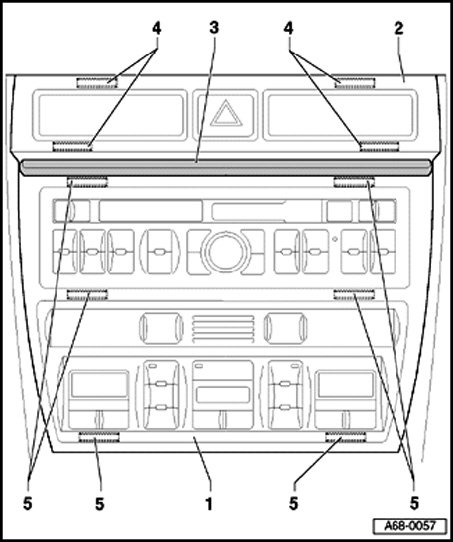

1 - Trim section
- Open radio flap - 3 -.
- Open front ashtray.
- Starting at bottom, carefully unclip trim section - 1 - at fasteners - 5 - (6x).
2 - Switch-panel trim
- Starting at bottom, carefully unclip switch-panel trim - 2 - at fasteners - 4 - (4x).
3 - Radio flap
4 - Fasteners
5 - Fasteners.
