Front Interior Light, Removing and Installing

Front Interior Light, Removing and Installing


NOTE:

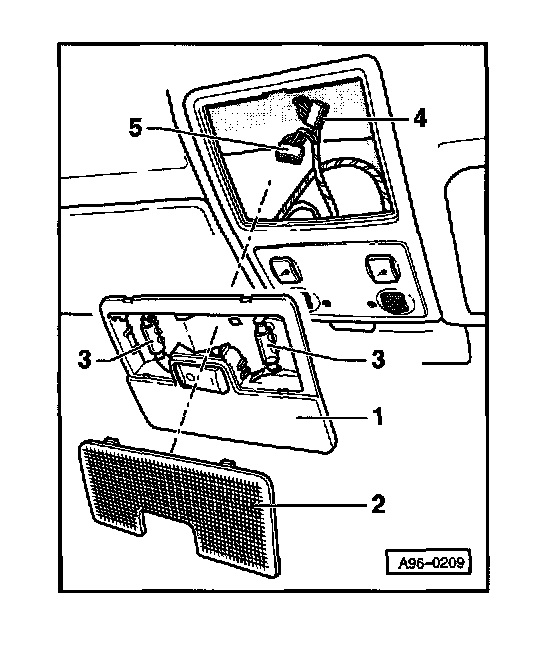

- Only lever off diffusion lens -2- to replace bulb.
- Bulb -3- for interior light: 12 V, 10 W (2x)


Removing
- Carefully lever out interior light -1- using a flat screwdriver.
- Disconnect electrical harness connectors -4- and -5-.

Installing
Installation is reverse of removal, noting the following:
- Hook in interior light -1- and clip in on opposite side.
