Lighting - Hazard Switch Binds After Replacement

94 08 43

2012547/2

November 14, 2008.

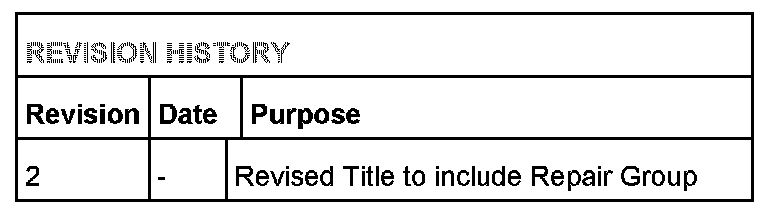

Supersedes Technical Service Bulletin Group 94 number 06-05 dated July 11, 2006 for reasons listed below.

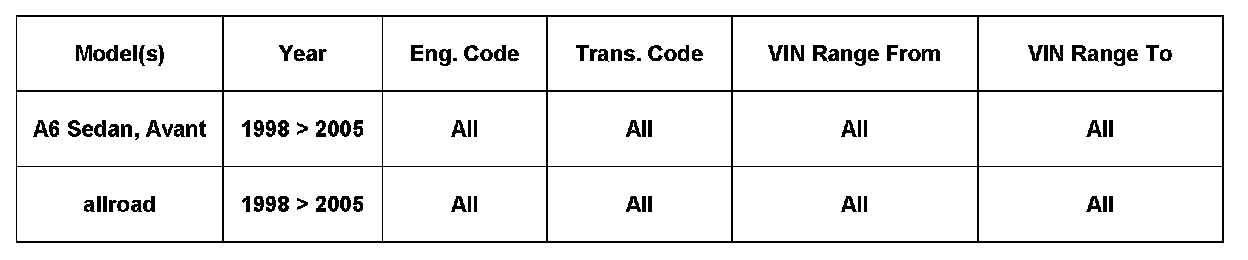

Affected Vehicles

94 Replacement Emergency Flasher Switch Button Binds After Installation.

Condition





After installing a replacement emergency flasher switch, part number 4B0 941 509D B98, the switch button binds.

Technical Background

The spring clips on the side of the emergency flasher switch may be bent in a way that causes the switch button to bind.

Production Solution

Not Applicable.

Service

Bend the spring clips to reduce retaining tension for the emergency flasher switch. See photos.

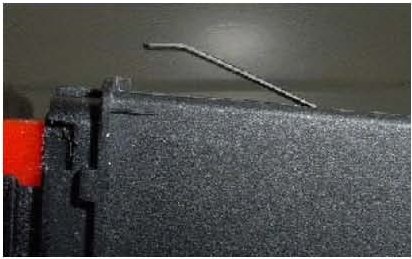

Shape of spring clip from part stock.

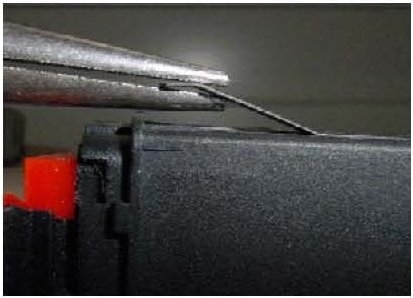

Bending spring clip.

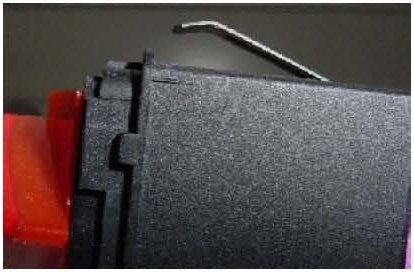

Shape of spring clip after rework.

Warranty

This TSB is informational only and not applicable to any Audi warranty.

All part and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Dept. and service manuals for the latest information.
