Fuel Filter: Locations

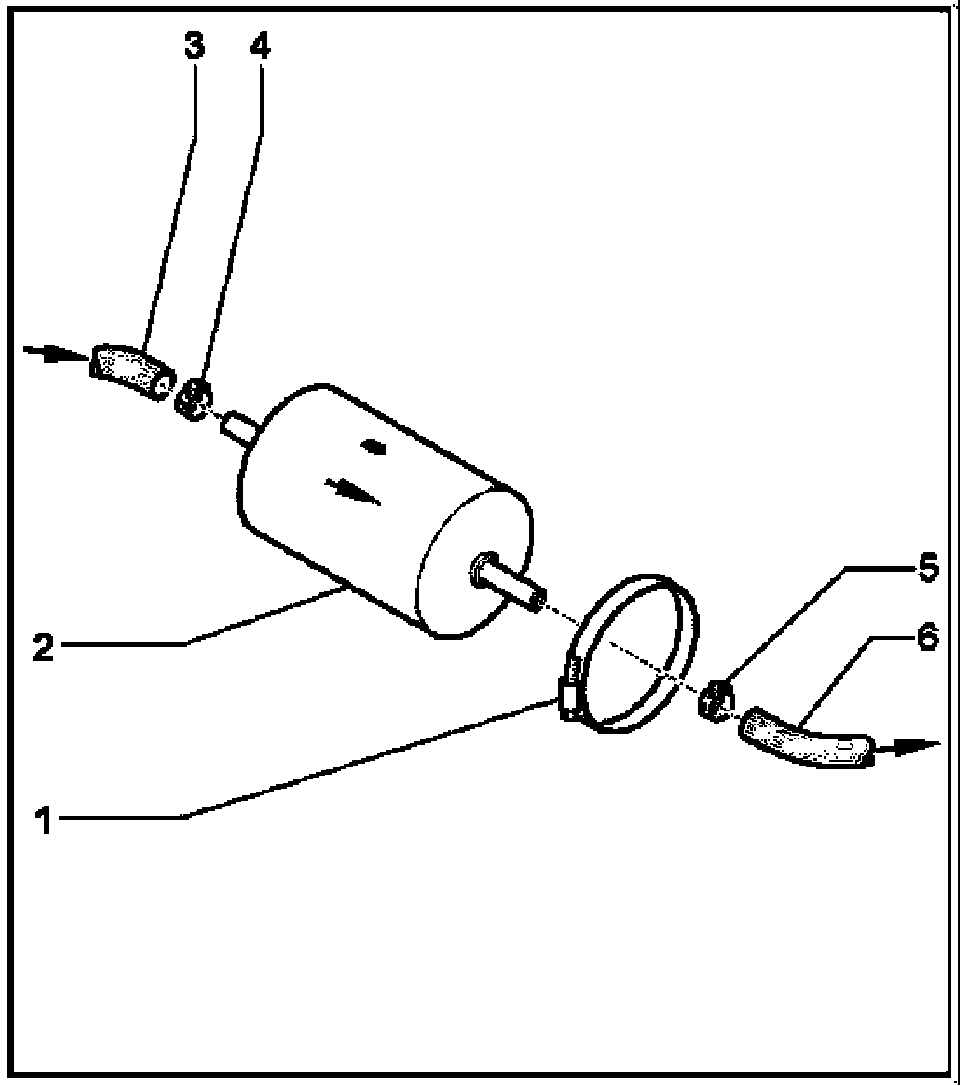

Fuel Filter - Component Overview


Note:

The fuel filter is located on the right front side of the fuel tank.







1. Hose Clamp
- For fuel filter.
- Tighten to 0.8 Nm.

2. Fuel Filter
- Direction of flow is indicated by - arrows -.
- Hose clamp - 1 -, fastens to fuel tank.
- Connections are not interchangable.

3. Fuel Hose
- From fuel pump.

4. Hose Clip
- Corresponding

5. Hose Clip
- Corresponding

6. Fuel Hose
- To the fuel distribution pipe.
