5 Speed Automatic 01V

Erase DTC Memory (scan tool function 05)
Requirement:
^ DTC memory checked.

After DTC memory has been checked:

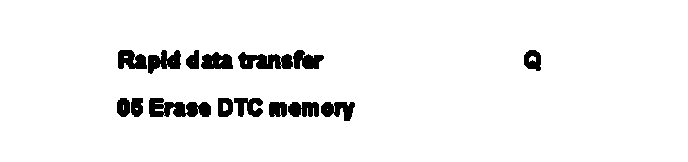

Indicated on display:
^ Press keys 0 and 5. (The function "Erase DTC memory" is entered with 05.)





Indicated on display:
^ Confirm entry with key Q.

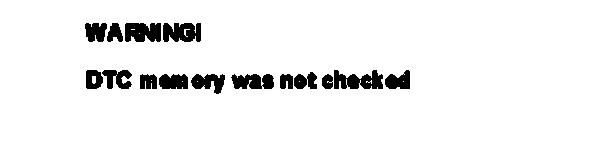

Indicated on display:

Note: If the ignition was switched off e.g. between checking the DTC memory and erasing DTC memory, the DTC memory is then not erased.

^ Exactly adhere to work sequence. The DTC memory must first be checked.

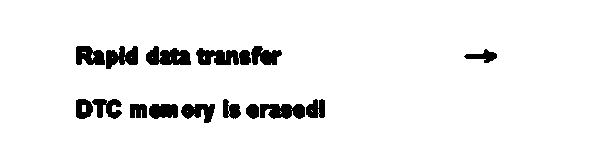

Indicated on display:
(The DTC memory will be erased approximately 5 seconds. after the display appears.)
The DTC memory is now erased.

Note: Wait about I minute before again checking the DTC memory.

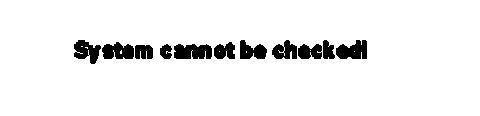

Indicated on display:





Print out with printer switched on:
Control module -J217- was not given sufficient time to recognize faults.
^ Waft about 1 minute before again checking the DTC memory.
^ After checking and erasing the DTC memory, carry out a test drive and again check the DTC memory.
When the DTC memory is checked, the following display should appear:
"No DTC recognized!"

"Manufacturer does not provide this information"
