Measured Value Block, Reading

Measured Value Block, reading

CAUTION: Please observe safety precautions.

Test procedure
^ Connect VAS 5051 Vehicle Diagnosis, Measurement and Information System and select vehicle system "02 Transmission Electronics". Ignition must be switched on.
or, depending on the desired operation:
^ Start engine.





Display on VAS 5051

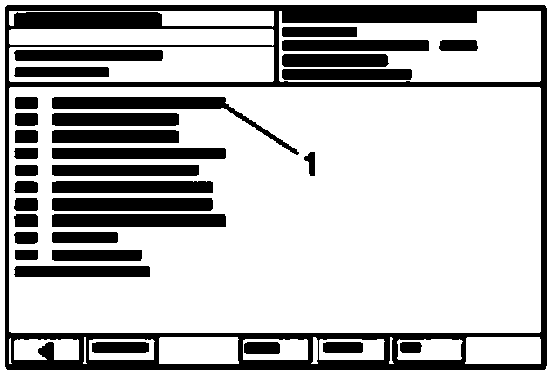

^ Touch -1- diagnostic function "08 Read Measured Value Block".





Display on VAS 5051:
^ 1 - Enter display group Max. input value = 255.
^ On key pad -2- enter desired 3-digit display group number; Refer to List of Display Groups, and confirm entry by touching Q button.

Example:
^ Enter "001" for "Display group number 001" and confirm by touching Q button.





Display on VAS 5051 for display group 001 to 255:
^ 1 - Display group X
^ 2 - Display field 1
Display field 2
Display field 3
Display field 4

Note:
^ If a display field is not being used, there will be no display.

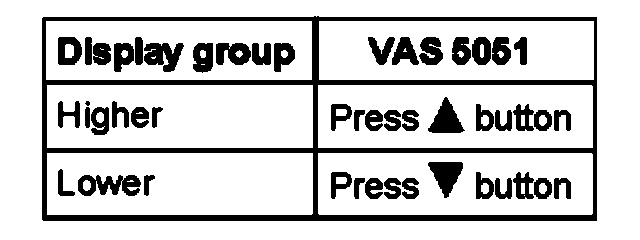

^ To switch to another display field, proceed as follows:





^ End function "08 Read Measured Value Block" by touching 4 button.
