5 SPD. A/T 01L AWD

Tiptronic Switch -F189-, removing and Installing
Removing
^ Remove center console and extension.
^ Remove handle for selector lever; Refer to Fig. 7.

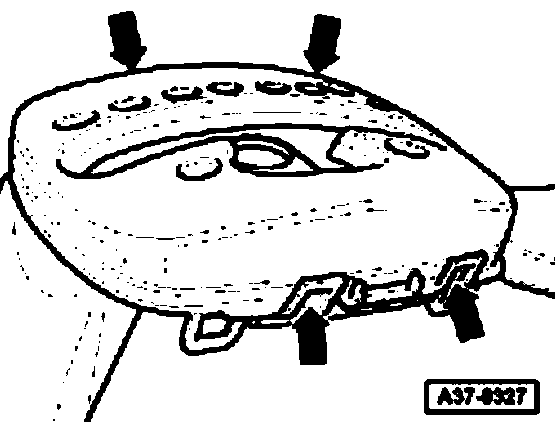

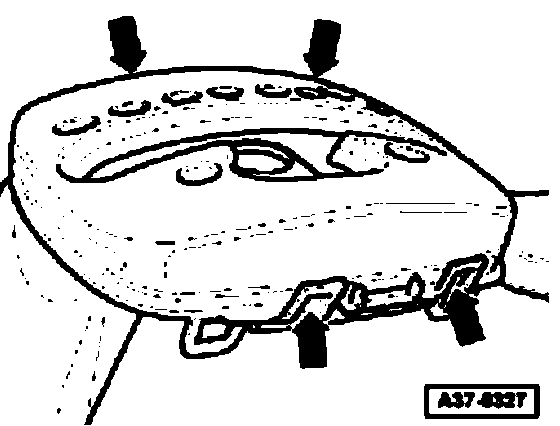

^ Carefully disengage 4 clips -arrows- and remove cover upward.

Note: If clips are damaged or broken, replace the applicable components.

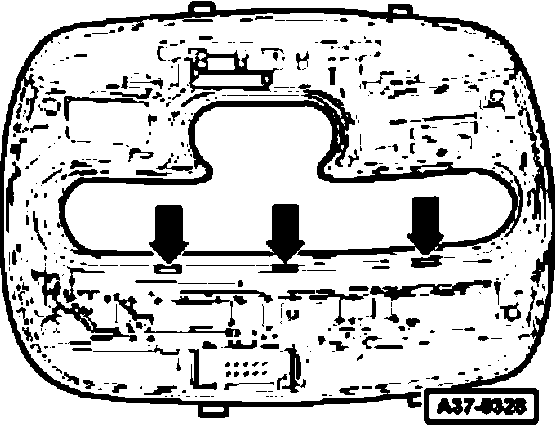

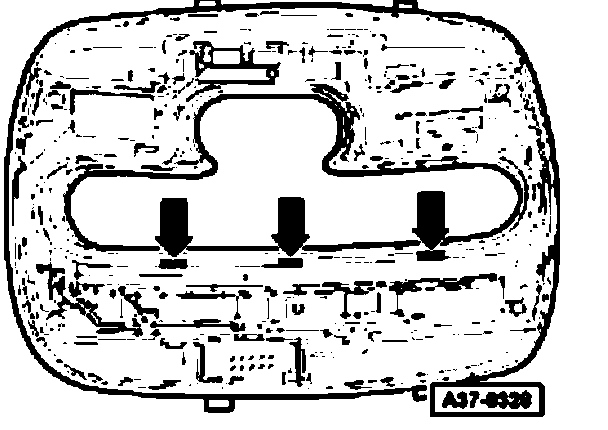

^ Lift out printed circuit board with small screwdriver over 3 clips -arrows-
^ Remove printed circuit board with integrated Tiptronic switch.

Note: If the printed circuit board is glued into the cover, replace the complete cover with printed circuit board

Installing





^ Insert printed circuit board with integrated Tiptronic switch into cover of shift mechanism.
^ By carefully pressing on the printed circuit board it must snap into the cover.

Note: The 3 clips -arrows- must engage visibly above the printed circuit board.





^ Place cover onto the guide of sliding cover and snap clips -arrows- in place.
^ Install handle for selector lever; Refer to Fig. 7
^ Install center console and extension.

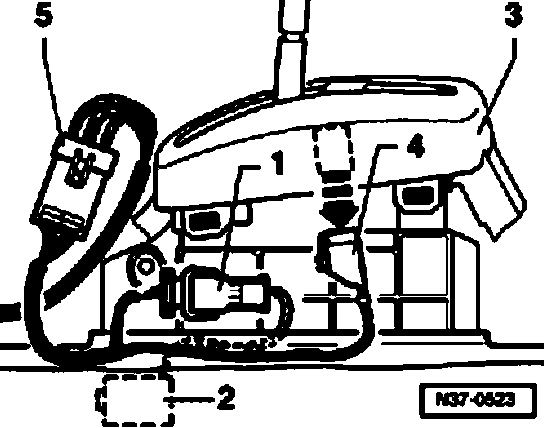

Fig. 6 Wiring for Shift Lock Solenoid Switch, selector lever Illumination and Tiptronic, removing and Installing:

Removing
^ Remove center console and extension.
^ Disconnect connector -1- for Shift Lock Solenoid switch -2- (not visible in illustration).
^ Unclip and lift out cover -3-.
^ Remove connector -4- for transmission range position and Tiptronic in direction of arrow.
^ Disconnect wiring at connector -5-.

Installing
Install in reverse order of removal.

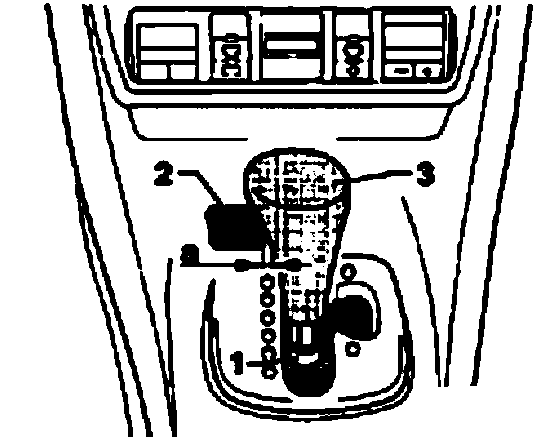

Fig. 7 Handle for selector lever, removing and Installing:

Removing
^ Move selector lever to position "T'
^ Push sleeve -1- down to stop.
^ Pull button -2- to stop (dimension "a") out of selector lever handle -3 and pull handle upward.
Dimension "a" = 3 mm

Installing
^ Move selector lever to position "3" .
^ Carefully pull out knob -2- to dimension "a" out of selector lever handle -3-.
^ At the same time attach handle -3- with knob -2- in driving direction on selector lever to stop.
^ Turn handle -3- until knob -2- is pointing to driver. This causes handle to engage into grove of selector lever.





^ Attach handle -3- completely to selector lever. It must engage into circular grove of selector lever.
^ Push in knob -2- in handle of selector lever -3-.
^ Pull up sleeve -1- until it engages in handle -3-.

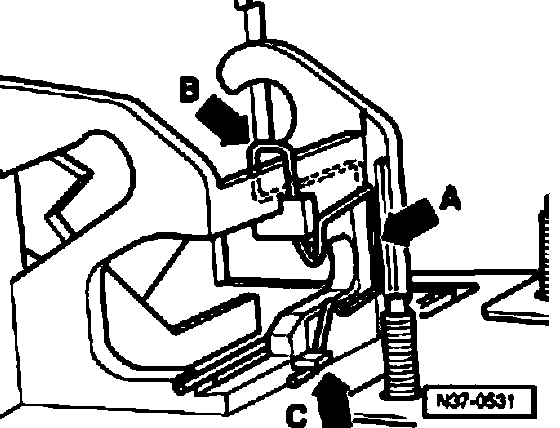

Fig. 8 Removing and Installing lock cable securing spring:

Removing
^ To remove lock cable, lift securing spring upward -arrow B-.
^ Disengage spring -arrow A- at attachment hook -arrow C- and remove upward.

Installing
^ Insert spring from above -arrow B- and attach to attachment hook -arrow C-.
^ Adjust spring to fit evenly in groove -arrow A-.
^ To install lock cable, lift spring slightly arrow B-.
