Terminal Identification

Connecting VAG 1598 test box/20 and testing the ESP system
- Switch off ignition.
- Remove ABS control module (w/EDL) -Jl04-
- Unplug multi-pin connector from ABS control module (w/EDL) -Jl04-.

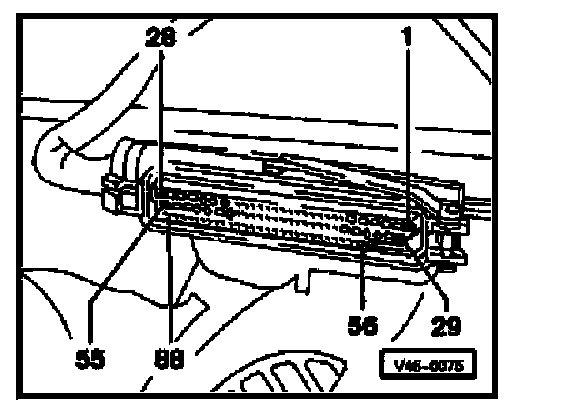

- Check multi-pin connector between wiring harness and ABS control module (w/EDL) -J104-.





The socket designations on VAG 1598 test box/20 are identical with the contact designations on ABS control module (w/EDL) -J104- and the designations of the connector on the wiring harness

Refer to Wiring Diagrams
- Connect VAG 1598 test box/20 to multi-pin connector on harness.

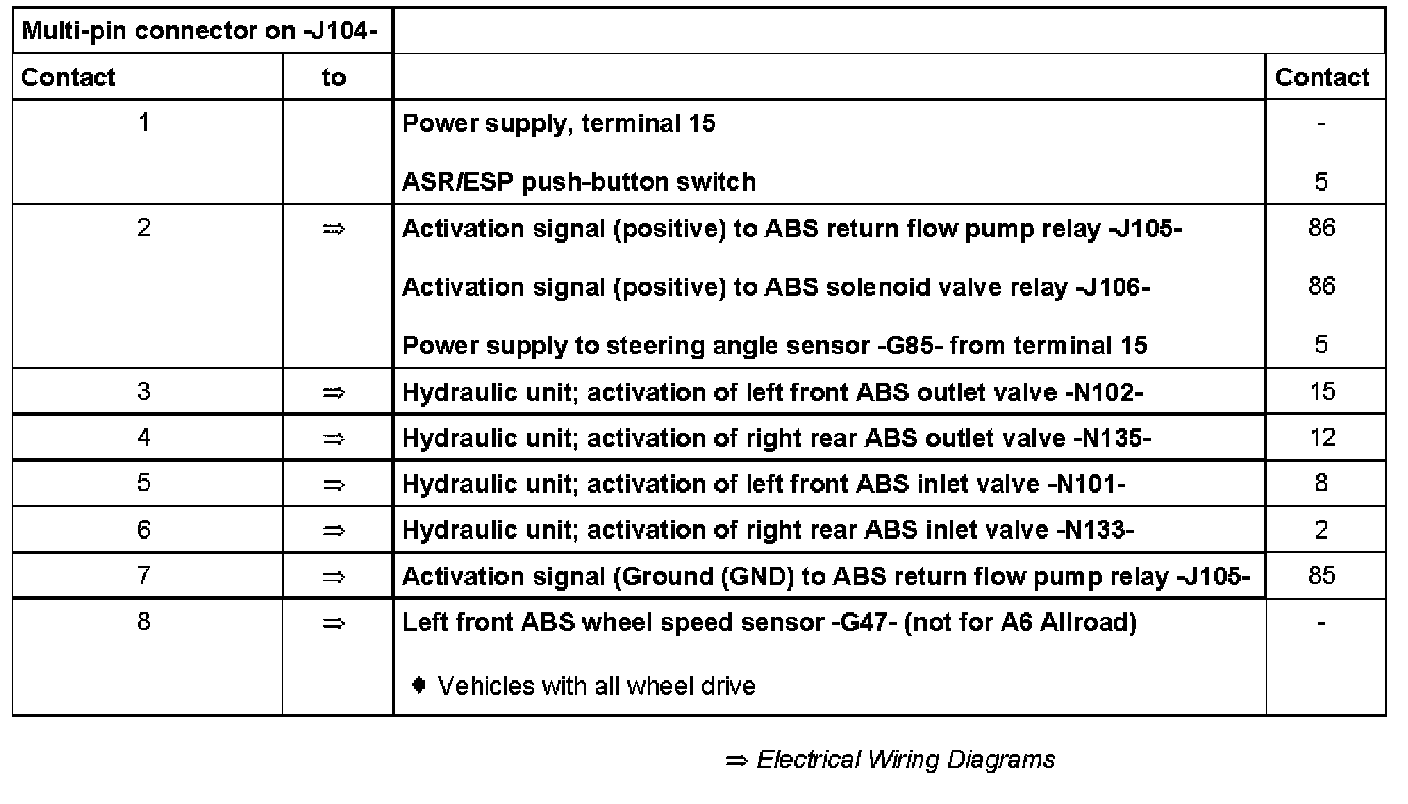

Contact 1-8:

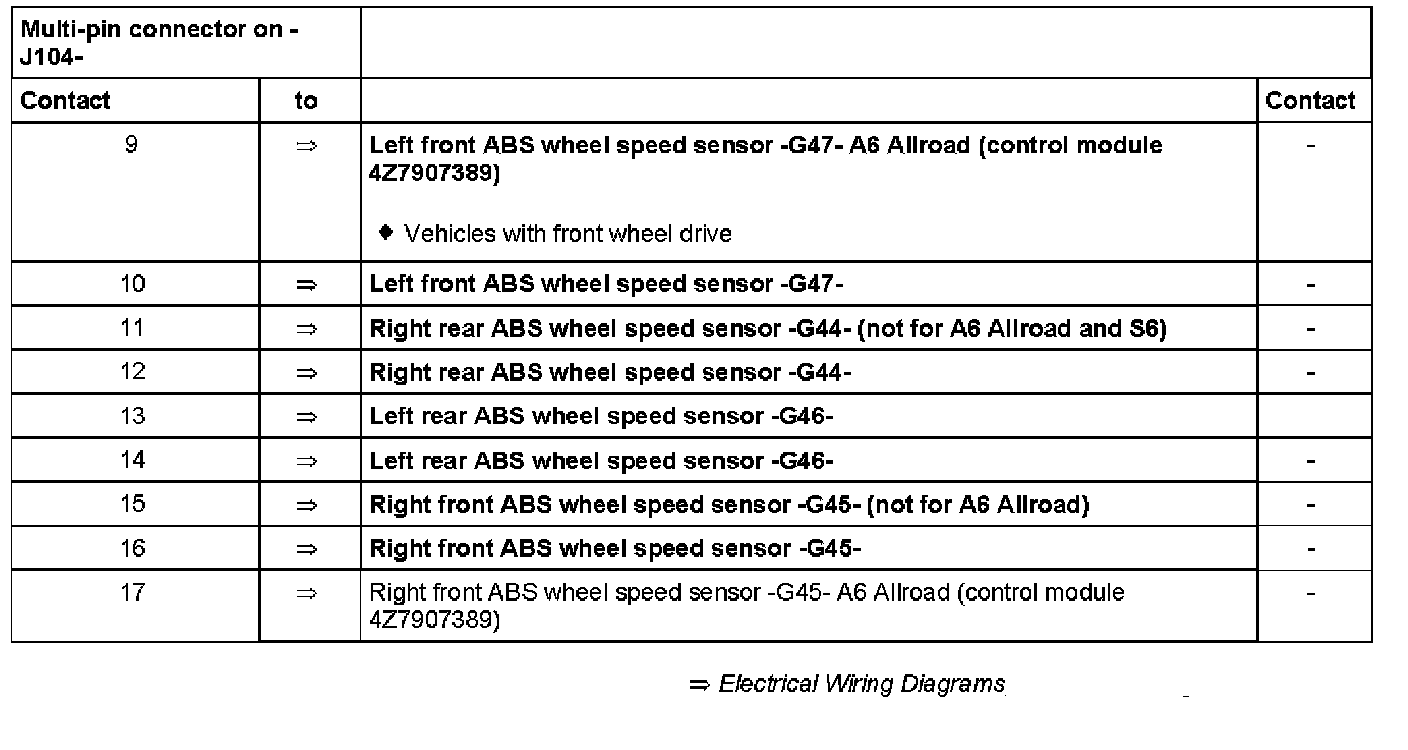

Contact 9-17:

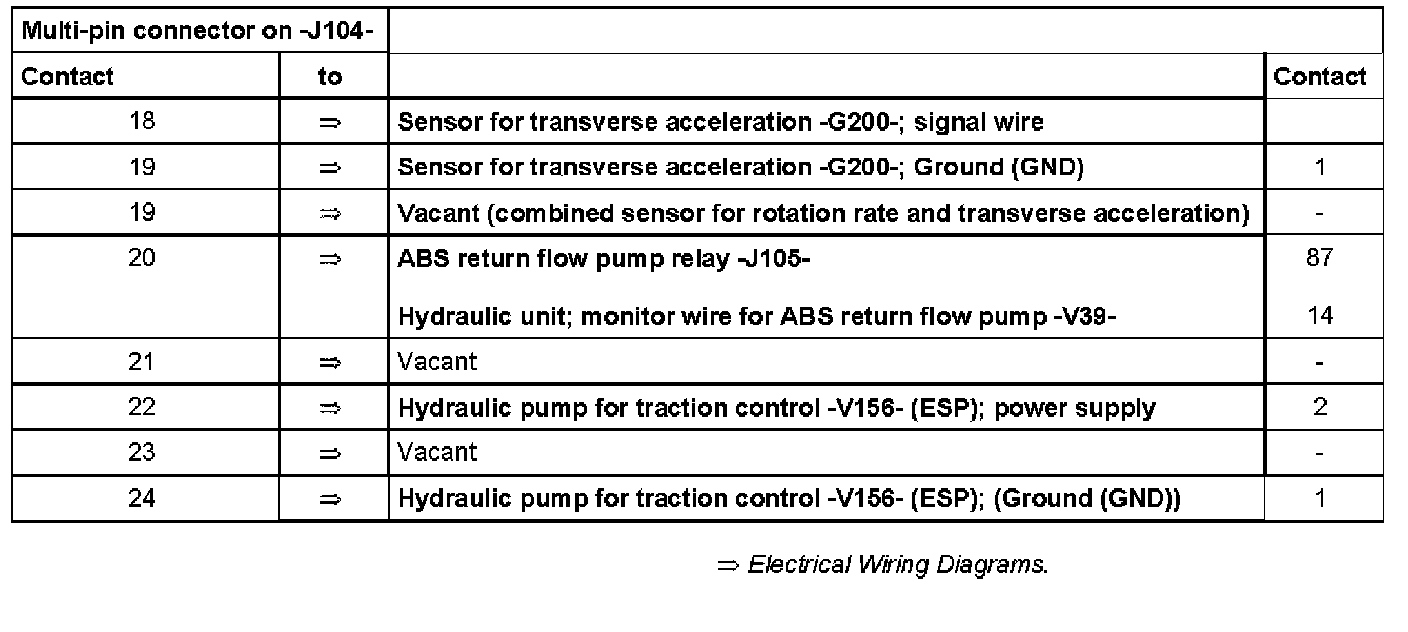

Contacts 18-24:

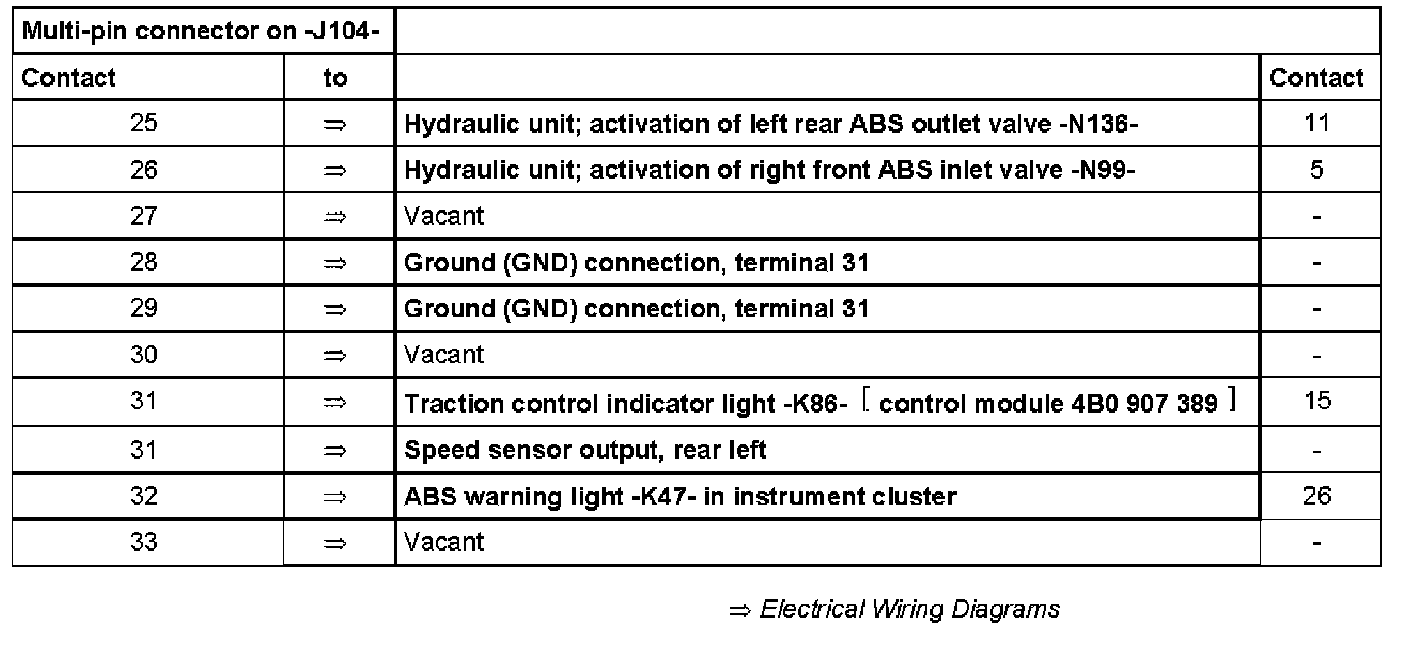

Contacts 25-33:

Contatcs 34-39:

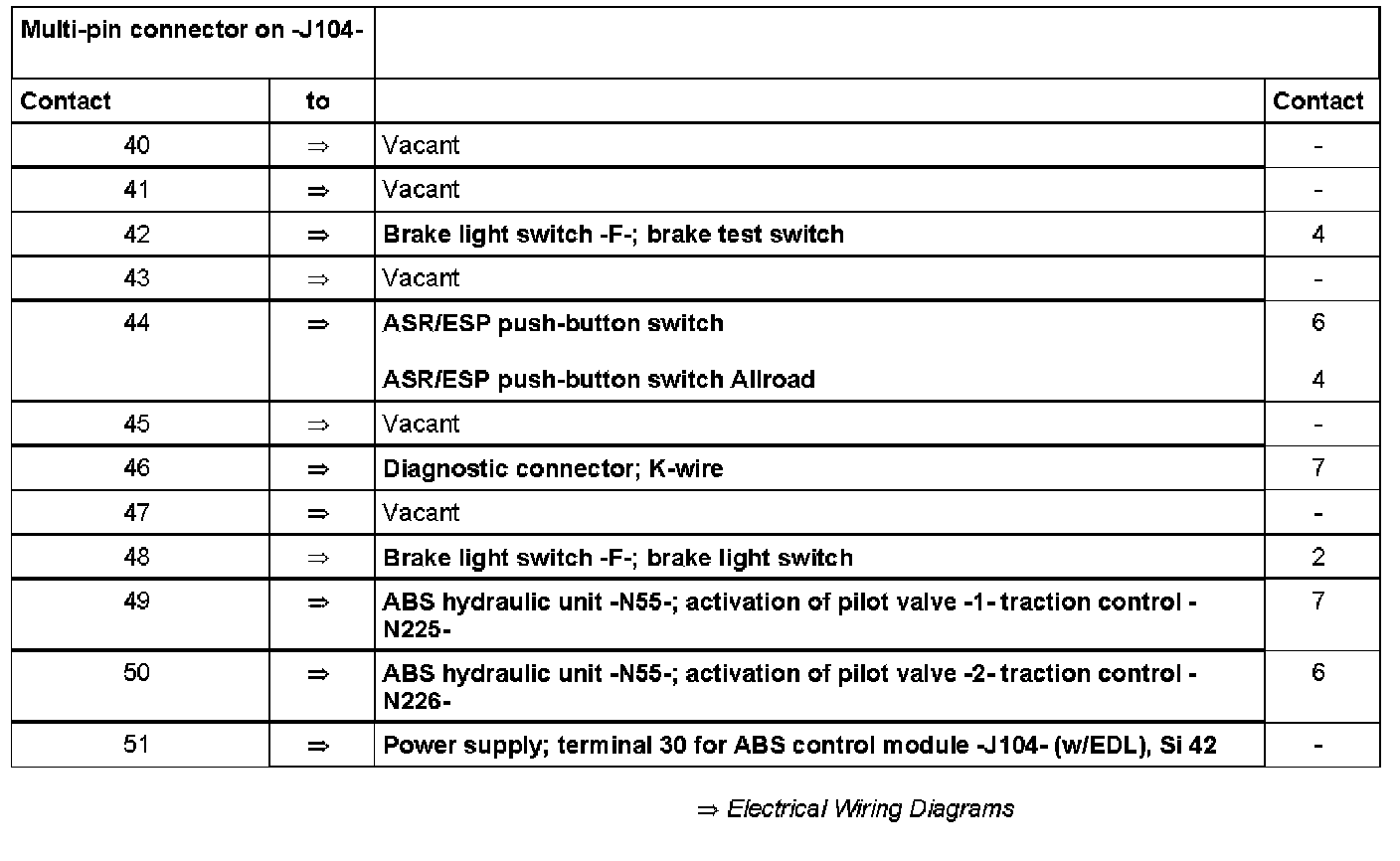

Contacts 41-51:

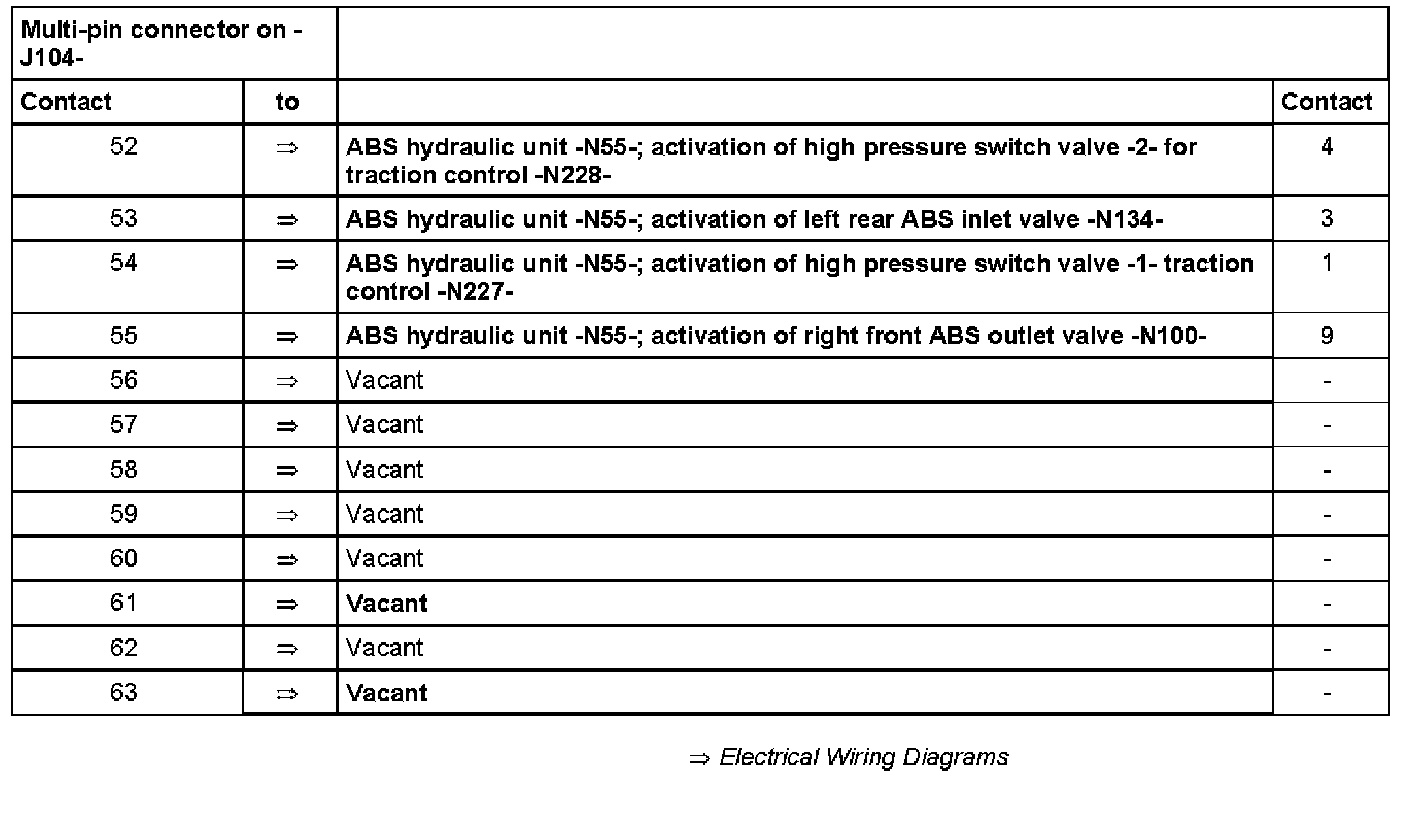

Contacts 52-63:

Contacts 64-69:

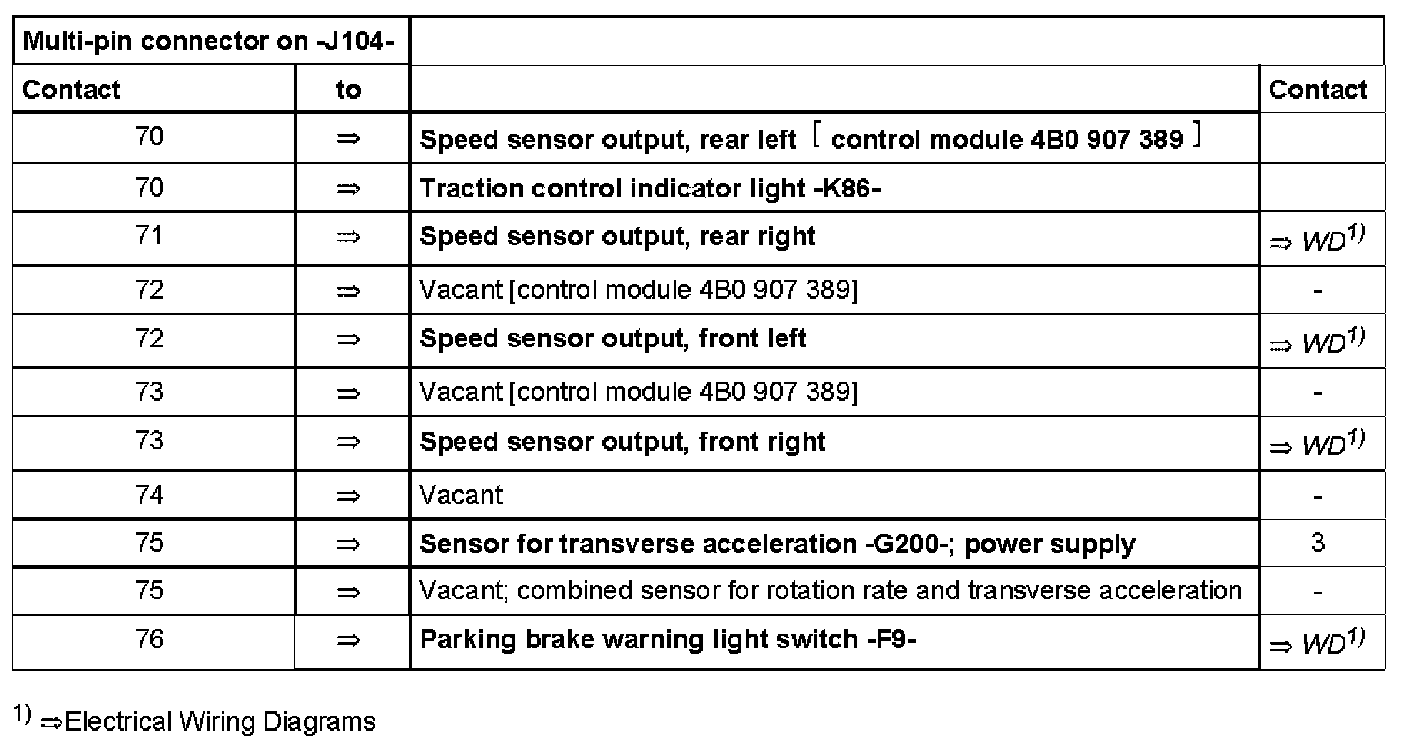

Contacts 70-76:

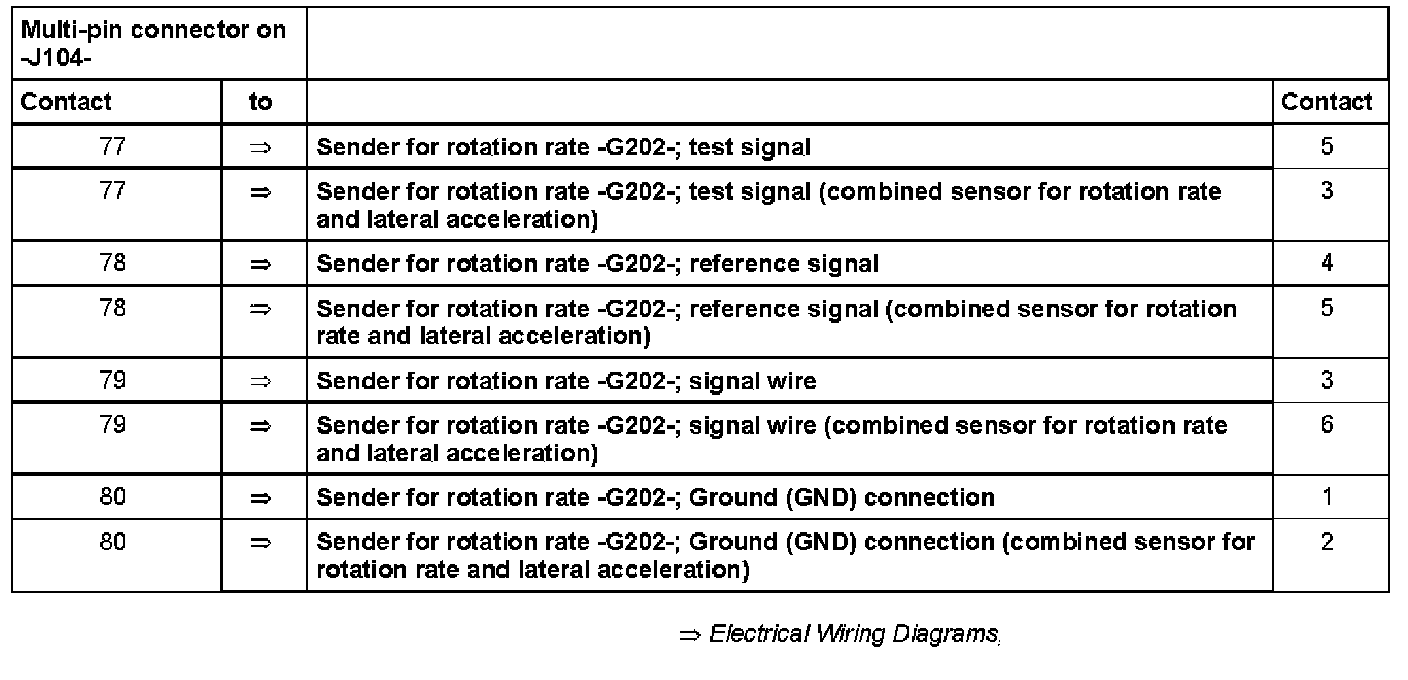

Contacts 77-80:

Contacts 81-88:

Note: For test table

^ The socket designations of the VAG 1598 test box are identical to the contact designations of the ABS control module (w/EDL) -JI04- in the wiring diagram. Incorrect test procedures can cause damage to the system: do not make connections between any contacts other than those listed in the table

Refer to Wiring Diagrams
^ The specified values refer to the readings obtained on VAG 1526 tester and are not necessarily applicable for other test units.
^ If the readings obtained do not match the specifications, carry out the malfunction repair measures in the right-hand part of the table.

Refer to Wiring Diagrams,
^ If the specified values are achieved, also check wiring for intermittent loose contacts and short circuit to positive and Ground (GND). This applies especially to sporadic malfunctions.
^ Use VAG 1594 test leads for checking continuity (bridging leads).
^ If the measured figures only differs slightly from the specifications, clean the sockets and plugs of the testers and test leads (with contact spray G 000 700 04) and repeat the check. Before replacing components, check wiring and connections again, particularly if the specification calls for a resistance reading of less than 10 Ohms.
